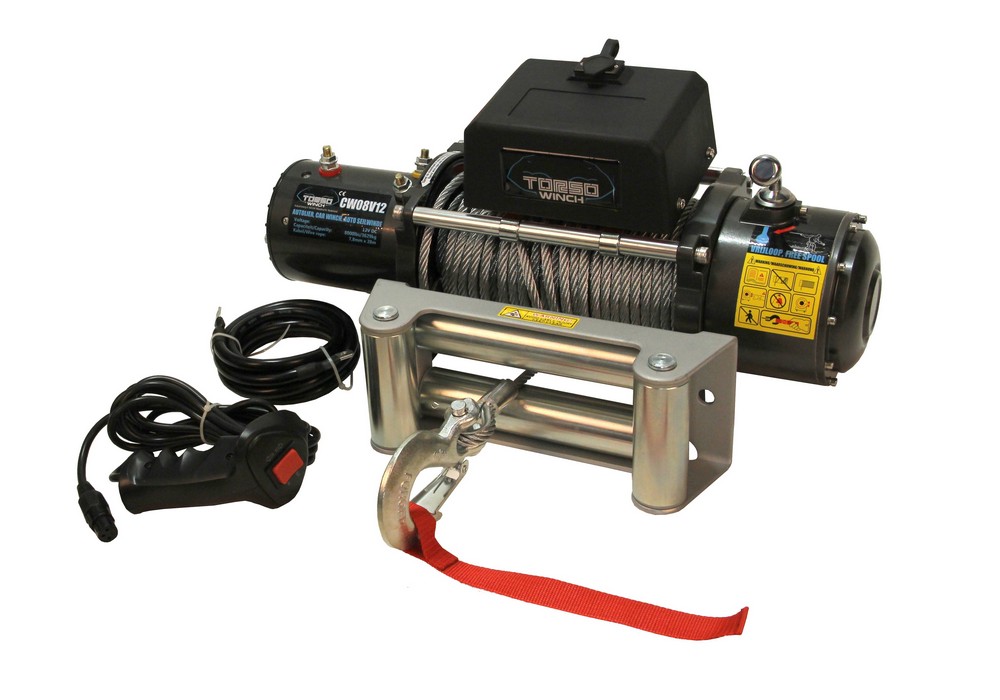

Electric winch 12V 8000lbs

Brand: Torso

Product Code: CW08V12

EAN: 8720028068272

Availability: Available

https://www.valkenpower.com/web/image/product.template/49007/image_1920?unique=9163beb

€ 423.50 Incl. VAT 423.5 EUR € 423.50

€ 350.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Car winch / bumperwinch

    Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
    The winches are suitable for any application within the pulling range and its capacitance.
    Torso winches are standard equiped with the following features:
    - 4way fair load roller, for excellent cable mobility.
    - control switch, with 3mtrs cable length.
    - clevis pinned/latched hook.
    - 1.5mtr battery conection cable .
    - hand operated clutch for free spooling.
    - automatic brake.
    - 1.5t pulley block.

    Wireless remote optional.

    Optional mounting plate, ensures correct mounting of the winch.

    The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

    Technical specifications:
    - 12V single line
    - rated pull = 8000lbs (3600kg)
    - gear reduction ratio = 218:1
    - Serie-wound motor = 12V 5.5HP
    - drum size = 63.5x224mm
    - cable length = 28m
    - cable diameter = 7.8mm
    - line pull = 0kg, 907kg, 1814kg, 2722kg, 3600kg
    - line speed = 7.8mpm, 4.88mpm, 3.63mpm, 2.98mpm, 2.44mpm
    - amp draw = 80A, 130A, 180A, 230A, 290A
    - layer of cable = 1, 2, 3, 4
    - pull per layer = 3600kg, 3012kg, 2540kg, 2177kg
    - mounting dimensions heart to heart = 255 x 115mm

    Product Dimensions:
    Product Length 552 mm
    Product Width 170 mm
    Product Height 214 mm
    Product Weight 33.5 Kg
    Package Dimensions:
    Package Length 610 mm
    Package Width 360 mm
    Package Height 260 mm
    Package Weight 34.50 Kg
