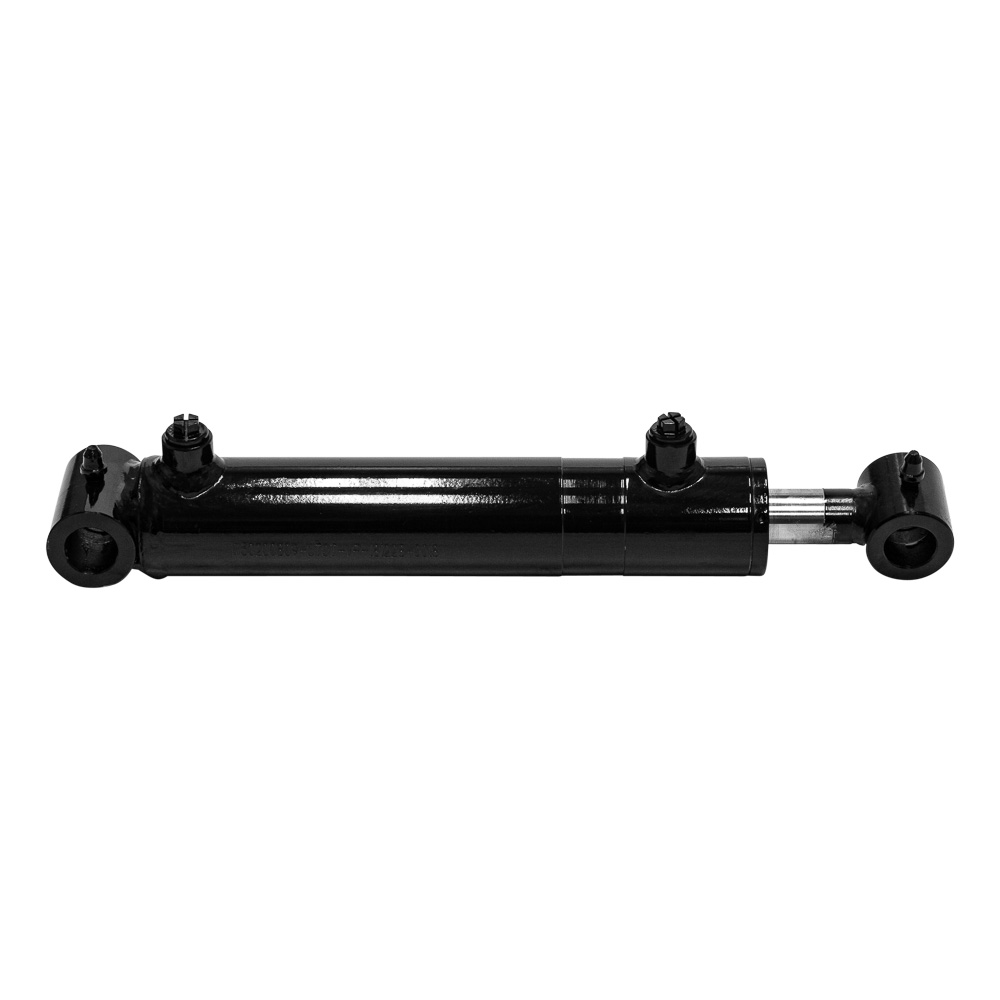

Hydraulic cilinder double action
200bar model that is designed to withstand shock loads up to 400bar
bore = 2'' / 50,8mm
stroke = 10'' / 254mm
max. push load = 4281kg
max. pull load = 2926,5kg
shaft = 1-1/18'' / 28,6mm
retracted length = 18'' / 457,2mm
Product Dimensions
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 6.5 kg |
Package Dimensions
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 7.00 kg |
