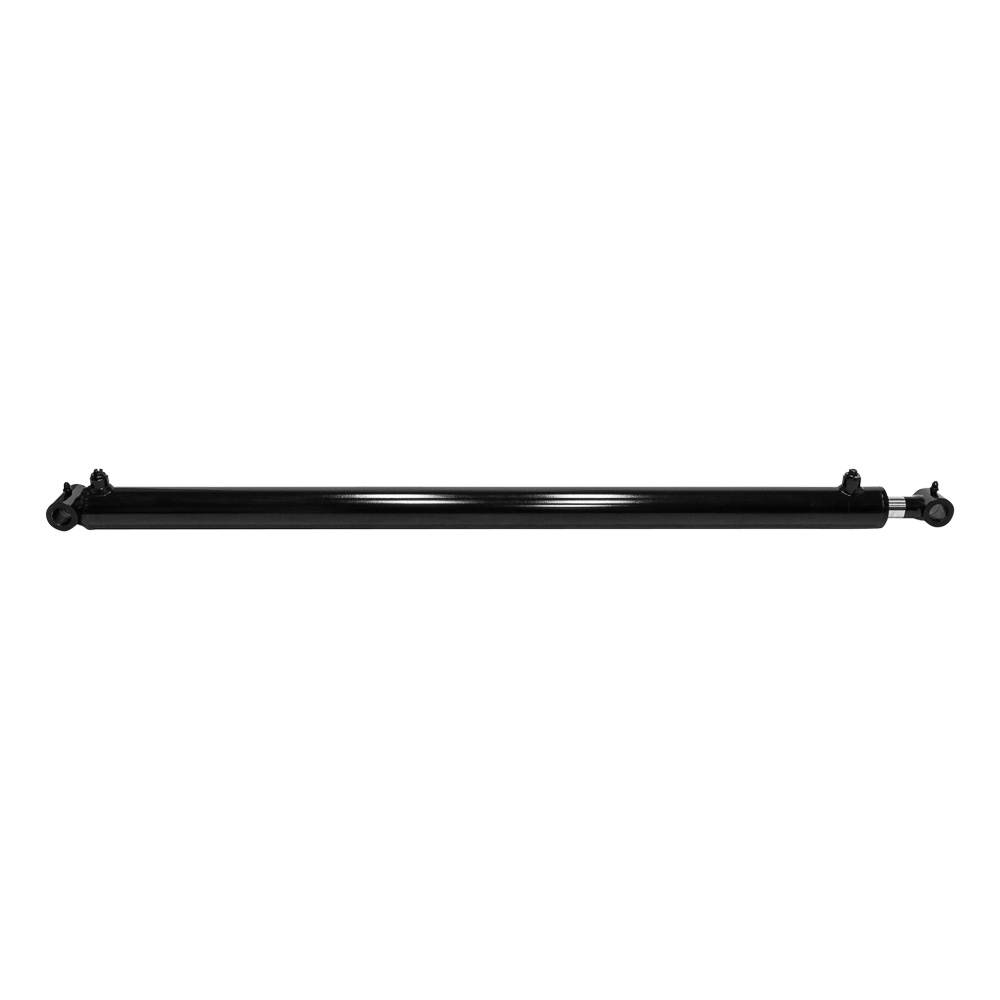

Double acting cylinder hydraulic 762mm

Lifting and hoisting tools / Hydraulic tools / Double acting cylinders / Thickness 2" (50,8mm) Brand: Aspira Aspira

Product Code: CYL2030

EAN: 8720028052844

Availability: Available

€ 193.60 Incl. VAT https://schema.org/InStock 193.6 EUR € 193.60

€ 160.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Description Size and Weight

    Hydraulic cilinder double action

    200bar model that is designed to withstand shock loads up to 400bar

    • bore = 2'' / 50,8mm

    • stroke = 30'' / 762mm

    • max. push load = 4281kg

    • max. pull load = 2608,8kg

    • shaft = 1-1/4'' / 28,6mm

    • retracted length = 38'' / 965,2mm

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 12.2 Kg
    Package Dimensions:
    Package Length 0 mm
    Package Width 0 mm
    Package Height 0 mm
    Package Weight 13.00 Kg
