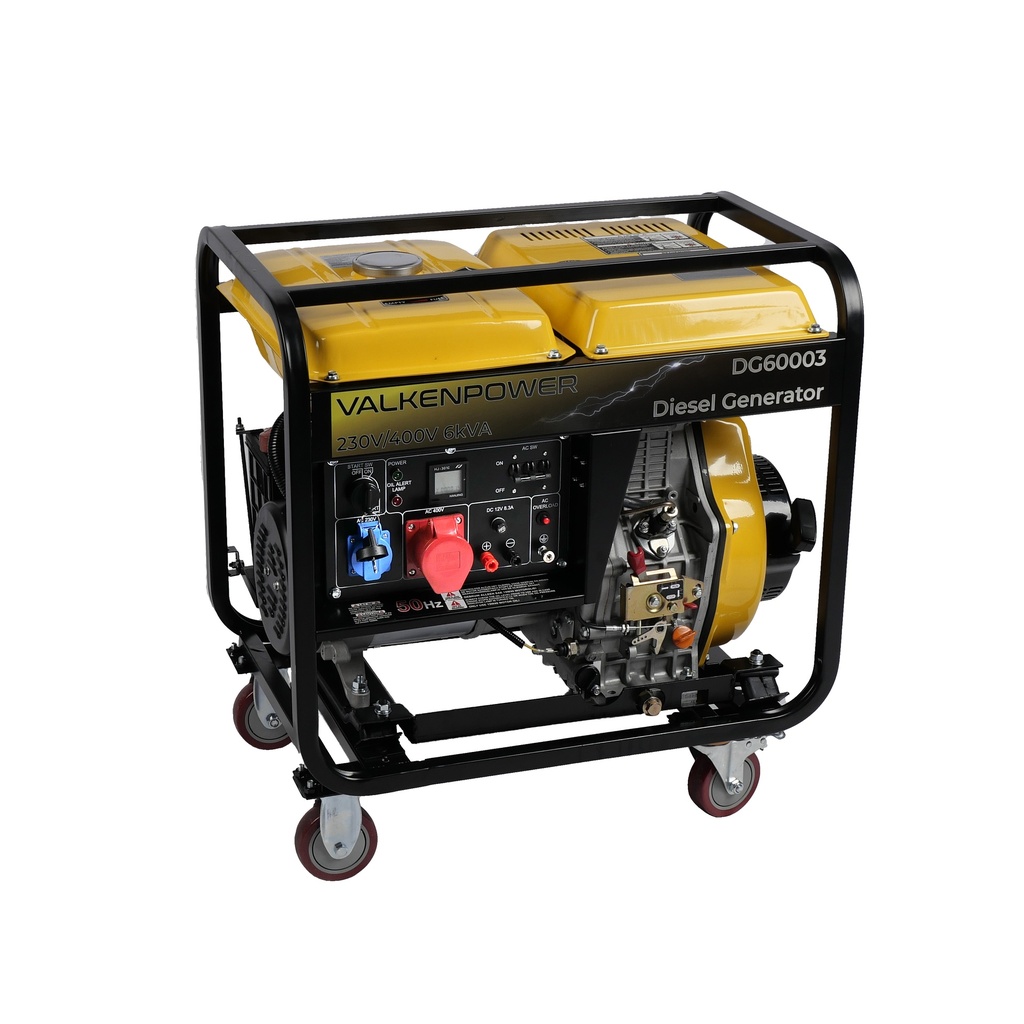

Diesel generator set open type
This diesel generator is equipped with an oil security. This prevents damage to the engine. If the oil level is too low, the engine is automatically switched off. Also, a red light flashes on the control panel.
Standard features:
voltmeter
oil warning light
oil alert system
- electric starter
Specifications
| Frequency | 50 Hz |
| Voltage | 230V / 400V |
| Rated current (230V) | 14 A |
| DC Output | 12V / 8.3A |
| Max. output (230V) | 4 kW |
| Rated output (230V) | 3.6 kW |
| Isonorm | 9001 |
| Motor speed | 3000 rpm |
| Max. output (400V) | 5 kW |
| Rated output (400V) | 4.6 kW |
| Rated current (400V) | 7.2 A per fase |
| Noise level | 85 dB |
| Fuel tank capacity | 12.5L |
| Cylinder capacity | 418cc |
| Starting system | Electric |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 700 mm |
| Product Width | 470 mm |
| Product Height | 600 mm |
| Product Weight | 120.0 Kg |
| Package Dimensions: | |
| Package Length | 715 mm |
| Package Width | 485 mm |
| Package Height | 615 mm |
| Package Weight | 127.00 Kg |
