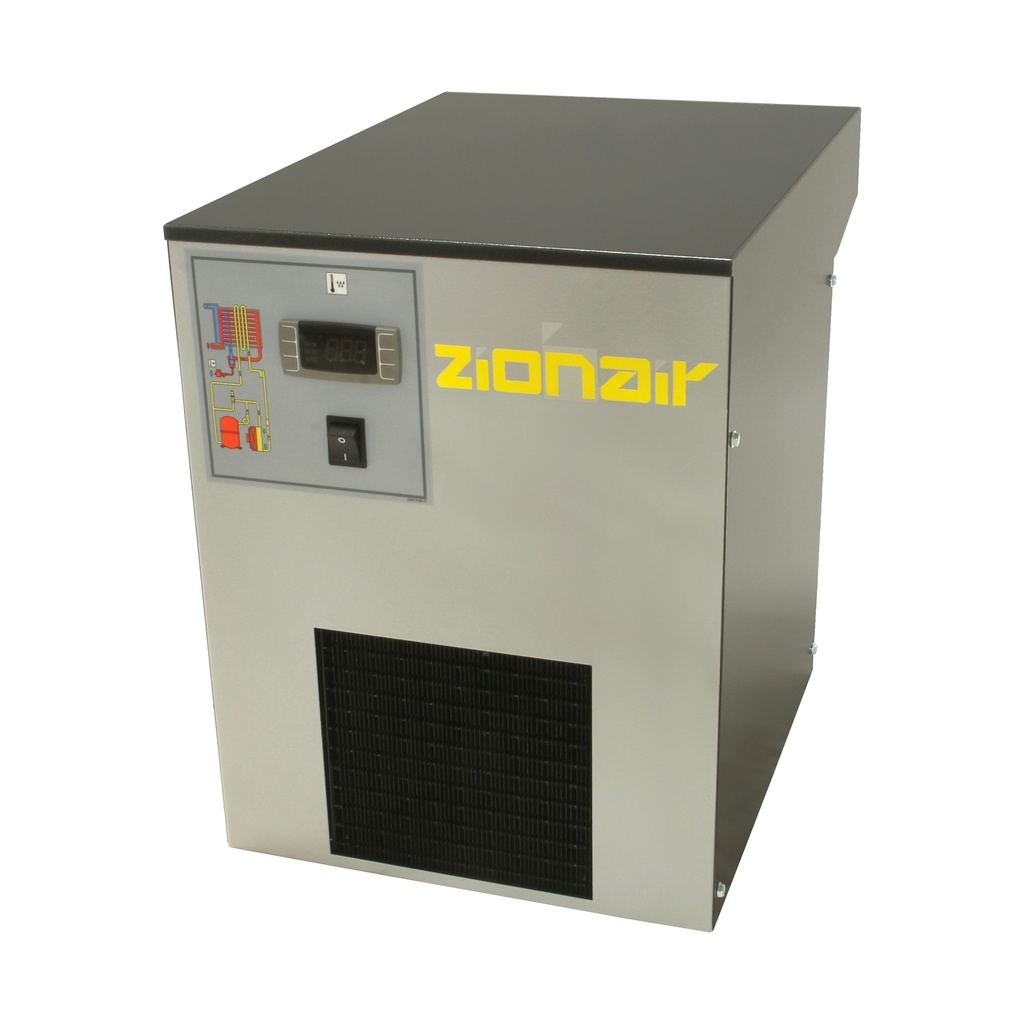

Refrigeration dryer
This ZoinAir professional air dryer is very suitable for drying compressed air for industrial use.
Nowadays, not only the production of a certain amount of compressed air is important, but also the purity of the air. The ZionAir refrigeration dryers offer the right solution for removing condensate for greater efficiency.
Important advantages are:
- longer life span of the equipment due to less wear
- greater productivity and lower maintenance costs thanks to less breakdowns
Technical specifications:
- max. pressure = 16bar
- refrigerant = R134A
- flow rate = 135m3/h / 2250L/min
- power = 385W
- power supply = 230V / 50Hz
- air connections = 3/4'' M gas thread/din
- connecting couplers = 1/2" M gas thread/din
- automatic condensation seperator
- the specified flow rate is realized at an ambient temperature of 25°C and an inlet air temperature of 35°C
Product Dimensions
| Length | 350 mm |
|---|---|
| Width | 500 mm |
| Height | 450 mm |
| Weight | 20.0 kg |
Package Dimensions
| Length | 560 mm |
|---|---|
| Width | 380 mm |
| Height | 630 mm |
| Weight | 25.00 kg |
