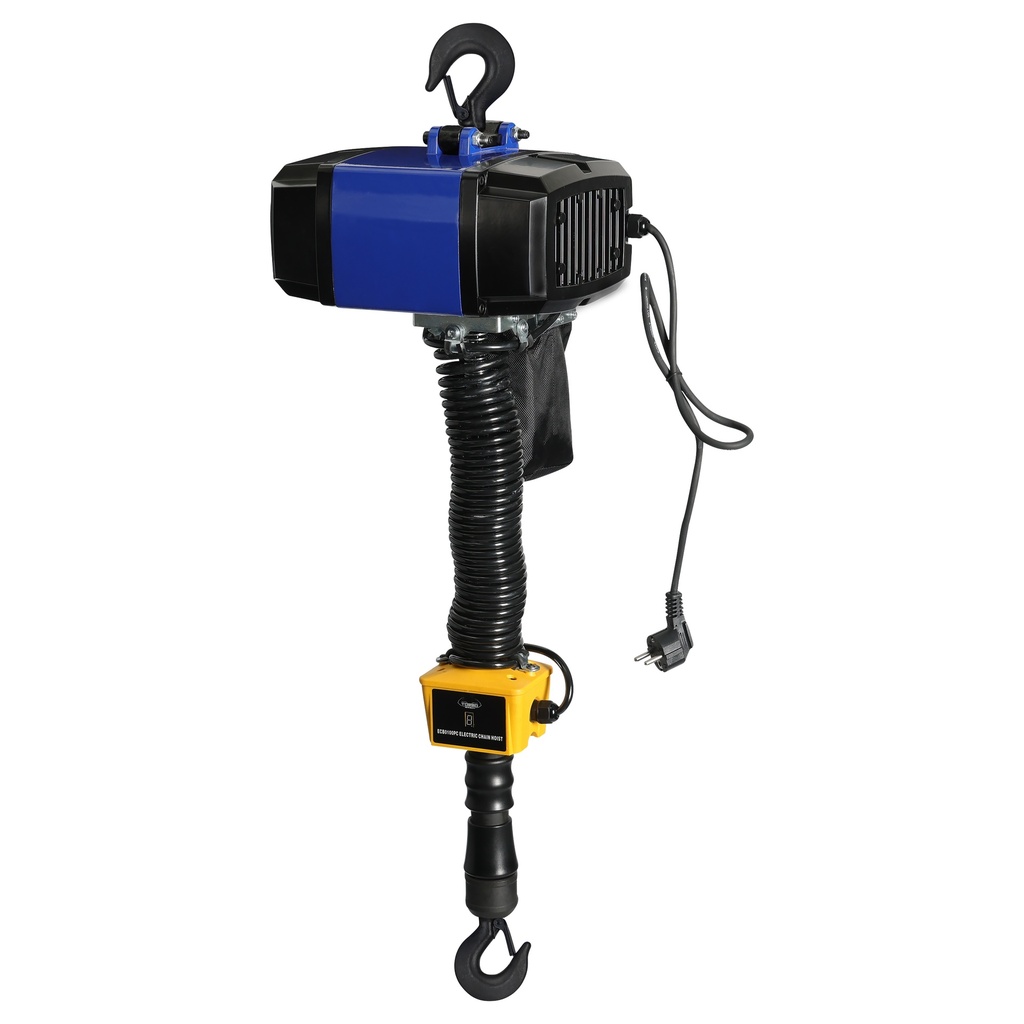

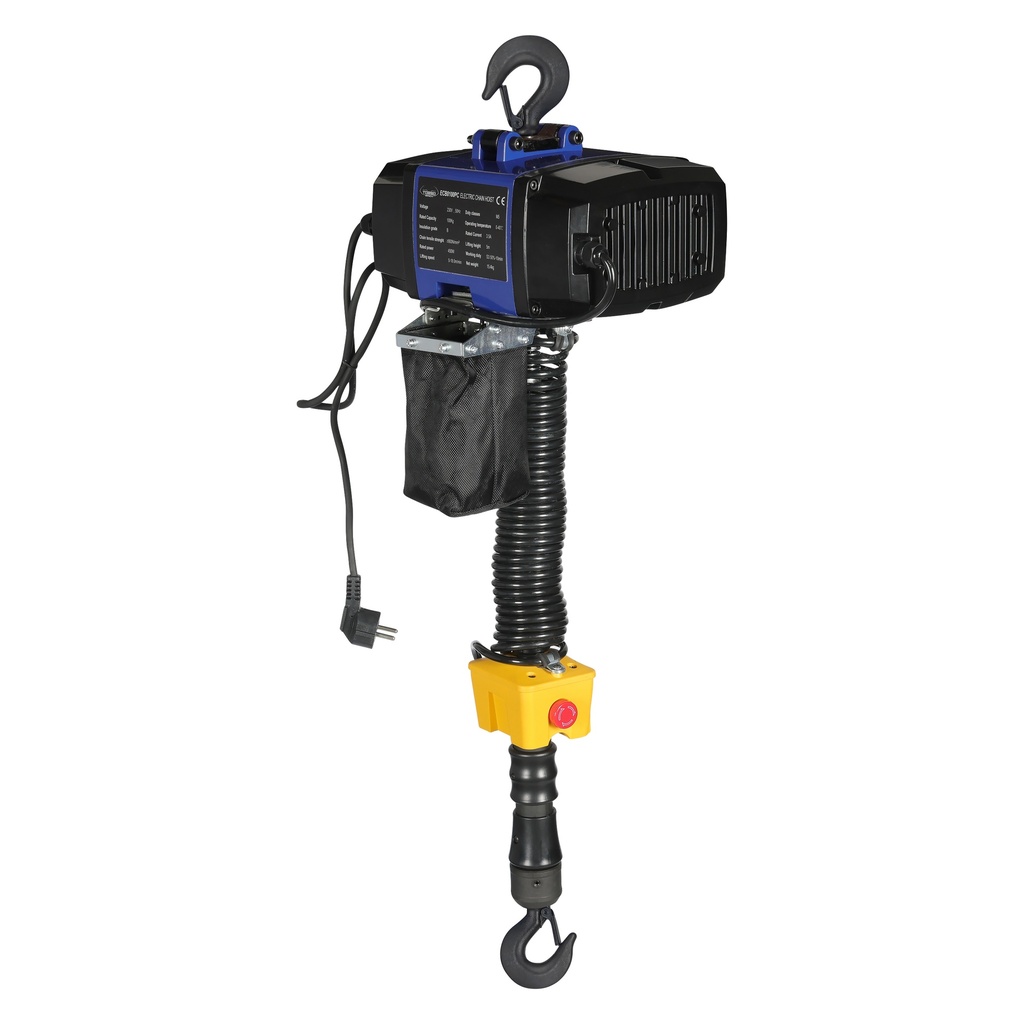

The Torso electric chain hoist 100 kg is characterised by ease of use and precise control. With one-hand control, the operator can handle and guide the load at the same time. The adjustable lifting speed makes it possible to adapt the pace to the type of work, while soft start/stop ensures smooth movement without shocks. This allows materials to be positioned safely and accurately, with less swinging and wear.
Thanks to the compact design with aluminium housing, the electric hoist weighs only 17 kg. Due to its low weight, it is easy to move and can be used in multiple locations. Moreover, it can be easily suspended with the suspension hook.
For safety, the electric hoist is equipped with an emergency stop and overload protection. With a lifting speed of up to 18 metres per minute and a duty cycle of 50 % per 10 minutes, the hoist is suitable for daily use in workshops, warehouses and light production environments.
Main features:
-

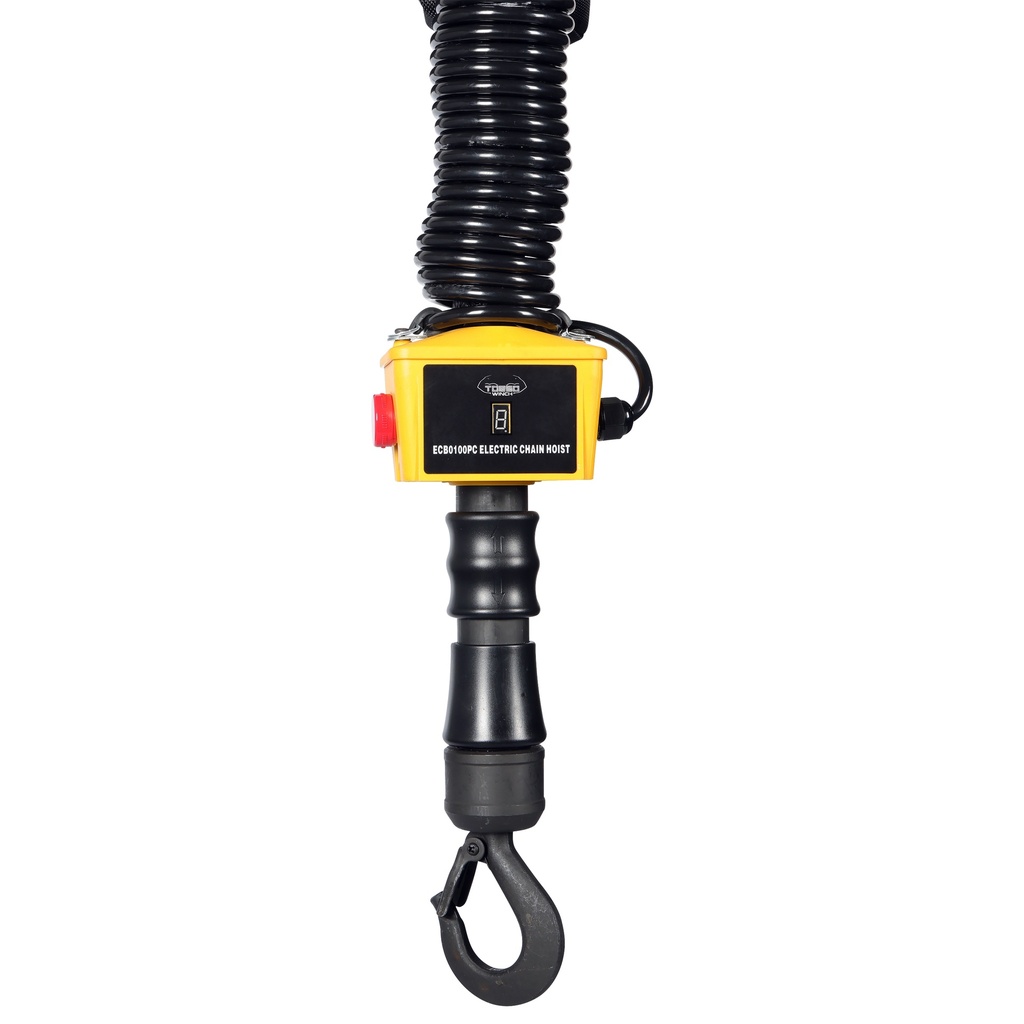

One-hand control
Allows you to operate and guide the load simultaneously
-
Adjustable lifting speed
Offers optimal control when lifting and lowering.
-
Lifting speed up to 18 m/min
Fast and efficient lifting.
-
Lightweight 17 kg
Easy to move or hang.
-
Emergency stop and overload protection
Increases safety during operation.
Specifications
| Lifting capacity | 100 kg |
| Lifting height max. | 5 m |
| Voltage | 230V / 50 Hz |
| Rated current (230V) | 3.5 A |
| Chain tensile strength | ≥900 N/mm² |
| Power | 450 W |
| Lifting speed loaded | 0 - 18.0 m/min. |
| Operating temperature | 0°C ~ 40°C |
| Working duty | S3 50% - 10 min. |
| Duty class | M5 |
| IP grade | IP54 |
| Insulation class | B |
| Product Dimensions: | |
|---|---|
| Product Length | 495 mm |
| Product Width | 396 mm |
| Product Height | 337 mm |
| Product Weight | 15.6 Kg |
| Package Dimensions: | |
| Package Length | 495 mm |
| Package Width | 396 mm |
| Package Height | 337 mm |
| Package Weight | 17.10 Kg |
