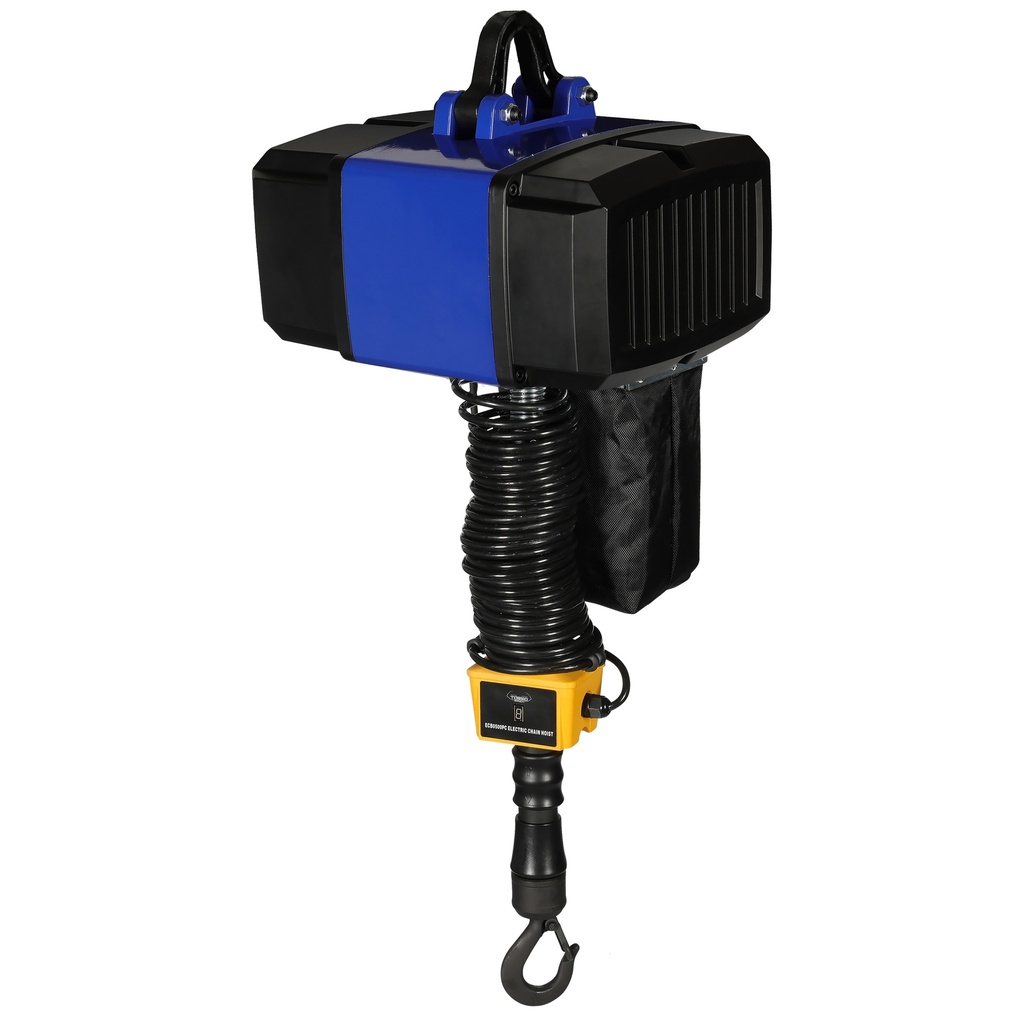

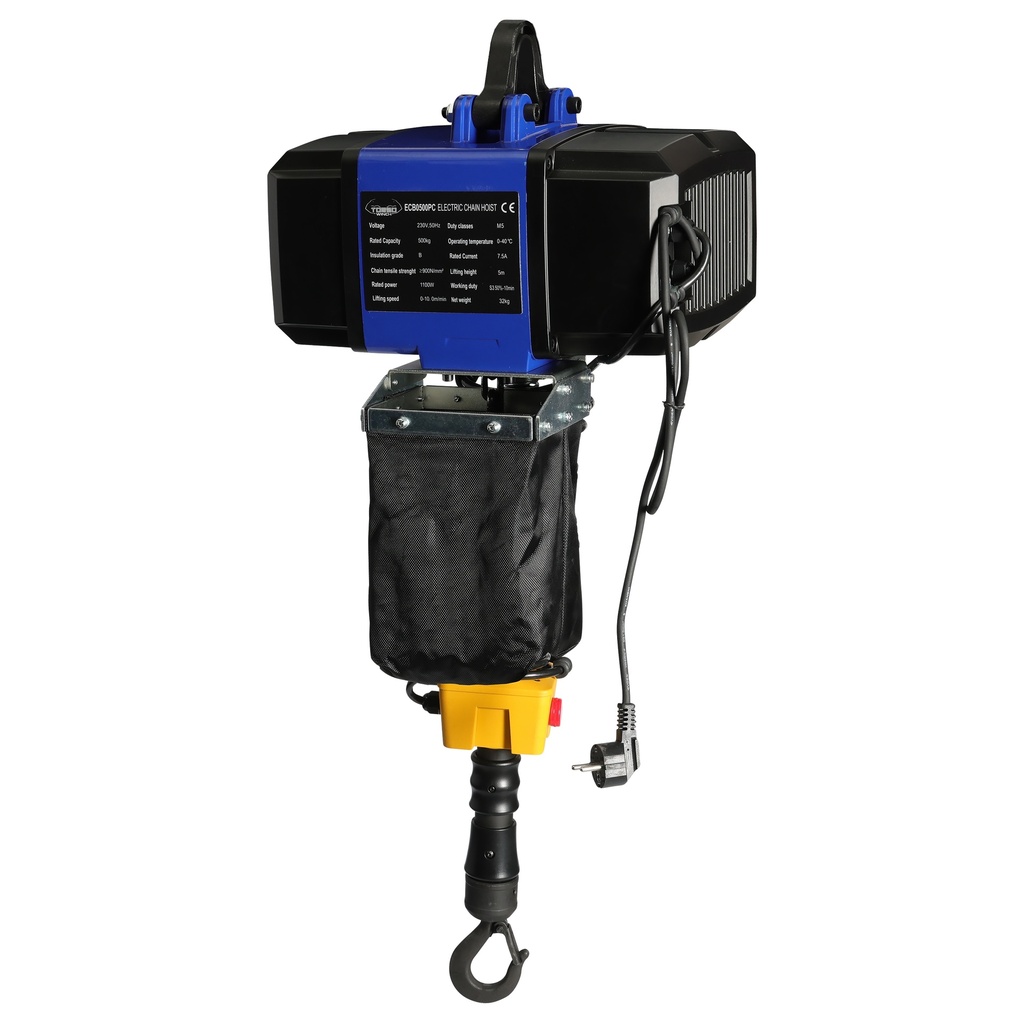

The Torso electric chain hoist 500 kg combines power with precision in operation. With one-hand control, the operator can lift and guide the load at the same time. The adjustable lifting speed allows the user to match the pace to the type of work, while soft start/stop ensures smooth motion without jerks. This enables heavy materials to be positioned safely and accurately with reduced swinging and wear.
Thanks to its strong yet compact design with an aluminium housing, the chain hoist weighs only 32 kg. It is easy to move and quickly suspended using the suspension hook, ideal for flexible use in workshops or warehouses.
For safety, the electric hoist is equipped with an emergency stop and overload protection. With a lifting speed of up to 10 metres per minute, a lifting height of 5 metres and a duty cycle of 50% per 10 minutes (S3), this hoist is suitable for intensive daily use in workshops, warehouses and light production environments.
Main features:
-

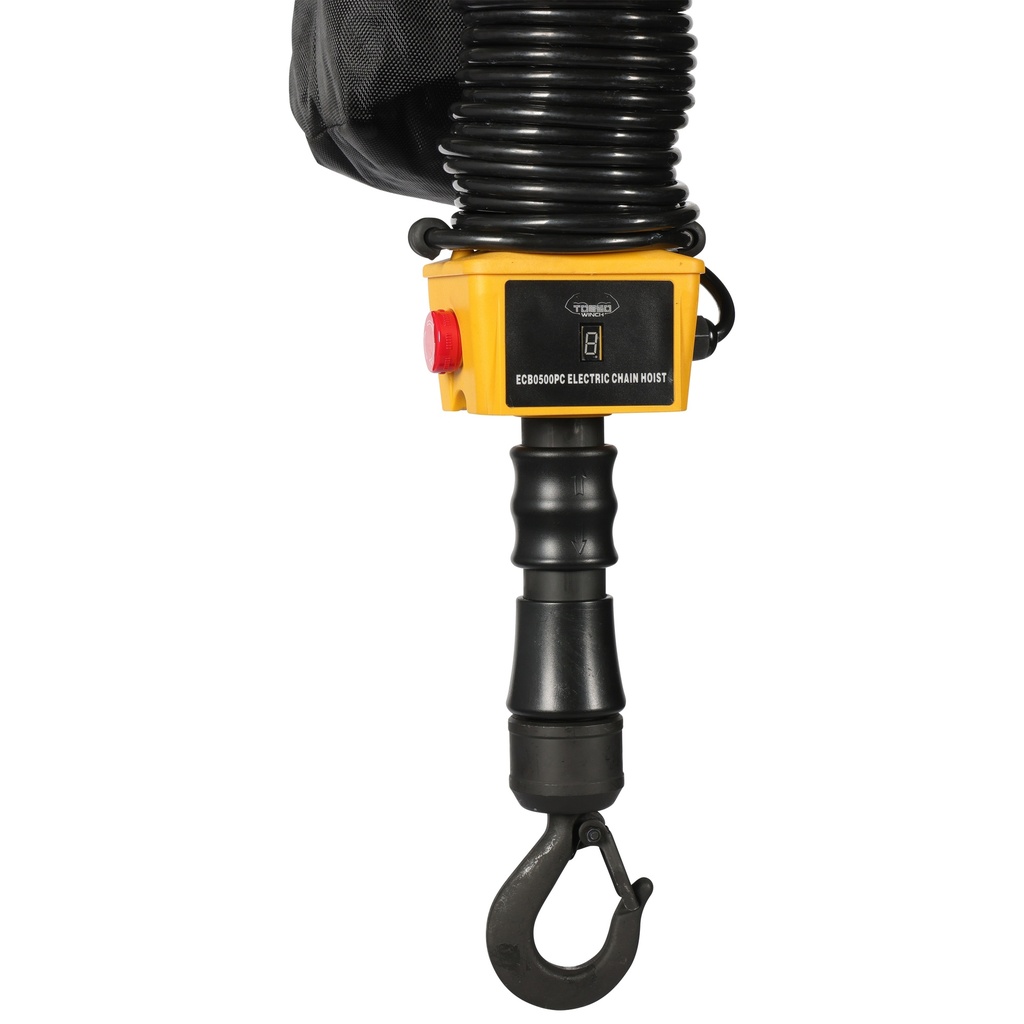

One-hand control
Allows you to operate and guide the load simultaneously
-
Adjustable lifting speed
Offers optimal control when lifting and lowering.
-
Lifting capacity 500 kg
Powerful and reliable for heavier loads.
-
Lifting speed up to 10 m/min
Efficient lifting with precision.
-
Emergency stop and overload protection
Increases safety during operation.
Specifications
| Voltage | 230V / 50 Hz |
| Lifting height max. | 5 m |
| Lifting capacity | 500 kg |
| Chain tensile strength | ≥900 N/mm² |
| Power | 1100 W |
| Lifting speed loaded | 0 - 10 m/min. |
| Operating temperature | 0°C ~ 40°C |
| Rated current (230V) | 7.5 A |
| Duty class | M5 |
| Work rate | S3 50% - 10 min. |
| Insulation class | B |
| IP grade | IP54 |
| Product Dimensions: | |
|---|---|
| Product Length | 370 mm |
| Product Width | 270 mm |
| Product Height | 520 mm |
| Product Weight | 32.0 Kg |
| Package Dimensions: | |
| Package Length | 595 mm |
| Package Width | 516 mm |
| Package Height | 417 mm |
| Package Weight | 34.50 Kg |
