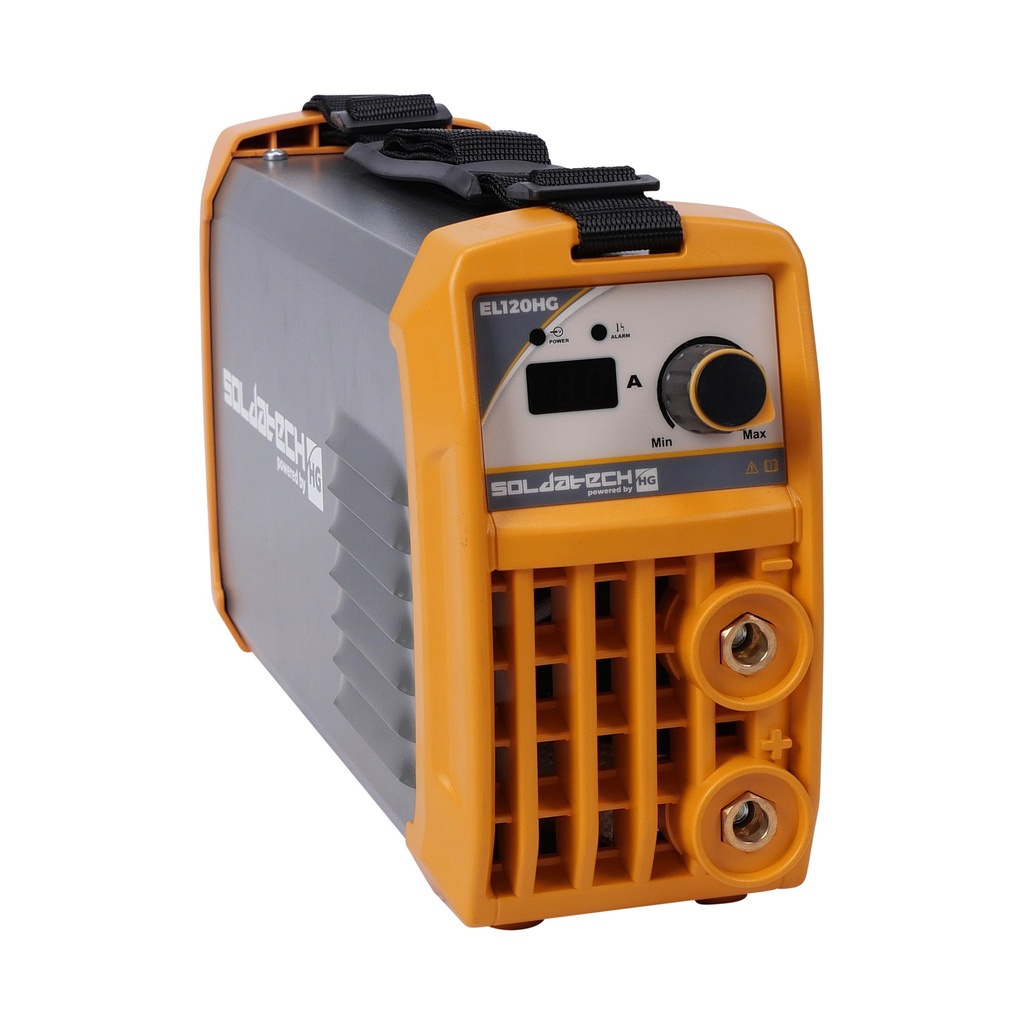

Electrode welding machine 120A

Brand: Soldatech

Product Code: EL120HG

EAN: 8720028090358

Availability: Available

https://www.valkenpower.com/web/image/product.template/59747/image_1920?unique=95f32fa

€ 139.15 Incl. VAT 139.15 EUR € 139.15

€ 115.00

  • Voltage
  • Frequency
  • Circuit breaker
  • Input power
  • No load Voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Welding electrodes
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Electrode welding inverter / welder / welding machine / welding device

This Soldatechpowered by HG electrode welding machine is very suitable for welding at any location because of its compact, light, manageable and powerful design.

The easily adjustable welding current ensures that the EL120HG can be easily used for welding jobs with different materials and thicknesses.

The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece.

The modern IGBT inverter technology not only ensures that the EL120HG delivers long-lasting performance with more power, but it also makes the device lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).

Each EL120HG comes standard with:

  • Electrode torch with 1.8m 10mm² cable

  • Welding ground clamp with 1.2m 10mm² cable

  • Neoprene power with 2m 3x1.5mm² cable

  • European dinse couplers 9mm

Technical specifications:

  • voltage = 230V - 1 phase
  • frequency = 50/60Hz
  • crcuit breaker = 16A B-char
  • input power = 5.06kVA
  • no load voltage = 68V
  • duty cycle (at 20°C ambient temperature) = 30% - 120A
  • duty cycle (at 40°C ambient temperature) = 15% - 120A
  • welding current range = 15 - 120A
  • welding electrodes = 1.6 - 2.6mm
  • protection class = IP21S
  • dimensions =  330 x 102 x 176mm
  • weight = 3.5kg
Product Dimensions:
Product Length 330 mm
Product Width 102 mm
Product Height 176 mm
Product Weight 3.5 Kg
Package Dimensions:
Package Length 363 mm
Package Width 185 mm
Package Height 230 mm
Package Weight 5.00 Kg

  • Infinitely adjustable

  • Very compact and lightweight

  • Digital display

  • ABS shock resistant housing

  • 5 year warranty

Specifications

Voltage 230V - 1 Phase
Frequency 50/60Hz
Circuit breaker 16A B-char
Input power 5.06kVA
No load Voltage 68V
Duty cycle @20C 30% - 120A
Duty cycle @40C 15% - 120A
Welding current range 15 - 120A
Welding electrodes 1.6 - 2.5m
Protection class IP21S
