Electrode welding machine 200A

Welding and cutting equipment / Electrode welding machines Brand: Soldatech Soldatech

Product Code: EL200HG

EAN: 8720028090372

Availability: Available

€ 296.45 Incl. VAT https://schema.org/InStock 296.45 EUR € 296.45

€ 225.00

  • Voltage
  • Frequency
  • Input power
  • Circuit breaker
  • No load Voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Welding electrodes
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Electrode welding inverter / welder / welding machine / welding device

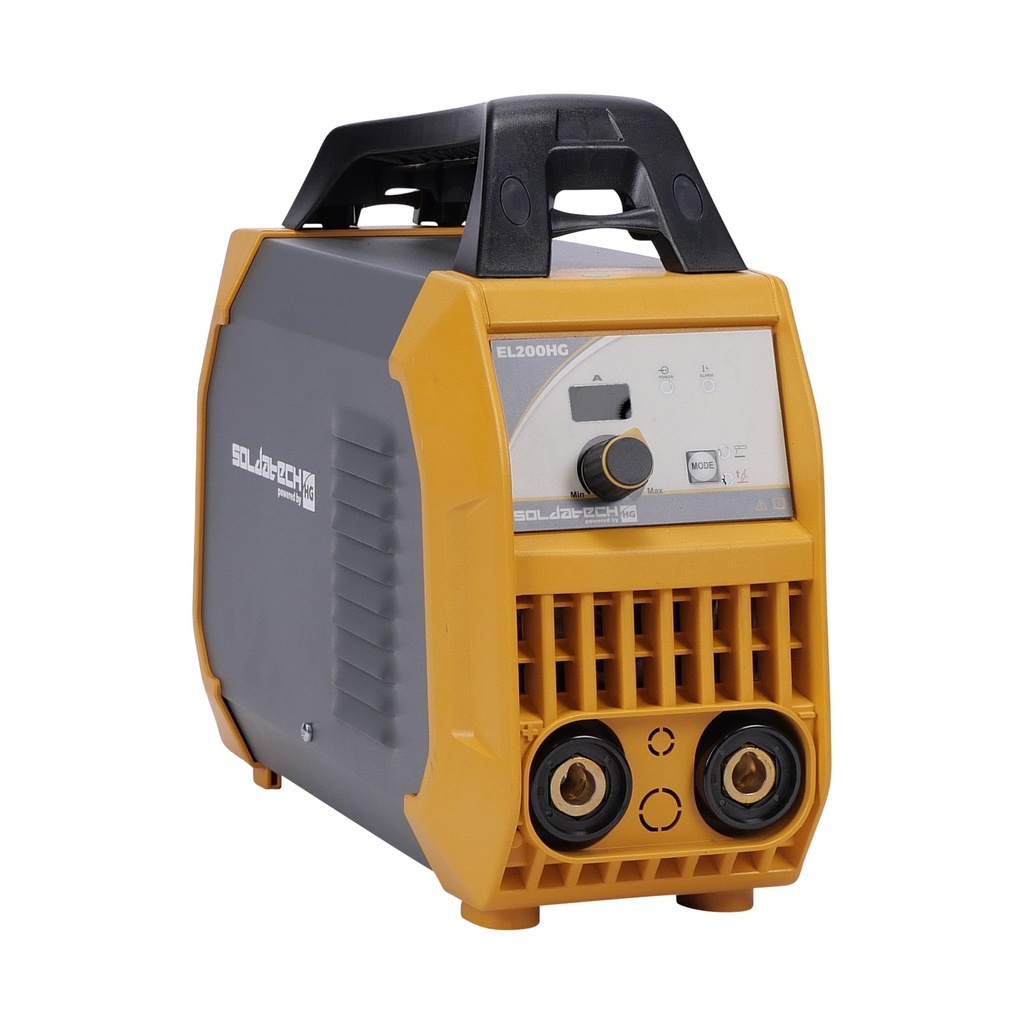

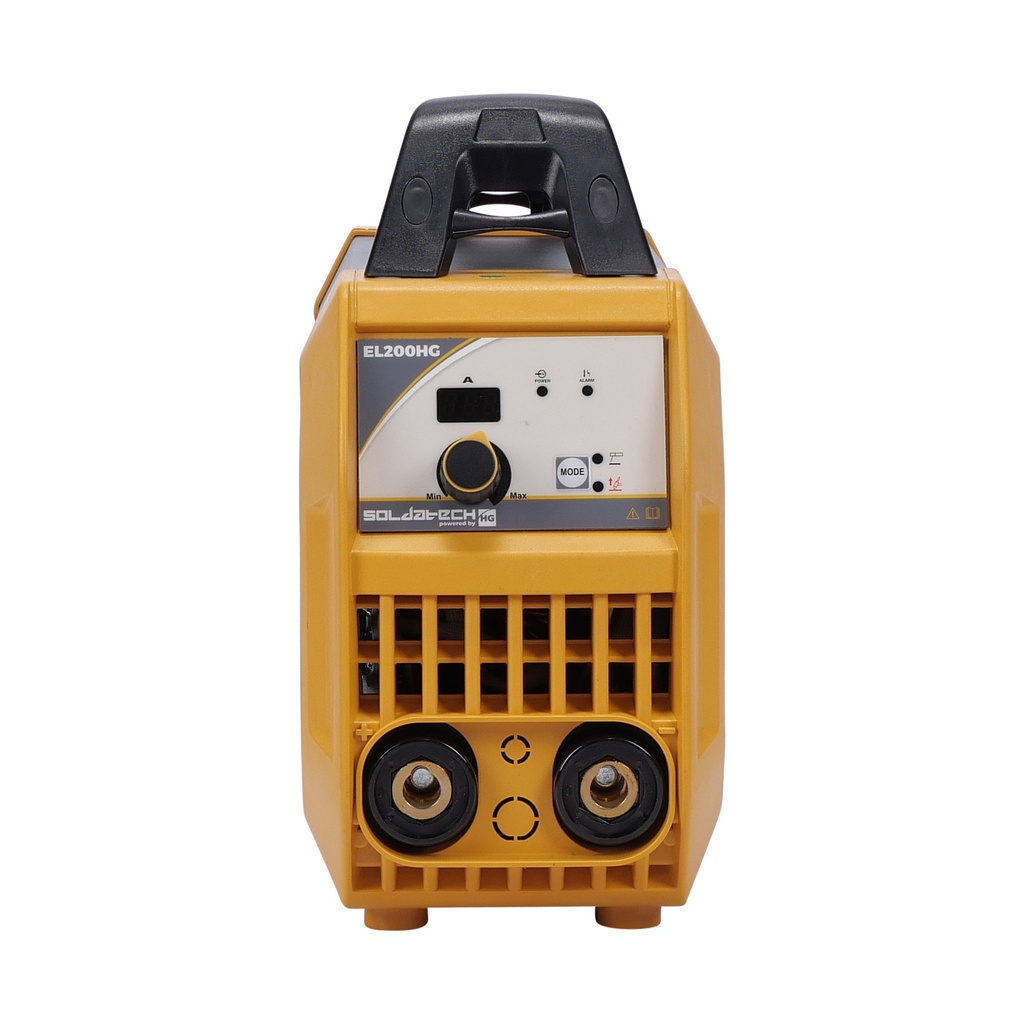

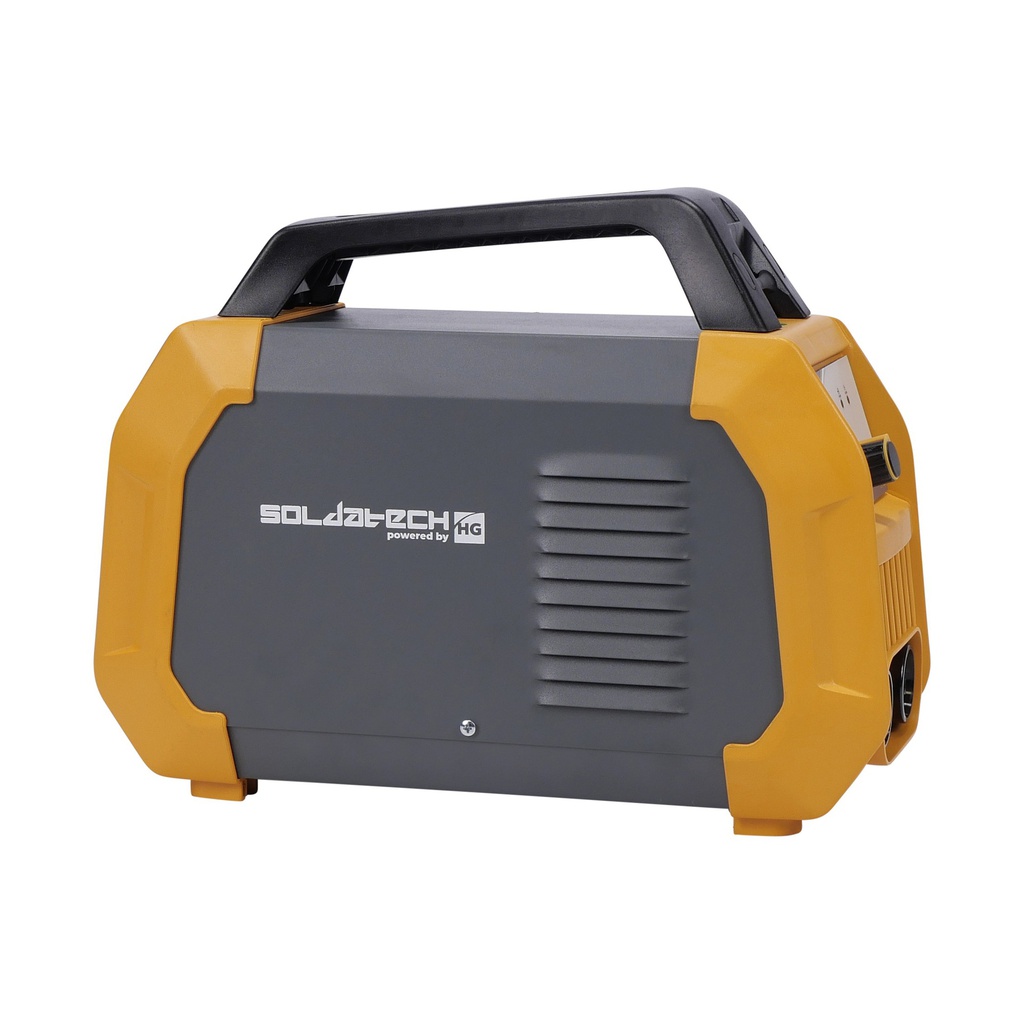

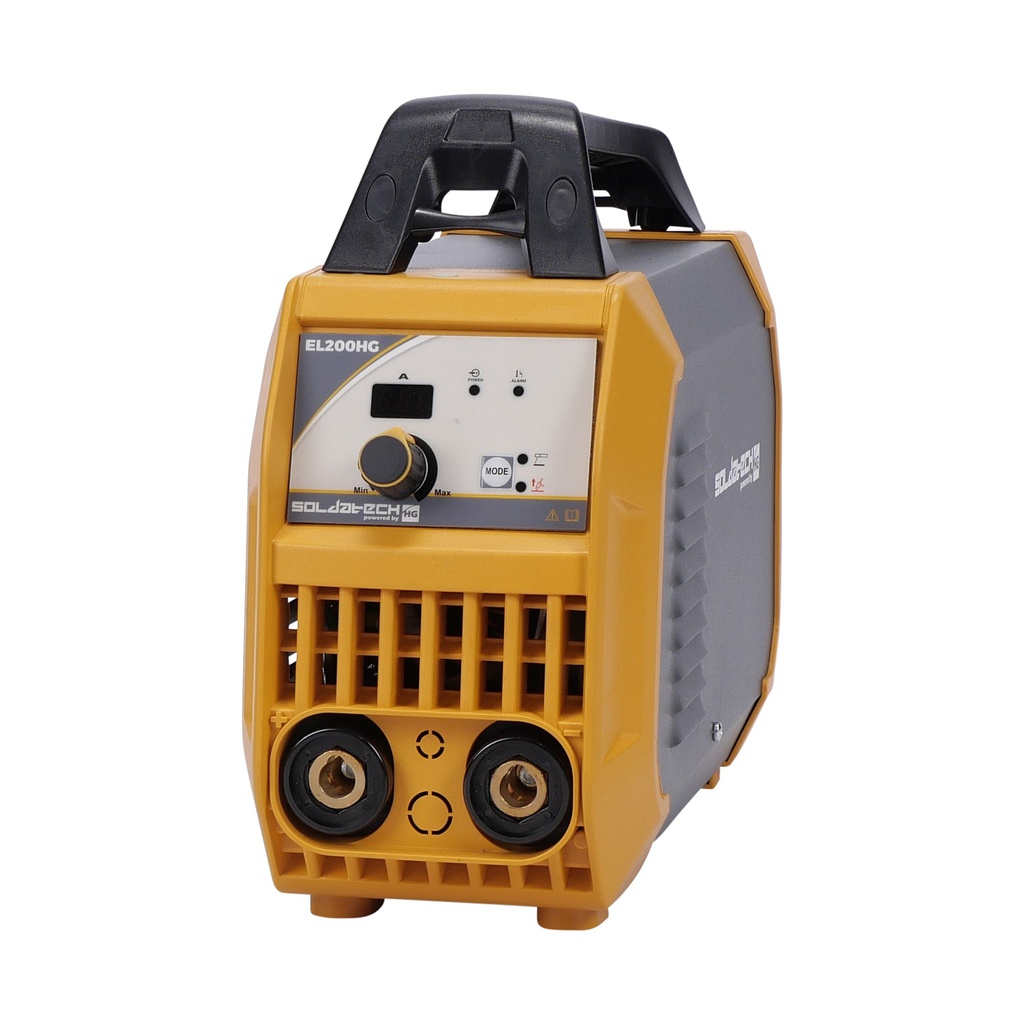

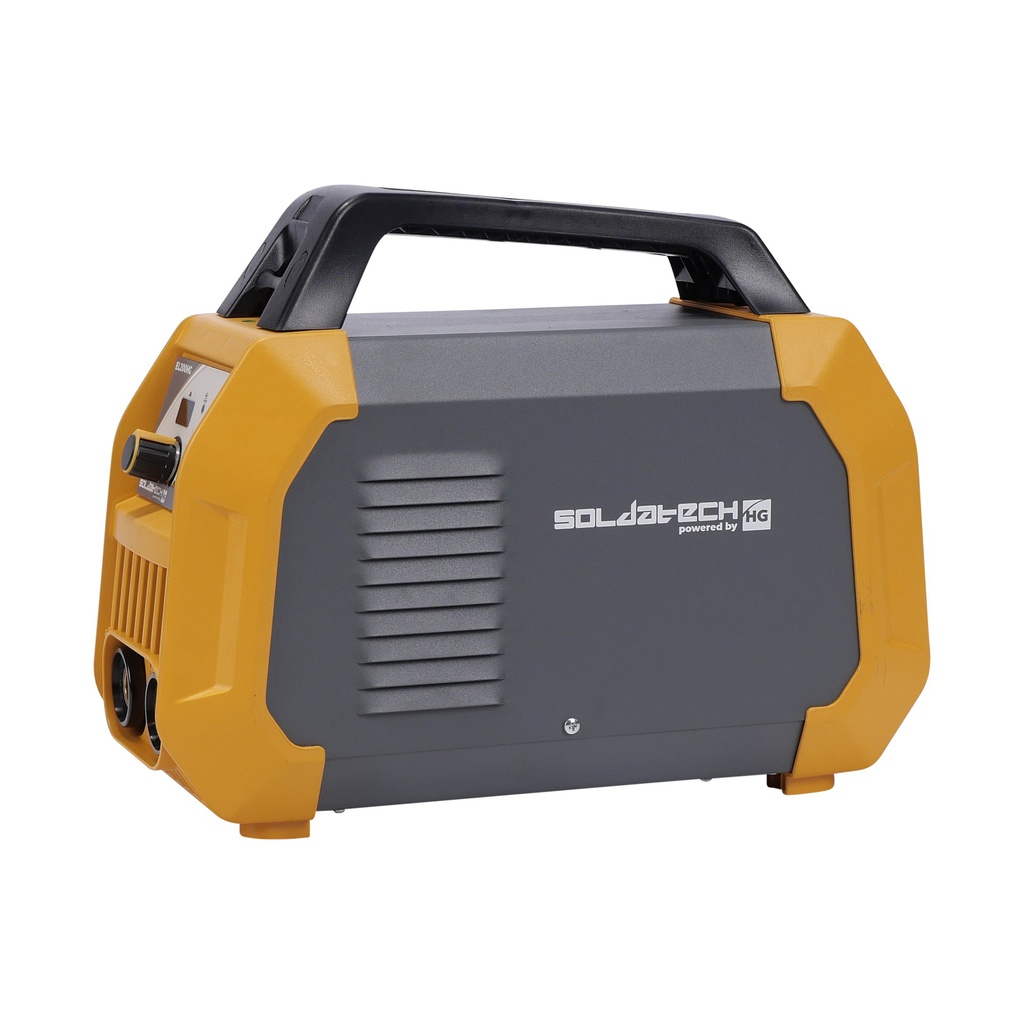

This Soldatechpowered by HG electrode welding machine is very suitable for welding at any location because of its compact, light, manageable and powerful design.

The easily adjustable welding current ensures that the EL200HG can be used quickly for welding jobs with different materials and thicknesses. Lift TIG welding is also possible with this device, but a different torch is then required, naturally.

The hot-start / anti-stick function quickly increases the welding current so that the electrode does not stick to the workpiece. The device is also equipped with an ARC force function; this sets the weld depth.

The modern IGBT inverter technology not only ensures that the EL200HG delivers long-lasting performance with more power, but it also makes the device lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for welding carbon steel, low alloy steel and stainless steel. Welds perfectly with rutile (E 6013) and basic (E 7018).

Each EL200HG comes standard with:

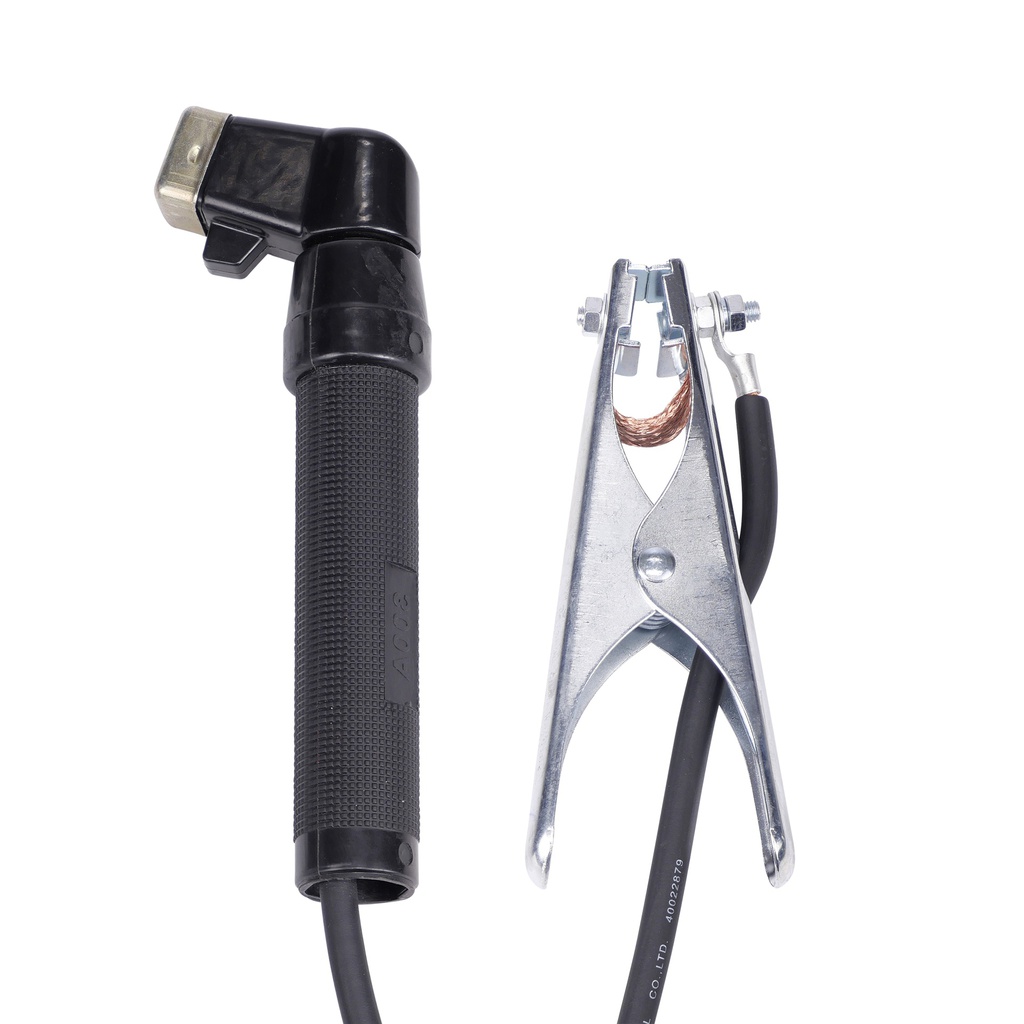

  • Twistlock electrode torch with 3m 16mm² cable

  • Welding ground clamp with 2m 16mm² cable

  • Neoprene power with 2m 3x2.5mm² cable

  • European dinse couplers 13mm

  • Sturdy storage case

Technical specifications:

  • voltage = 230V - 1 phase

  • frequency = 50/60Hz

  • circuit breaker = 16A C-char

  • input power = 8.8kVA

  • no load voltage = 82V

  • duty cycle (at 20°C ambient temperature) = 40% - 200A

  • duty cycle (at 40°C ambient temperature) = 15% - 200A

  • welding current range MMA = 41 - 200A
  • welding current range lift TIG = 15 - 200A
  • welding electrodes = 1.6 - 4.0mm
  • protection class = IP21S

  • dimensions = 400 x 154 x 300mm

  • weight = 5.8kg

Product Dimensions:
Product Length 400 mm
Product Width 154 mm
Product Height 300 mm
Product Weight 5.8 Kg
Package Dimensions:
Package Length 530 mm
Package Width 185 mm
Package Height 415 mm
Package Weight 10.60 Kg

  • High quality Twistlock electrode holder

  • Lift-TIG function

  • Infinitely adjustable

  • Sturdy storage case

  • 5 years warranty

Specifications

Voltage 230V - 1 Phase
Frequency 50/60 Hz
Input power 8.8kVA
Circuit breaker 16A C-char
No load Voltage 82V
Duty cycle @20C 40% - 200A
Duty cycle @40C 15% - 200A
Welding current range MMA 41-200A / TIG 15 - 200A
Welding electrodes 1.6 - 4.0mm
Protection class IP21S
