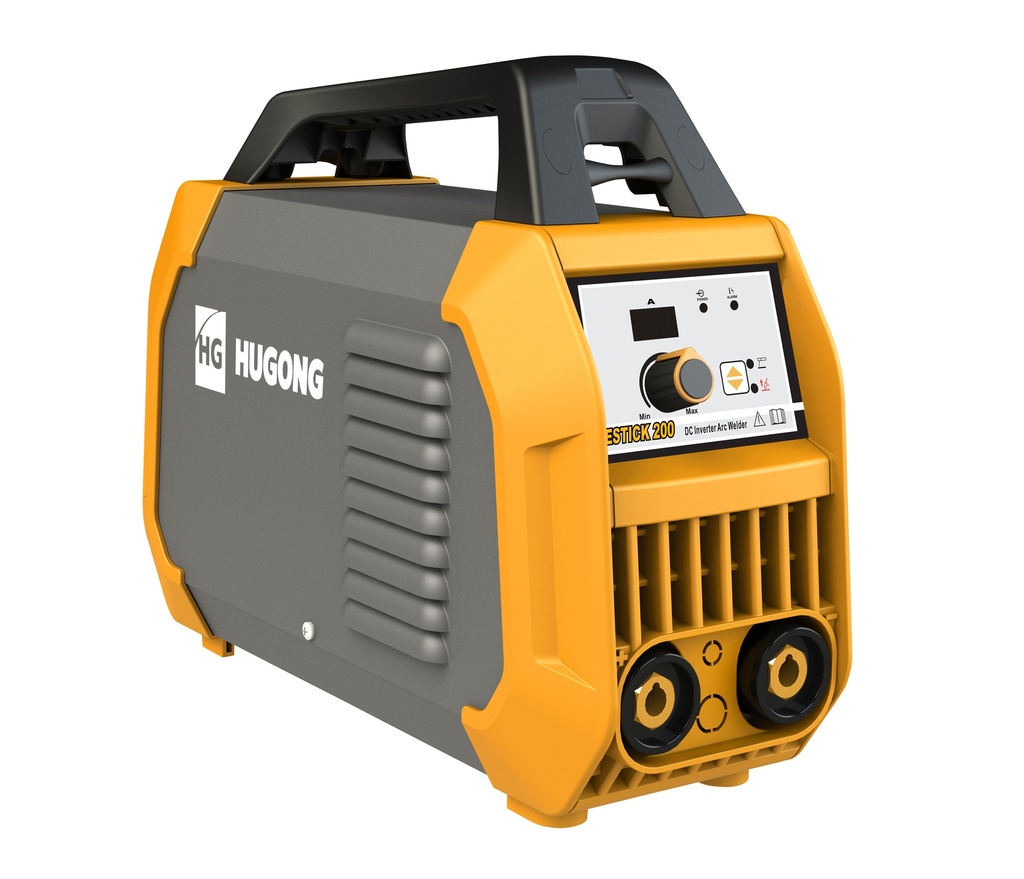

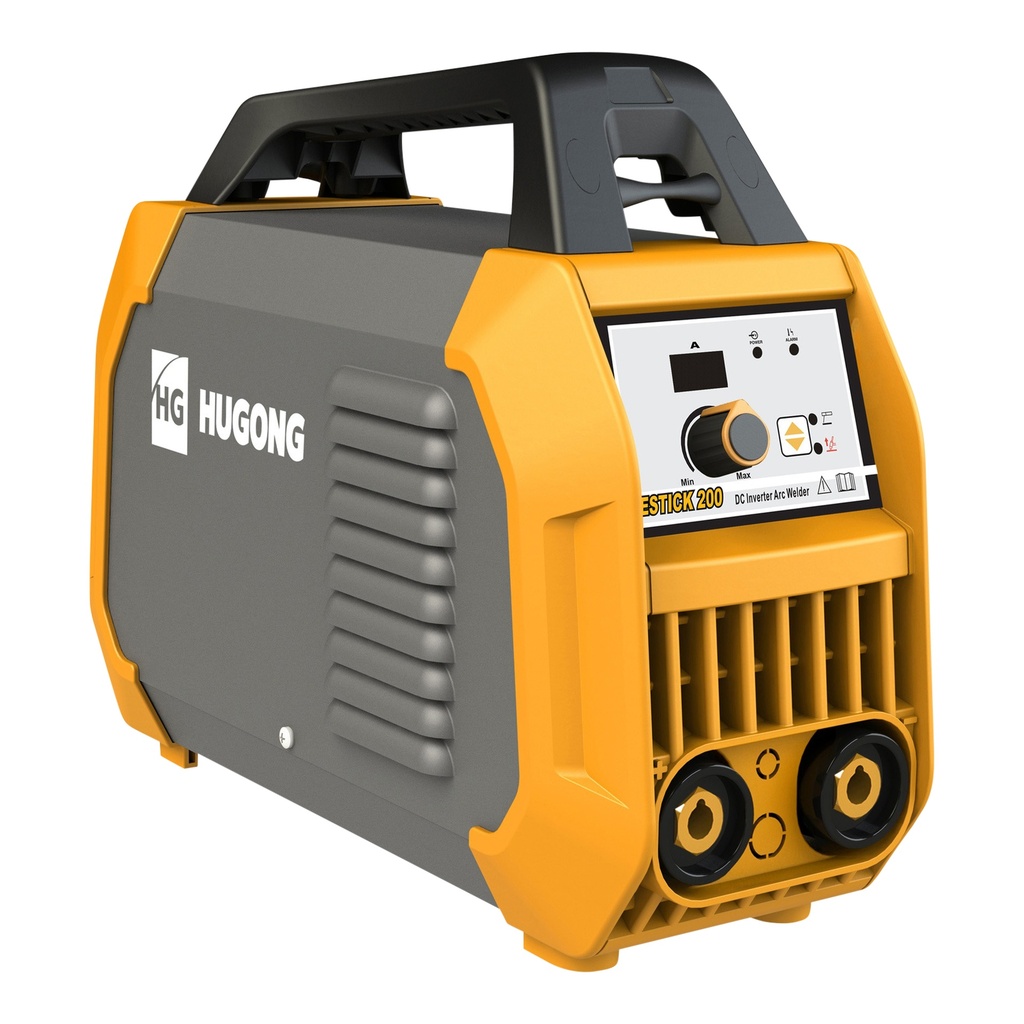

The Hugong EStick200 is a powerful electrode welding machine with a welding capacity of 200 amps. Thanks to its high duty cycle, durable carrying case, and lift-TIG functionality, this model is ideal for professional use both in workshops and on-site.
Equipped with advanced IGBT inverter technology, the machine delivers a stable arc and energy-efficient welding performance. Features such as hot-start, anti-stick, and adjustable ARC force ensure easy arc ignition, prevent the electrode from sticking, and allow precise control over weld penetration. An integrated cooling fan and thermal protection safeguard the machine during extended use.
The EStick200 is suitable for welding carbon steel, low-alloy steel, and stainless steel, and supports both rutile (E6013) and basic (E7018) electrodes in the 1.6 to 4.0 mm range. Additionally, the machine can be used for lift-TIG welding with a compatible torch (sold separately).
- Twistlock electrode holder
Comes standard with a robust twistlock electrode holder and thick 25 mm² cable for optimal current flow and reliable welding.
- Lift-TIG function
In addition to electrode welding, the machine is also suitable for TIG welding using the lift-TIG function. Ideal for precise work on thinner materials (TIG torch sold separately).
- Stepless adjustment
The welding current can be adjusted smoothly and precisely via a rotary knob. This ensures accurate matching to material, electrode, and desired weld depth.
- Incl. sturdy carrying case
The included plastic carrying case offers excellent protection and makes it easy to transport the device to any workplace.
- 5-year warranty
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- Twistlock electrode holder with 3-meter welding cable (25 mm²)
- Ground clamp with 3-meter cable (25 mm²)
- Neoprene power cable (2 meters, 3×2.5 mm²)
- Durable carrying case
Specifications
| Frequency | 50/60 Hz |
| Voltage | 230V - 1 Phase |
| Circuit breaker | 16A C-char |
| Rated input current | 41A |
| Input power | 9.0kVA |
| No load voltage | 78V |
| Duty cycle @20C | 40% - 200A |
| Duty cycle @40C | 15% - 200A |
| Welding electrodes | 1.6 - 4.0mm |
| Welding current range | MMA 41-200A / TIG 15 - 200A |
| Protection class | IP21S |
| Product Dimensions: | |
|---|---|
| Product Length | 400 mm |
| Product Width | 154 mm |
| Product Height | 300 mm |
| Product Weight | 5.5 Kg |
| Package Dimensions: | |
| Package Length | 450 mm |
| Package Width | 245 mm |
| Package Height | 345 mm |
| Package Weight | 8.00 Kg |
