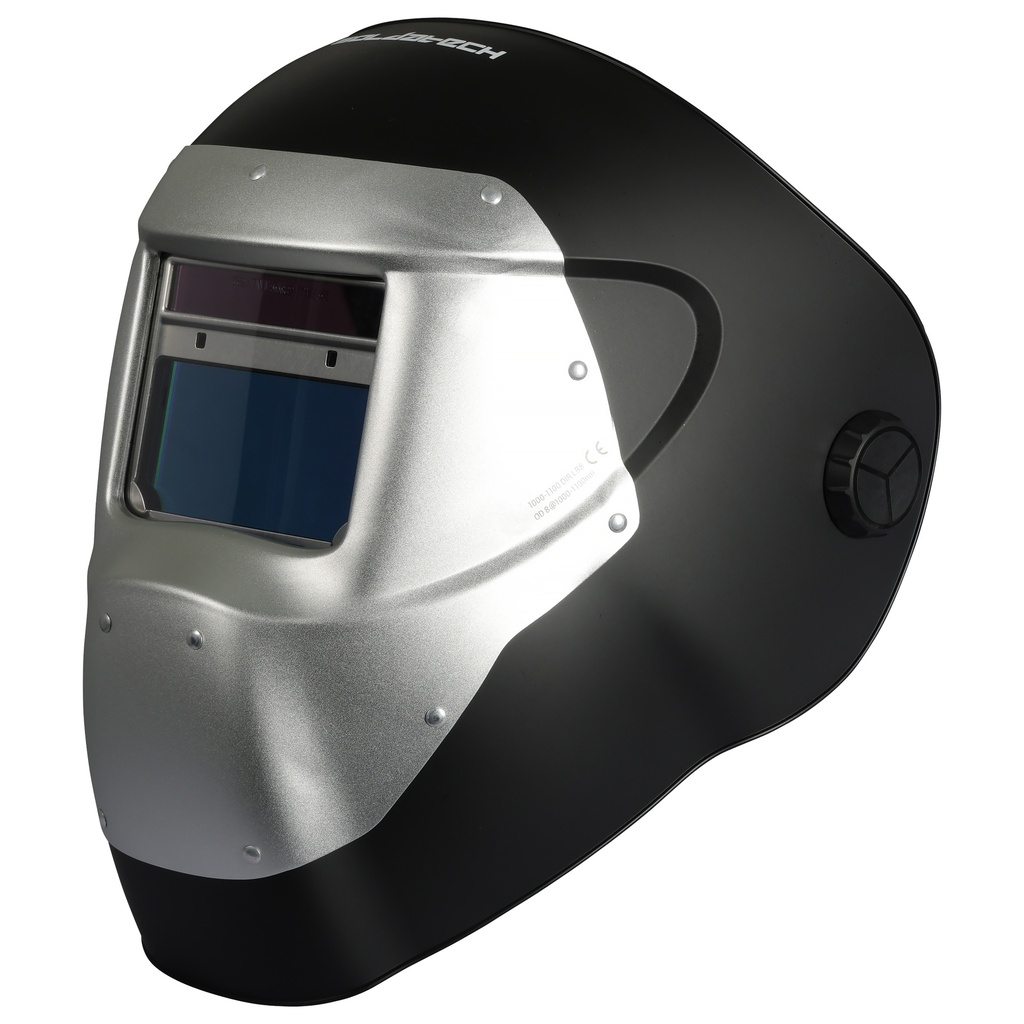

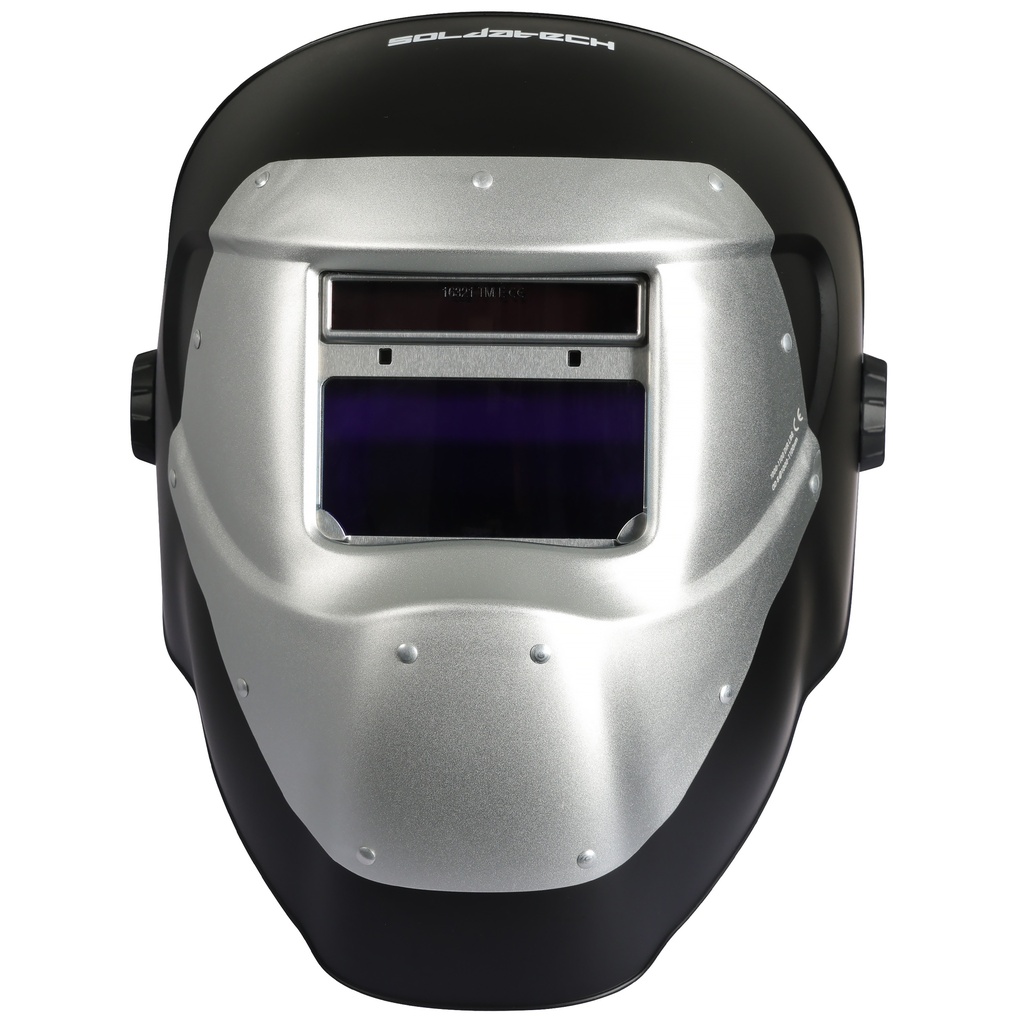

The Soldatech laser welding helmet is designed for professional use in laser welding, laser cutting and laser cleaning. Users are protected against direct and indirect exposure to laser light, including reflection and diffuse radiation. There is permanent filtering of UV, IR and blue light, which is essential for high-intensity laser operations.

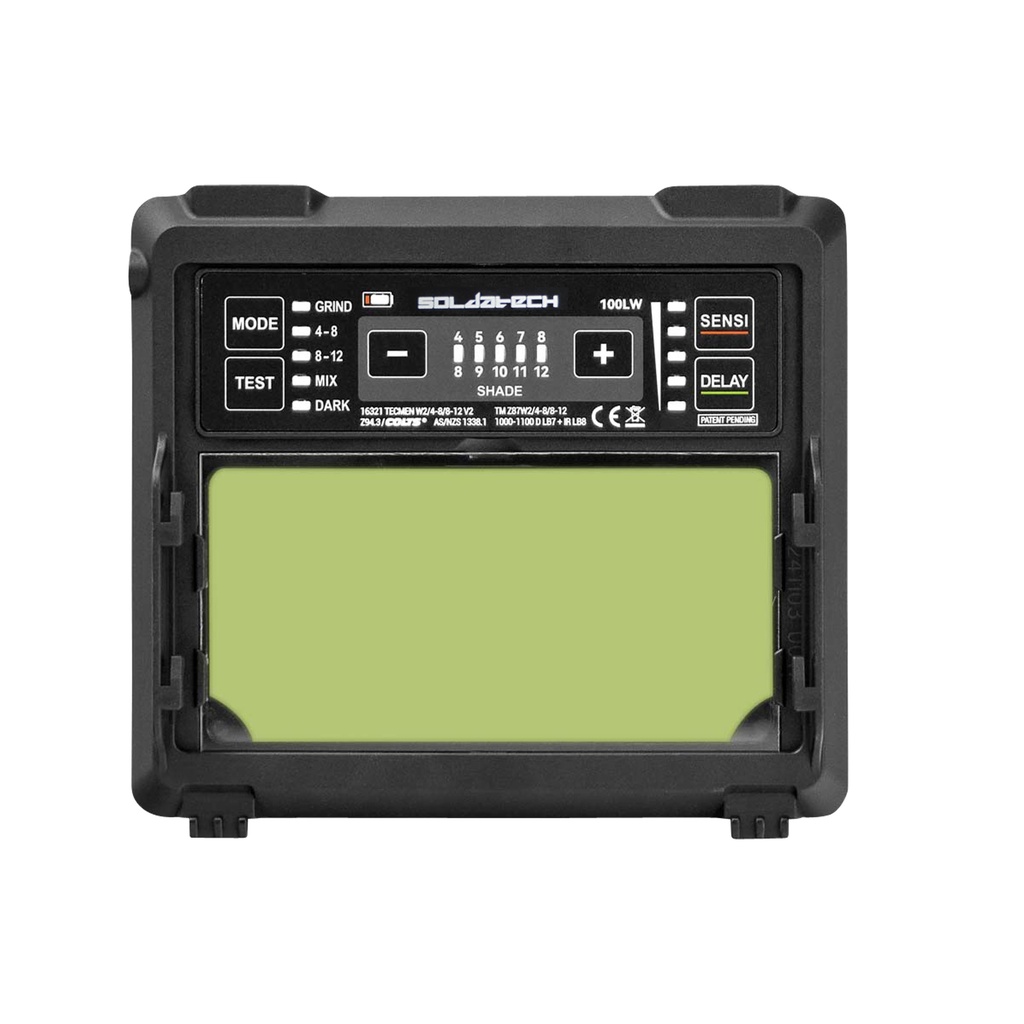

The visor features an automatic darkening filter with an adjustable DIN range (4–12), a fast switching time of 0.00004 seconds and a light state of DIN 2.0. Sensitivity and delay are adjustable via the control panel with LED indicators. The laser helmet offers protection up to optical density OD10+ at a wavelength of 1064 nm, meaning laser radiation is almost completely blocked. This ensures the EWH6L meets safety standards EN207 and EN ISO 16321 for personal protective equipment used in laser applications.
Made of impact resistant and heat resistant nylon reinforced with metal components. This welding helmet is suitable for intensive use in industrial environments with high thermal and mechanical loads.
Key features:
-
Laser protection
Meets EN207 and EN ISO 16321, with OD10+ protection at 1064 nm.
-
Impact resistant construction
Reinforced nylon and metal offer reliable impact protection.
-
Heat resistant
Suitable for prolonged exposure to radiant heat.
-
Patented lens construction
With automatic switching and DIN adjustment.
-
ReaLens technology
Provides clear visibility in light state (DIN 2.0).
Specifications
| Optical class | 1/1/1/2 |
| Light state (DIN) | DIN 2 |
| Dark state (DIN) | 4-8 / 8-12 |
| Laser filter code | 1000–1100 nm D LB7 / IR LB8 (EN207) |
| Optical density (OD) | OD 8 @1000-1100nm OD 10+ @1064nm |
| Permanent UV/IR protection | up to DIN16 |
| Arc sensor | 2 |
| Sensitivity setting | low - high |
| Switching time (light to dark) | 1/25000 sec. |
| Power on/off | automatic on/off |
| Modes | Grind / Cut / Mix / Dark |
| Grinding | Yes |
| Viewing area | 96 x 46.5 mm |
| Cartridge size | 110 x 90 x 9 mm |
| Material | Impact resistant nylon with metal reinforcement |
| Operating temperature | -10℃ ~ 55℃ |
| Storage temperature | -20°C ~ +70°C |
| Product Dimensions: | |
|---|---|
| Product Length | 340 mm |
| Product Width | 250 mm |
| Product Height | 200 mm |
| Product Weight | 0.63 Kg |
| Package Dimensions: | |
| Package Length | 330 mm |
| Package Width | 245 mm |
| Package Height | 230 mm |
| Package Weight | 1.09 Kg |
