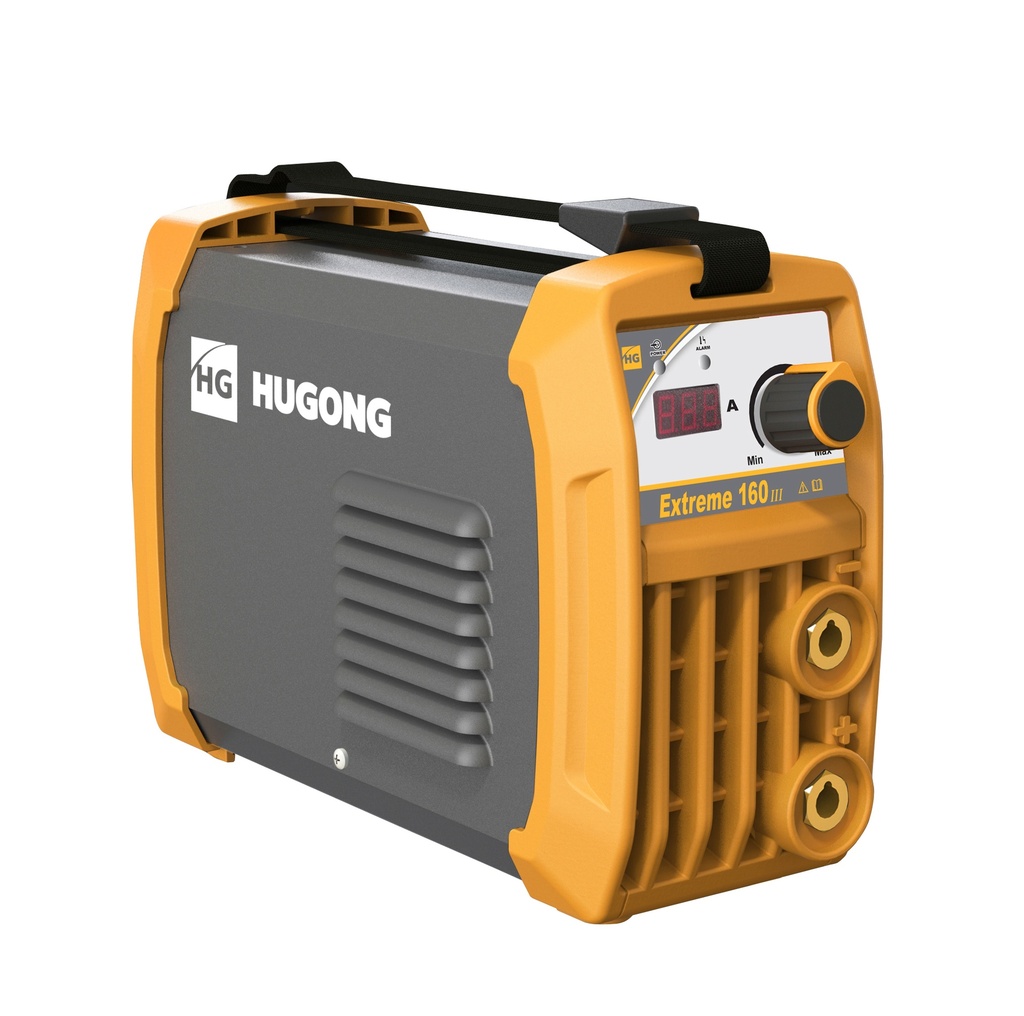

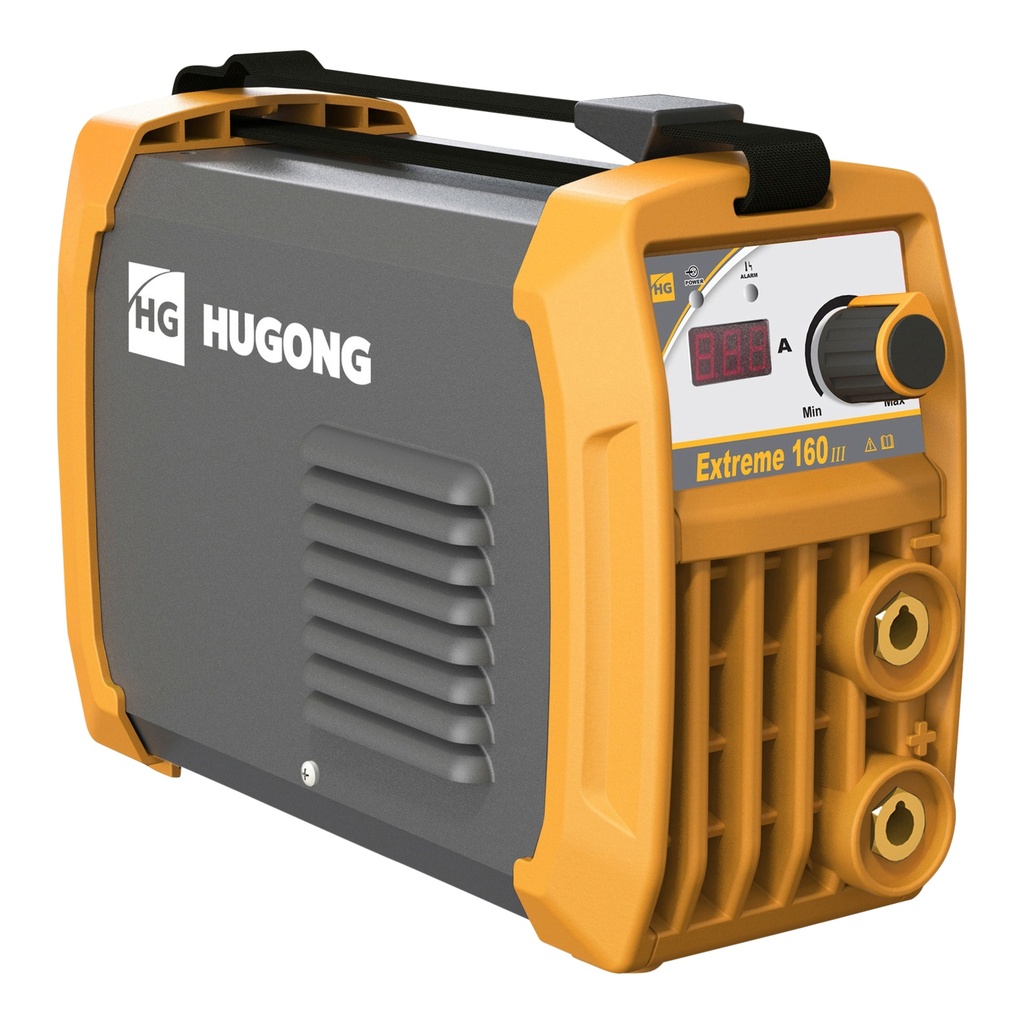

The Hugong Extreme160 is a powerful and user-friendly electrode welding machine. Its compact size, durable carrying case, and high-quality twistlock electrode holder make it ideal for demanding users who need to weld on-site or in the workshop.
The unit features advanced IGBT inverter technology, providing a stable arc, high efficiency, and low power consumption. The hot-start and anti-stick functions simplify arc ignition and help prevent the electrode from sticking to the workpiece. A powerful fan and integrated thermal protection safeguard the machine from overheating.
The Extreme160 is suitable for welding carbon steel, low-alloy steel, and stainless steel. It works flawlessly with both rutile (E6013) and basic (E7018) electrodes in the 1.6 to 3.2 mm range.
- Twistlock electrode holder
Comes standard with a robust twistlock electrode holder and thick 16 mm² cable for optimal current flow and reliable welding.
- Stepless adjustment
The welding current can be adjusted smoothly and precisely via a rotary knob. This ensures accurate matching to material, electrode, and desired weld depth.
- Incl. sturdy carrying case
The supplied plastic carrying case offers solid protection and makes it easy to transport the machine to any job site.
- ABS shock-resistant housing
The ABS housing provides protection against impacts, dust, and light moisture.
- 5-year warranty upon registration
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- Twistlock electrode holder with 3-meter cable (16 mm²)
- Ground clamp with 2-meter cable (16 mm²)
- Neoprene power cable (2 meters, 3×2.5 mm²)
- Durable carrying case
- Shoulder strap
Specifications
| Voltage | 230V - 1 Phase |
| Rated input current | 13.4A |
| Frequency | 50/60 Hz |
| Input power | 6.9kVA |
| Circuit breaker | 16A B-char |
| No load voltage | 68V |
| Duty cycle @20C | 40% - 160A |
| Duty cycle @40C | 20% - 160A |
| Welding electrodes | 1.6 - 3.2mm |
| Welding current range | 20 - 160A |
| Protection class | IP21S |
| Product Dimensions: | |
|---|---|
| Product Length | 315 mm |
| Product Width | 102 mm |
| Product Height | 176 mm |
| Product Weight | 3.0 Kg |
| Package Dimensions: | |
| Package Length | 363 mm |
| Package Width | 185 mm |
| Package Height | 230 mm |
| Package Weight | 6.00 Kg |
