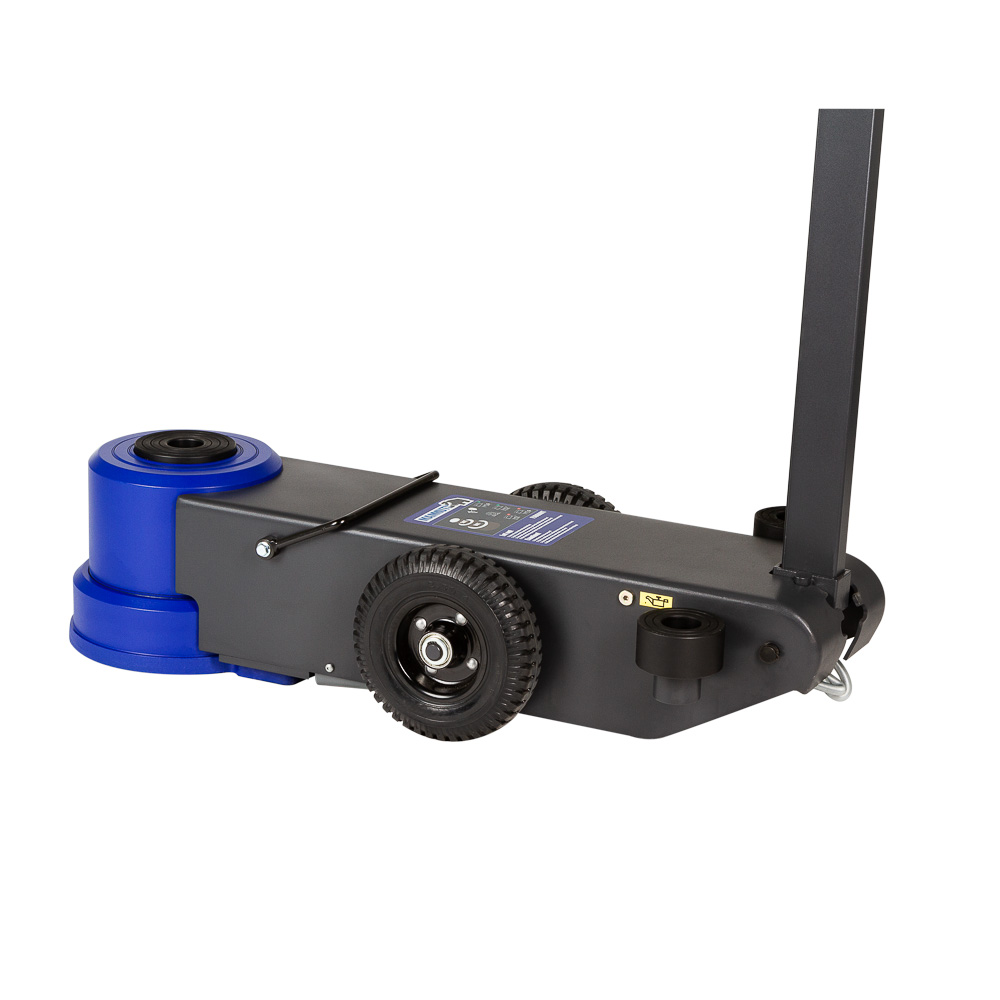

Pneumatic hydraulic jack 80T - 50T

Lifting and hoisting tools / Garage jacks and jack stands / Jack hydraulic / pneumatic Brand: Mammuth Mammuth

Product Code: FJ80AHT

EAN: 8720028000449

Availability: Available

€ 1,996.50 Incl. VAT https://schema.org/InStock 1996.5 EUR € 1,996.50

€ 1,650.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    This series of Mammuth pneumatic hydraulic garage jacks are ideal for intensive industrial use.
    With these air jacks, safe lifting of trucks, buses, trailers, machines and more becomes a simple job.

    Thanks to its sophisticated design, this air jack has the following useful features:

    • dead man's switch: jack immediately switches off when the joystick is released

    • optimum stability due to the wide base

    • hard chromed cylinders, both internal and external

    • cylinders are provided with sealing rings to prevent oil leakage

    • safety overload valve

    • reducing valve for delay during lowering

    • large sturdy rubber wheels

    Specifications:

    • capacity = 80T / 50T - 2 steps

    • minimum lifting height = 231mm

    • maximum lifting height without adapters = 445mm

    • maximum lifting height with adapters = 565mm

    • step 1 - 80T = 110mm, height from floor = 341mm

    • step 2 - 50T = 102mm, height from floor = 445mm

    • adapters = 75mm and 45mm

    • average air consumption = 300L/min

    • working pressure = 9 - 12 bar

    • coupling = male connector euroline 1/4"

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 115.0 Kg
    Package Dimensions:
    Package Length 420 mm
    Package Width 1,390 mm
    Package Height 450 mm
    Package Weight 119.00 Kg
    Package Type:
    1 Pcs

    • Maximum lifting height of 565mm

    • Dead man's switch

    • Safety overload valve

    • Very wide base
