Pan and box brake 1270mm 2,0mm

Wood and Metal working / Metal working machinery / Pan & box brake Brand: Cowley Cowley

Product Code: FM027B

EAN: 8720028044818

Availability: Available

€ 2,117.50 Incl. VAT 2117.5 EUR € 2,117.50

€ 1,750.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

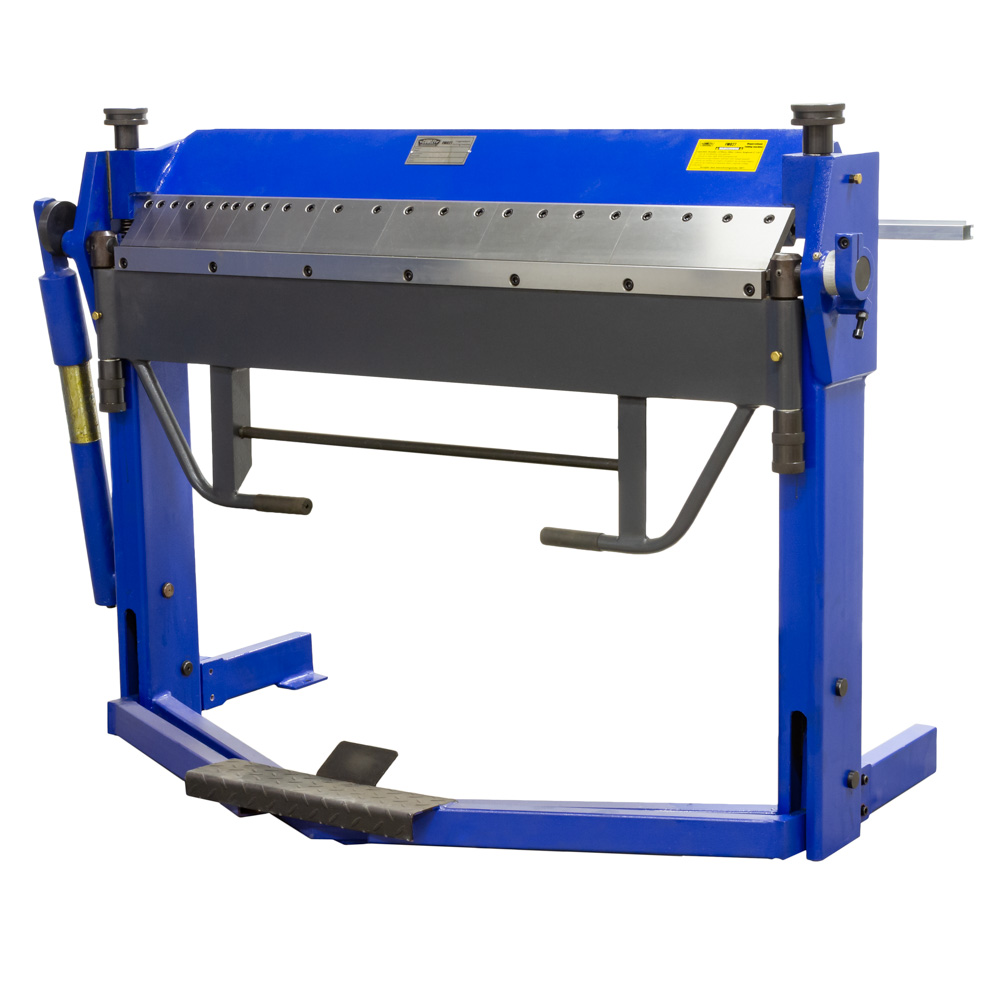

    Pan and box brake / segment bending machine

    This Cowley pan and box brake is suitable for folding smaller materials. Many different sizes are possible using the adjustable segments. This model is equipped with a foot pedal for securing steel plate. The machine is also supplied including a solid back gauge with metric scaling.

    Technical specifications:

    • max. working width = 1270mm

    • max. thickness = 2.0mm

    • bending angle = 0 - 135 degrees

    • max. clamping bar lift = 47mm

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 320.0 Kg
    Package Dimensions:
    Package Length 1,660 mm
    Package Width 630 mm
    Package Height 1,280 mm
    Package Weight 350.00 Kg

    • 12 segments

    • Back gauge with dimensions

    • Degree setting for the angle of the plate

    • Foot clamp
