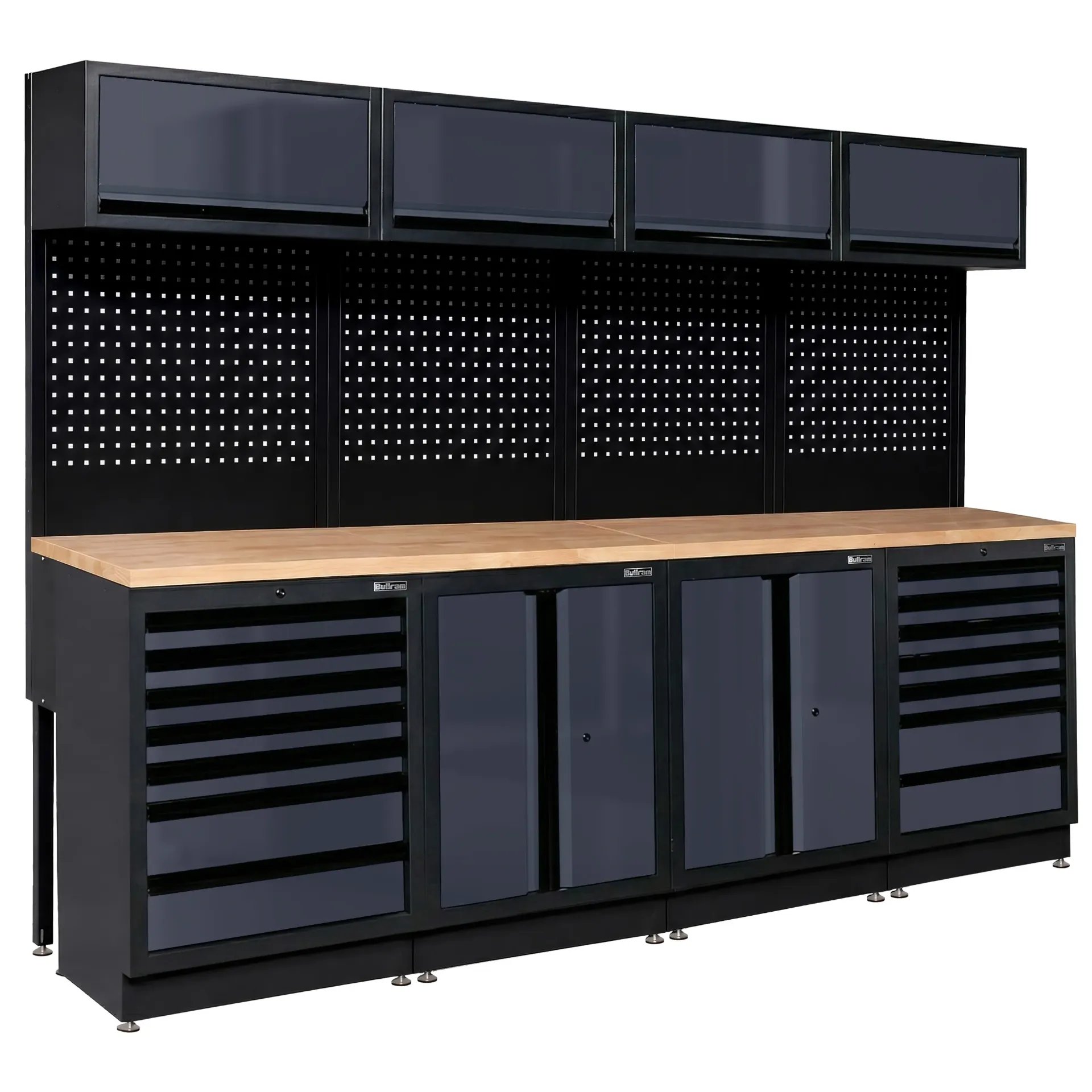

The Bullram GCMODEE workshop storage module provides a complete workshop storage solution with base cabinets, wall cabinets and tool panels. Two solid wooden worktops with a depth of 620 mm provide additional workspace.
Ball bearing drawer slides ensure smooth drawer operation, while the soft close system allows the drawers to close quietly and gently. Gas struts assist with opening the wall cabinet doors and keep them securely in the open position.

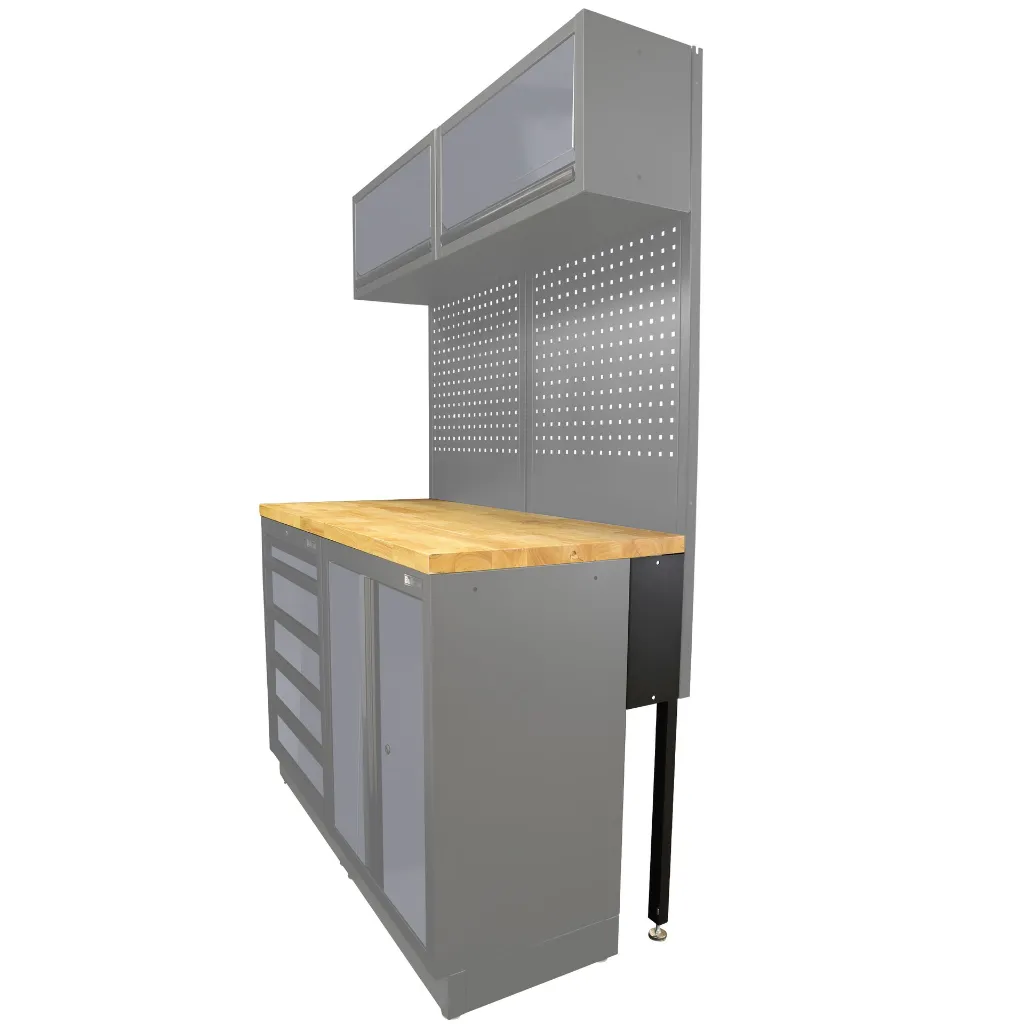

Within the modular Bullram STARX range, the workshop storage module can be expanded with additional cabinets, worktops and accessories.
Key features:
- Extra deep 620 mm worktops
Made from solid wood for a strong and spacious work surface.

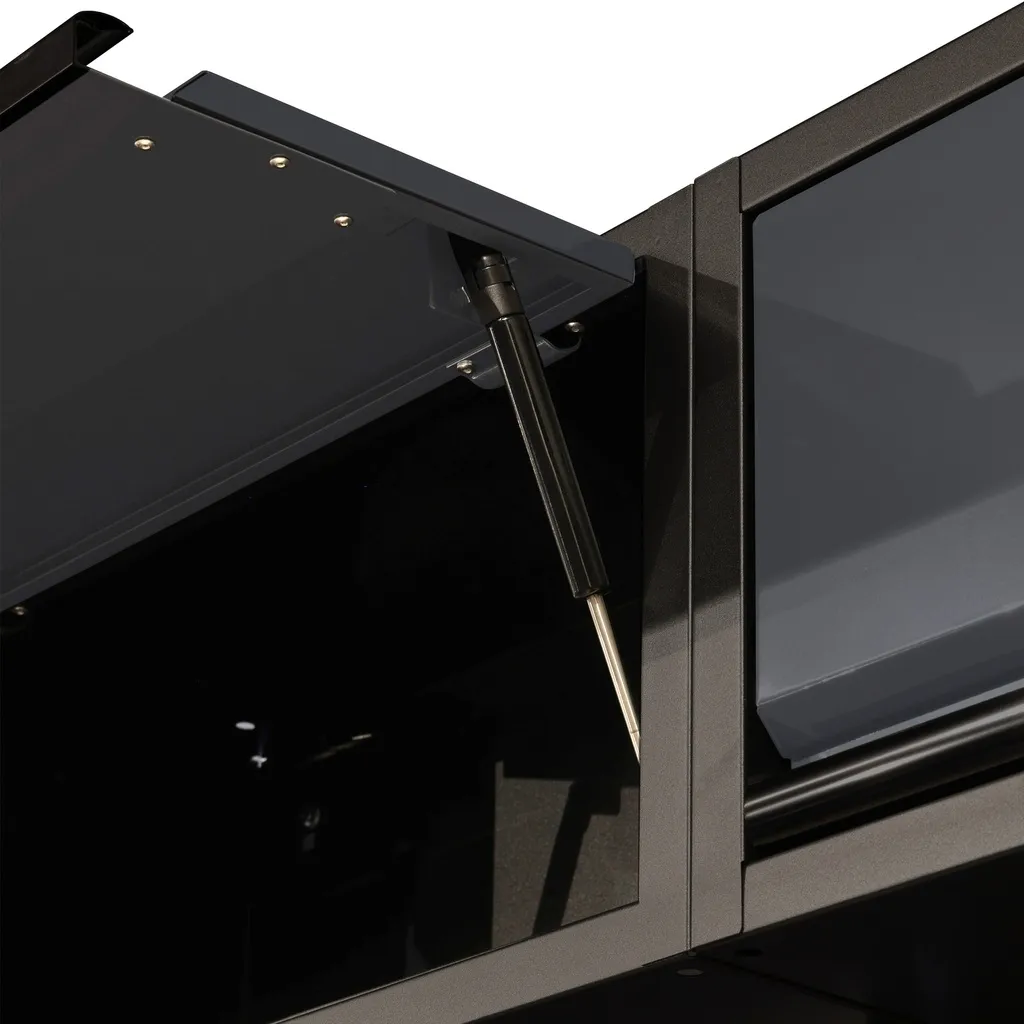

- Wall cabinets with gas struts
Assist with opening and keep the doors securely in the open position.
- Aluminium handles
Provide a secure grip.

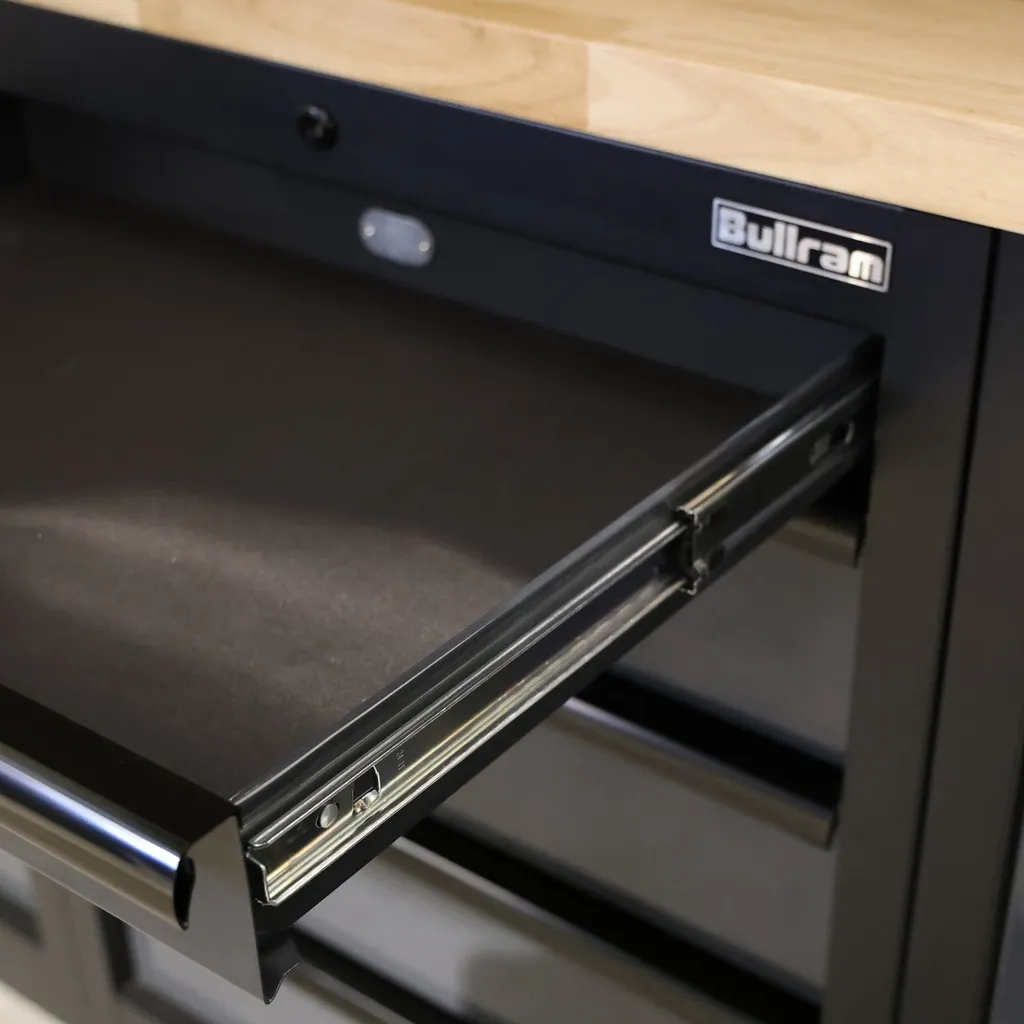

- Ball bearing drawer slides and soft close
Ensure smooth drawer operation and quiet, controlled closing.
- Includes adjustable feet
For levelling the cabinet on uneven floors.
This module consists of the following components:
- 2× GC68L7 Drawer cabinet with 7 drawers
- 2× GC68D2 Base cabinet with 2 doors
- 4× GC68WD1 Wall cabinet with 1 door
- 4× GC10BP Tool panel 615 × 1052 mm
- 2× GC13RE Extra deep wooden worktop 1370 × 620 × 38 mm
- 8× GC14CE Connection and end piece for workshop storage module
- 4× GC01BE Depth extension kit for base cabinet
- 4× GC01AF Adjustable feet set for workshop storage module
Specifications
| Colour scheme | RAL 9005 (black) and RAL 7021 (grey) |
| Drawer load capacity (drawer cabinet) | 30 kg |
| Shelf load capacity (base cabinet) | 30 kg |
| Wall cabinet load capacity | 15 kg |
| Tool panel load capacity | 10 kg |
| Worktop depth | 620 mm |
| Tabletop material | Solid wood |

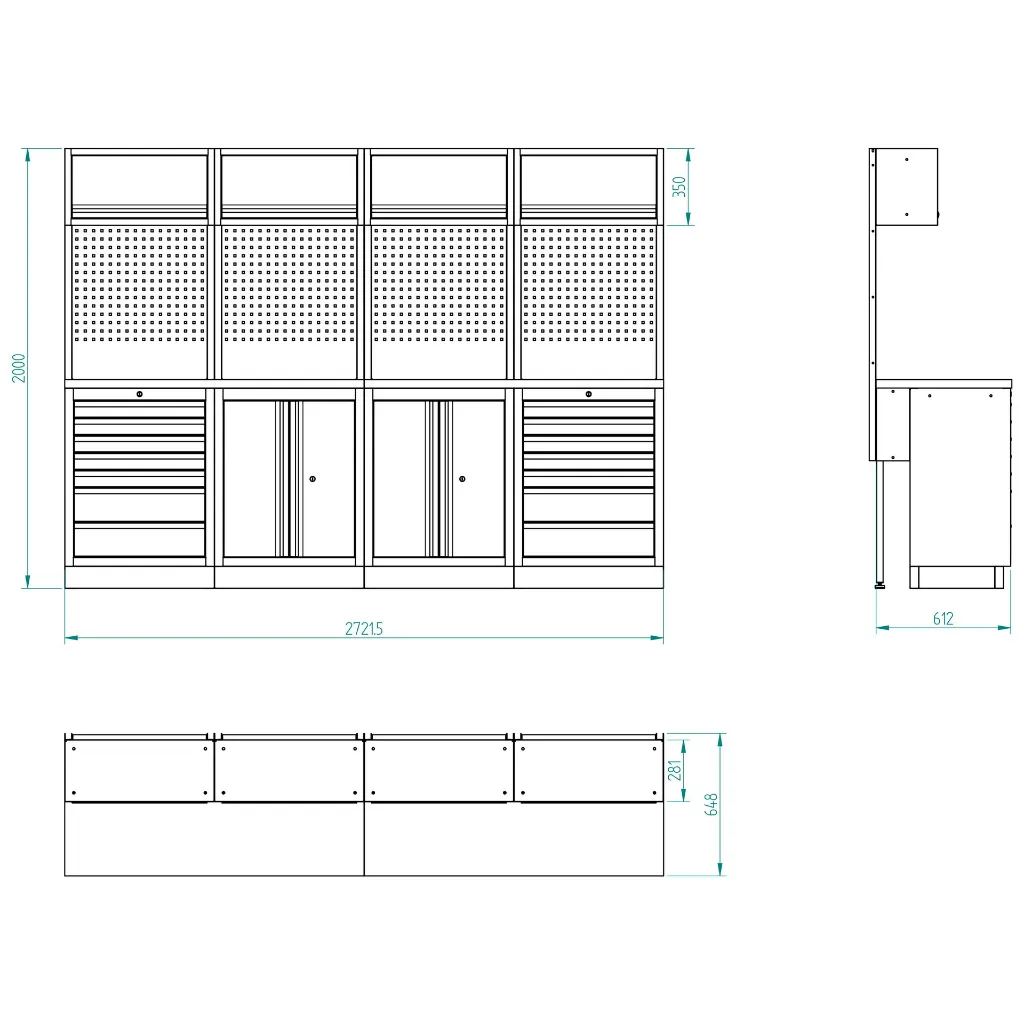

Product Dimensions
| Length | 2,722 mm |
|---|---|
| Width | 648 mm |
| Height | 2,000 mm |
| Weight | 286.0 kg |
Package Dimensions
| Length | 1,200 mm |
|---|---|
| Width | 1,000 mm |
| Height | 2,000 mm |
| Weight | 326.00 kg |
