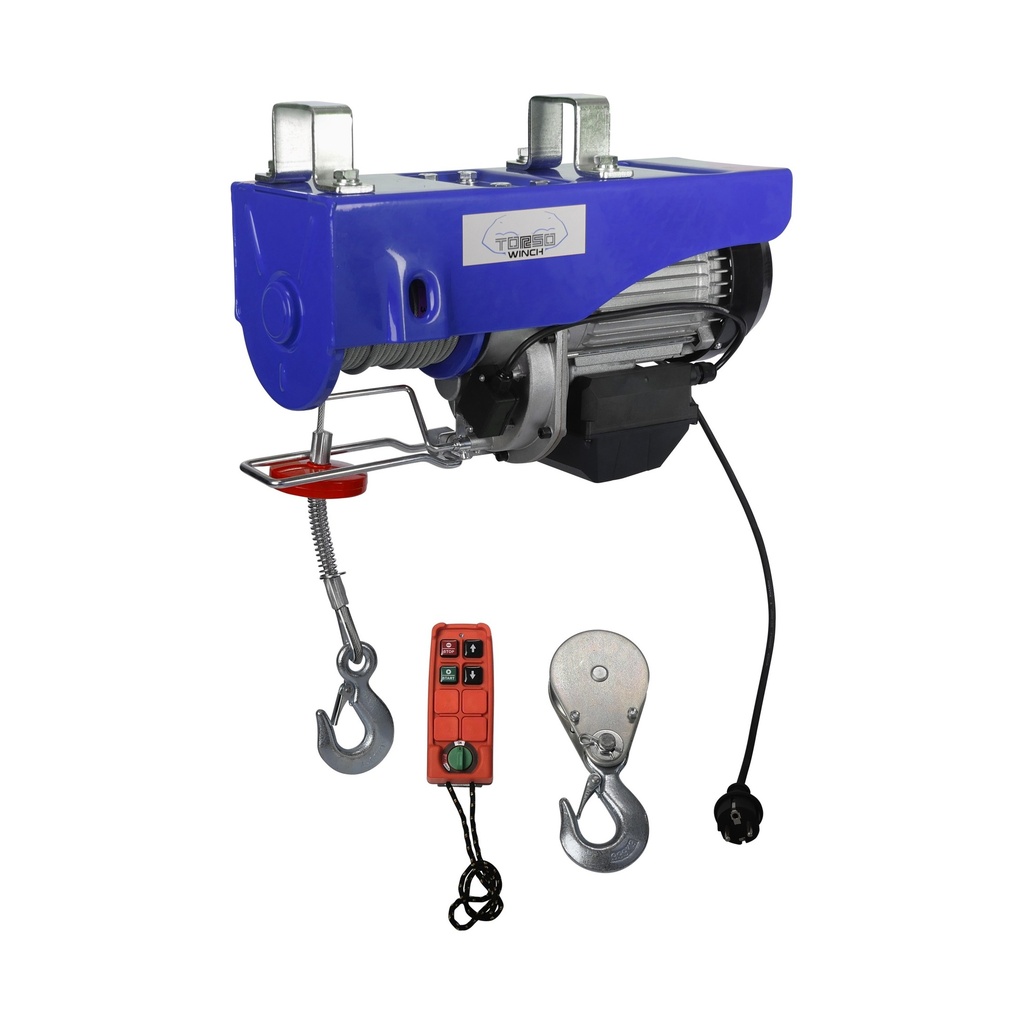

Electric hoist / hoisting winch / electric winch
This Torso lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
Using the wireless control, all the problems which usually occur due to the short operating cable, are history.
Technical specifications:
load capacity = 500kg / 990kg
lifting height = 18m / 9m
lifting speed = 8m/min / 4m/min
cable length = 18m
cable diameter = 5,6mm
cable break resistance = 2500kg
motor power = 1600W
voltage = 230V - 50Hz
mounting size center to center length = 250mm
mounting size center to center width = 110mm
Specifications
| Lifting capacity | 500 kg / 990 kg |
| Voltage | 230V / 50 Hz |
| Lifting height max. | 18 m / 9m |
| Lifting speed loaded | 8m/min. / 4m/min. |
| Rope diameter | 5.6 mm |
| Cable length | 18 m |
| Mounting size center to center width / length | 110 mm / 250 mm |
| Motor power | 450 W |
| Cable break resistance | 2500 kg |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 480 mm |
| Product Width | 180 mm |
| Product Height | 270 mm |
| Product Weight | 30.5 Kg |
| Package Dimensions: | |
| Package Length | 550 mm |
| Package Width | 250 mm |
| Package Height | 335 mm |
| Package Weight | 32.00 Kg |
| Package Type: | |
| 1 Pcs | |
| Pallet | 18 Pcs |
