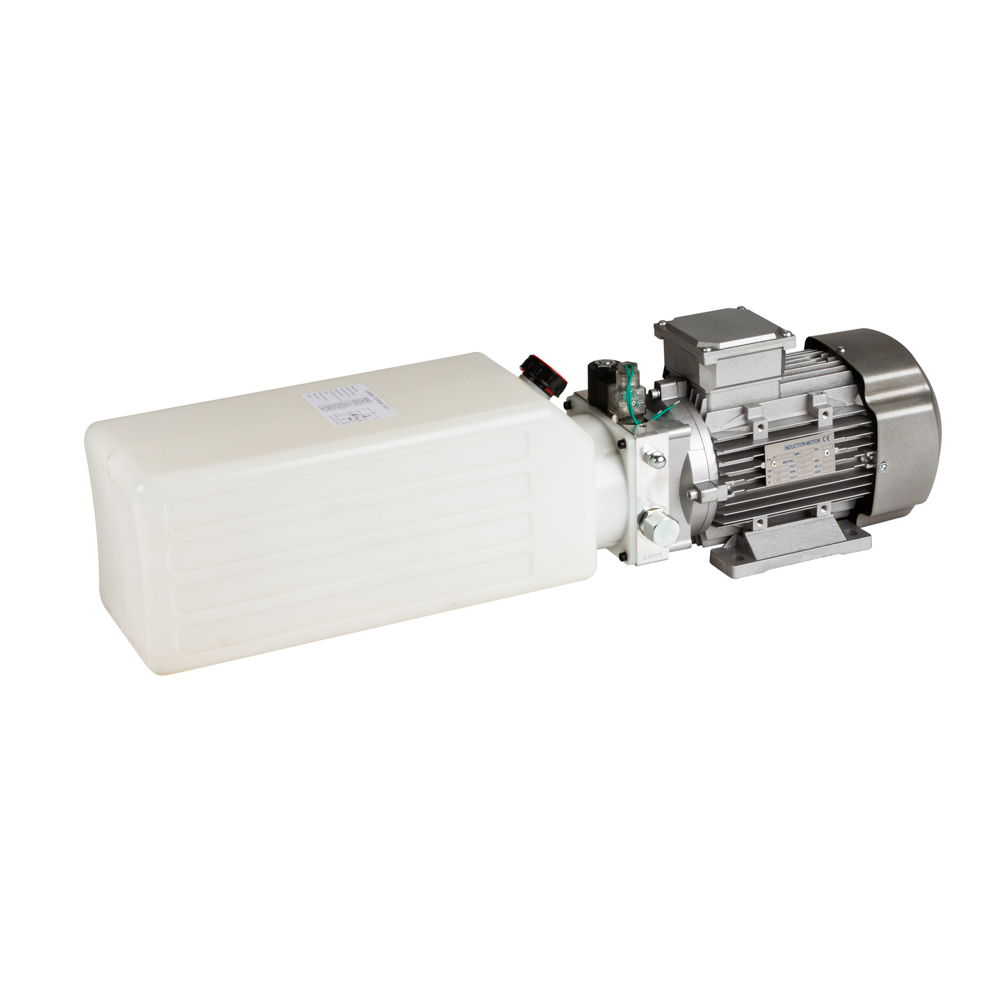

Hydraulic pump unit / hydraulic power pack
motor power = 2,2kW
voltage = 380V AC
displacement = 2.1 cc/r
max. pressure = 200bar (20MPa)
tank capacity = 10L
motor speed = 2850rpm
Product Dimensions
| Length | 815 mm |
|---|---|
| Width | 180 mm |
| Height | 235 mm |
| Weight | 18.3 kg |
Package Dimensions
| Length | 280 mm |
|---|---|
| Width | 910 mm |
| Height | 315 mm |
| Weight | 20.13 kg |
