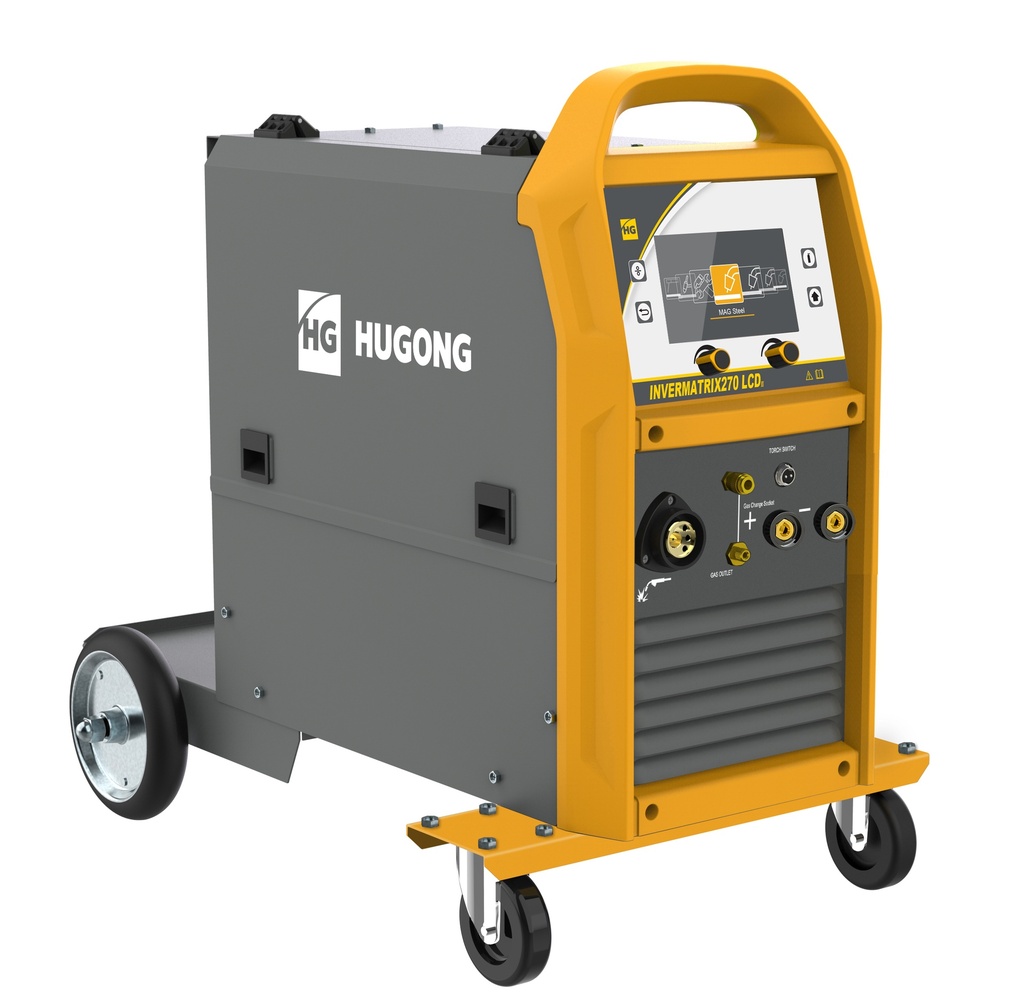

The Hugong INVERMATRIX270LCDIII is an advanced, wheeled multi-process welding system featuring both Pulse and Double Pulse MIG functionality. This heavy-duty machine is designed for MIG/MAG and MMA (stick) welding and combines powerful performance with smart synergic control.
The INVERMATRIX270LCDIII offers both manual and automatic parameter settings based on wire type, material, shielding gas, and wire diameter. Through the digital display, users can precisely adjust current, voltage, and inductance. Welding settings can also be saved and recalled—ideal for repetitive work and production tasks.
Its solid construction, integrated 4-roll wire feeder, and extensive configurability make this a complete workshop solution for welding steel, stainless steel, aluminium, and flux-cored wires.
- Pulse & Double Pulse MIG with synergic control
Enables precise heat control, ideal for stainless steel, aluminium, and heat-sensitive materials.
- Memory function
Save and recall your preferred settings, ideal for batch work or repeated welds.
- Digital display with full material, gas, and wire input selection
Intuitive interface offering direct access to all key settings.
- MIG/MMA welding installation with integrated trolley
Sturdy, mobile solution with machine and gas cylinder combined on one wheeled unit.
- Shock-resistant ABS housing & 5-year warranty
Rugged casing for protection against impact, dust, and light moisture. Warranty extends to 5 years with online registration.
Supplied with:
- MIG torch MLT24M4 – 4 meters
- Ground clamp with 3-meter cable (25 mm²)
- 3-meter Ø8 mm gas hose with NW5 connector
- 0.8/1.0 conductive nozzle each
Specifications
| Frequency | 50/60 Hz |
| Voltage | 220V - 1 Phase |
| No load voltage | 79V |
| Input power | 27.5kVA |
| Rated input current | 13A |
| Welding current range | MIG 30 - 270A / MMA 20 - 270A / TIG 20 - 270A |
| Weldable welding wire | MIG wire 0.6 - 1.2 mm |
| Protection class | IP21S |
| Duty cycle @40C | 60% - 270A |
| Product Dimensions: | |
|---|---|
| Product Length | 935 mm |
| Product Width | 485 mm |
| Product Height | 870 mm |
| Product Weight | 53.0 Kg |
| Package Dimensions: | |
| Package Length | 958 mm |
| Package Width | 570 mm |
| Package Height | 840 mm |
| Package Weight | 76.10 Kg |
