Welding turning roll 1000kg

Welding and cutting equipment / Welding mechanisation / Welding turning rolls Brand: Cowley Cowley

Product Code: LRS1000

EAN: 8720028045174

Availability: Available

€ 1,324.95 Incl. VAT https://schema.org/InStock 1324.95 EUR € 1,324.95

€ 1,095.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

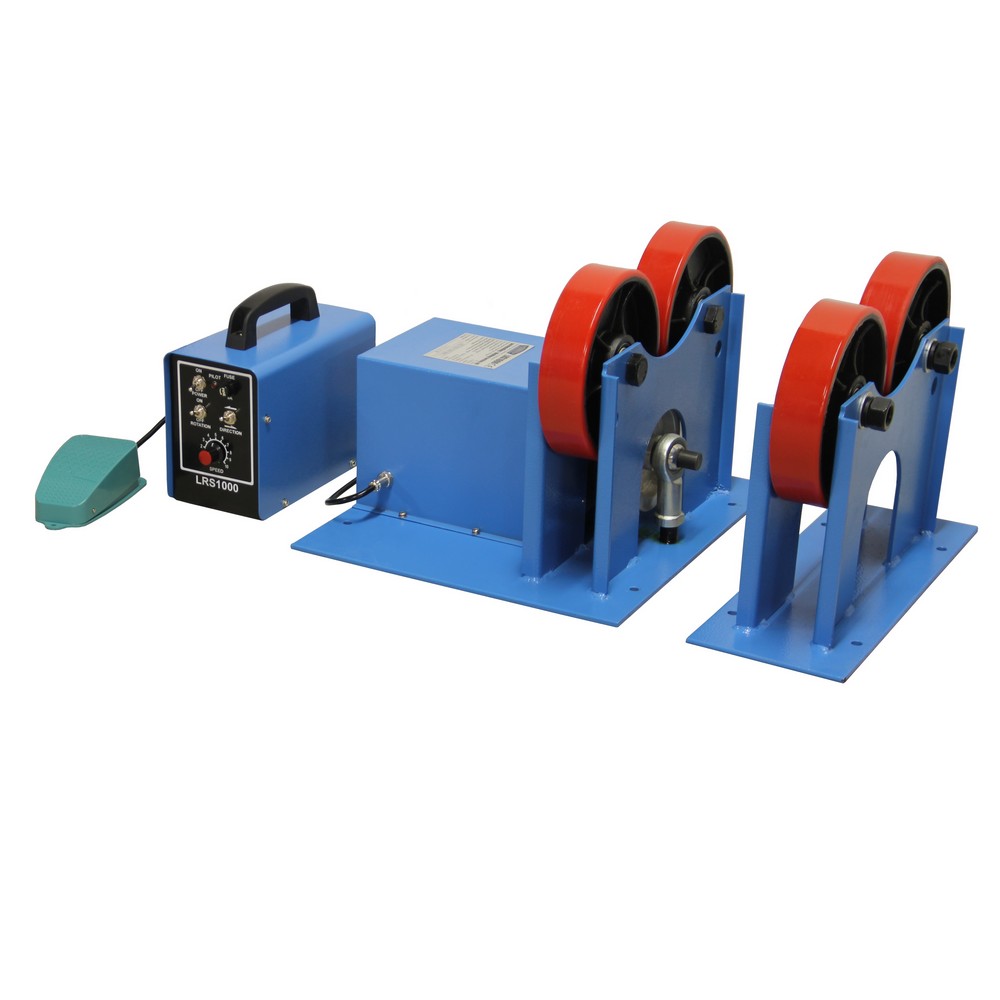

    Welding turning roll

    This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.
    With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.

    Technical specifications:

    • power supply = 230V

    • frequency = 50/60 Hz

    • power = 230W

    • load capacity = 1000kg

    • rotation speed = 80 - 1600mm/min

    • diameter range = 20 - 800mm

    • diameter rollers = 200mm

    • width rollers = 50mm

    • measurements control box = 255 x 125 x 285mm

    • measurements machine = 550 x 450 x 315mm

    Product Dimensions:
    Product Length 550 mm
    Product Width 450 mm
    Product Height 315 mm
    Product Weight 53.0 Kg
    Package Dimensions:
    Package Length 665 mm
    Package Width 560 mm
    Package Height 475 mm
    Package Weight 60.00 Kg
