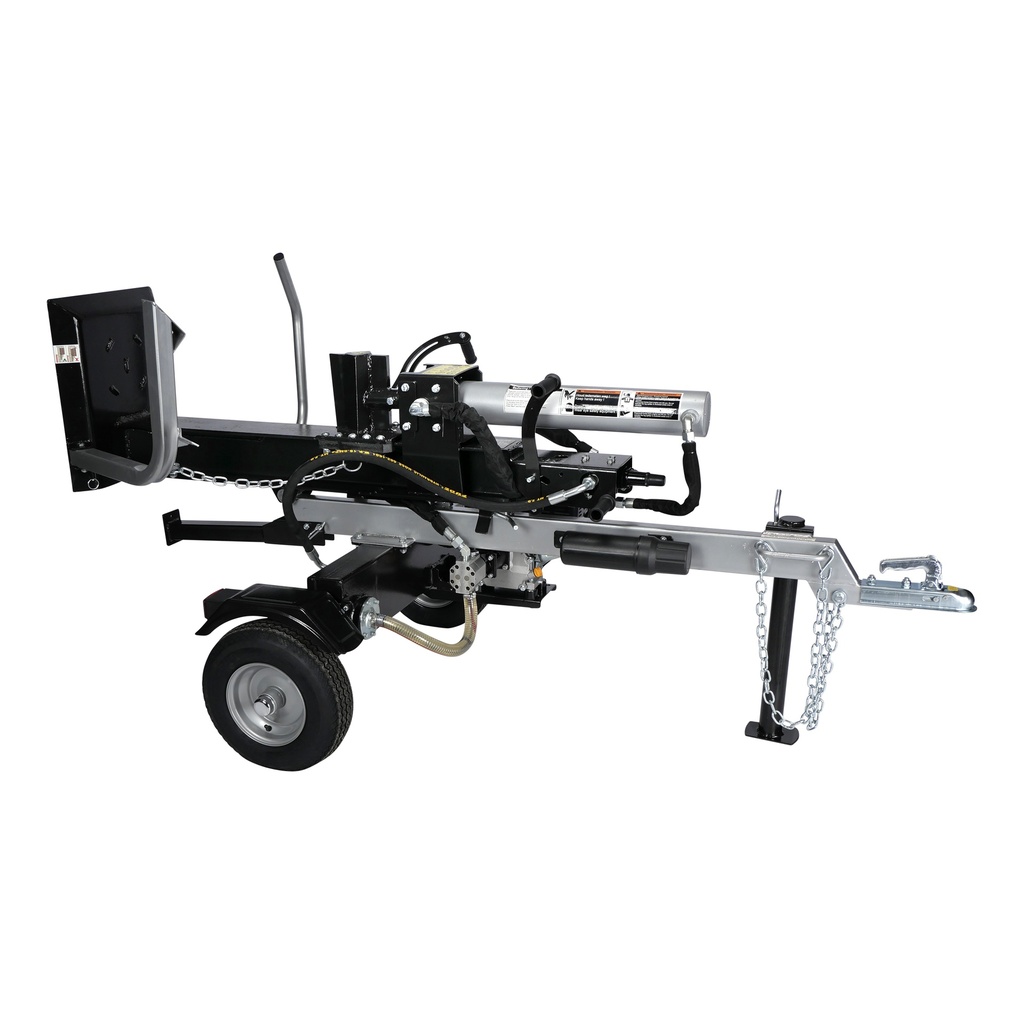

Log splitter 22 tons with gasoline engine vertical

[LS22BN] Log splitter 22 tons with gasoline engine vertical

Wood and Metal working / Wood working / Log splitters Brand: Woodcraft Woodcraft

Product Code: LS22BN

EAN: 8720028092345

Availability: Sold Out

Expected back in stock: 4 - 6 weeks


€ 1,400.00 1400.0 EUR € 1,400.00

€ 1,400.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

log splitter / wood splitter with gasoline engine

This gasoline engine powered log splitter from Woodcraft does not need an external power supply network and can therefore be used anywhere.
With a pressing force of 22 tons and a large splitting blade, you can easily split logs up to 60 cm long.
The splitter is very mobile and equipped with 2 sturdy support legs for extra stability, which make folding the splitter up and down a lot easier, and also ensures stability during splitting.
Thanks to the foldable catch bracket, the split wood does not immediately fall to the ground. This also ensures that it is possible to split large diameter logs.
The hydraulic cylinder is mounted on a dowel pin that allows the cylinder to slide during splitting, reducing the pressure on the cylinder rod. This makes it less sensitive to wear and leaks.
Because the wood splitter is positioned vertically, it does not require much effort to slide large logs under it.
This product complies with the new Nen standard 609-1/2017.
! Please note that this log splitter is for vertical use only!
Technical specifications:

  • Pressure force 22 tons
  • Cycle time 12.5s
  • hydraulic oil capacity = 24.6L (not included!)
  • max. diameter wood = 34.8 x 61cm
  • max. pressure = 248 bar (3600psi)
  • max. pump output = 11gpm / 41.5L/min
  • wheel size = 16"
  • motor type = YM168F19
  • engine power = 6.5HP (196cc) / 3600rpm
  • equipped with non-return valve
  • splitting knife = 175mm hardened steel
  • max. towing speed = 72km/h
Product Dimensions:
Product Length 2,280 mm
Product Width 1,140 mm
Product Height 1,220 mm
Product Weight 246.0 Kg
Package Dimensions:
Package Length 2,020 mm
Package Width 565 mm
Package Height 745 mm
Package Weight 286.00 Kg

  • Large stroke of 60 cm
  • Sprung axle
  • Logs do not need to be lifted
  • Suitable for large blocks of wood
  • Complies with Nen 609-1/2017
