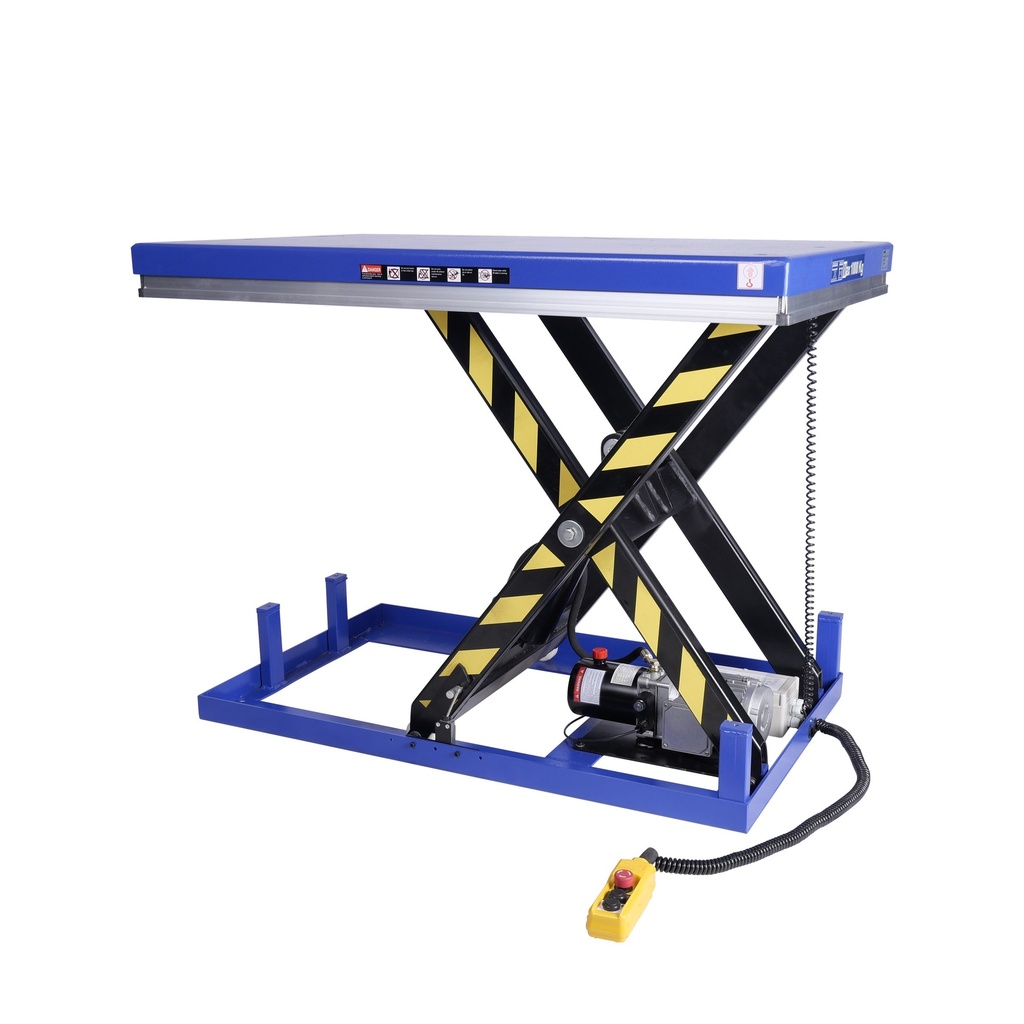

Scissor lift table / scissor table / platform lift / lift table / fixed lift table
This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.
Due to the electrical operation, ergonomic work is guaranteed.
Technical specifications:
capacity = 1000kg
minimum height = 210mm
maximum height = 1000mm
platform size = 1300 x 820mm
platform height = 60mm
lifting time unloaded = 21 sec.
cable control length = 3,7m
voltage = 230V
power = 1,1kW
oil capacity = 1,5L
Note: The lifting table is supplied without a plug!
| Product Dimensions: | |
|---|---|
| Product Length | 1,300 mm |
| Product Width | 820 mm |
| Product Height | 210 mm |
| Product Weight | 200.0 Kg |
| Package Dimensions: | |
| Package Length | 1,350 mm |
| Package Width | 900 mm |
| Package Height | 350 mm |
| Package Weight | 220.00 Kg |
![[OCH32V20] Falco hydraulic oil 20L CH32](/web/image/product.product/51783/image_512/%5BOCH32V20%5D%20Falco%20hydraulic%20oil%2020L%20CH32?unique=3bae25d)

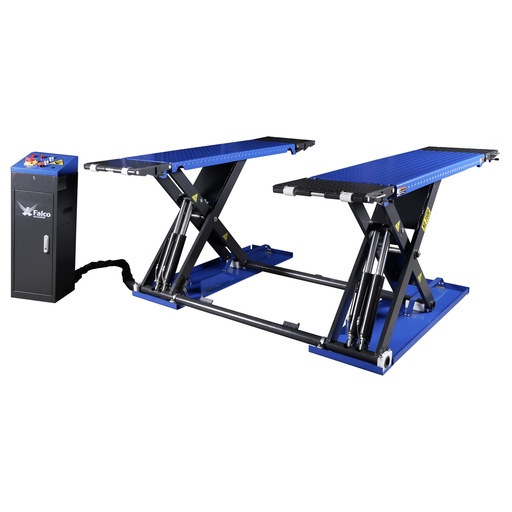

![[VL35B230M] Midrise scissor lift TwinX 3500kg 230V](/web/image/product.product/57973/image_512/%5BVL35B230M%5D%20Midrise%20scissor%20lift%20TwinX%203500kg%20230V?unique=53e97f4)
