Mobile scissor lift table / scissor lift / lift table / electro hydraulic scissor table lift table

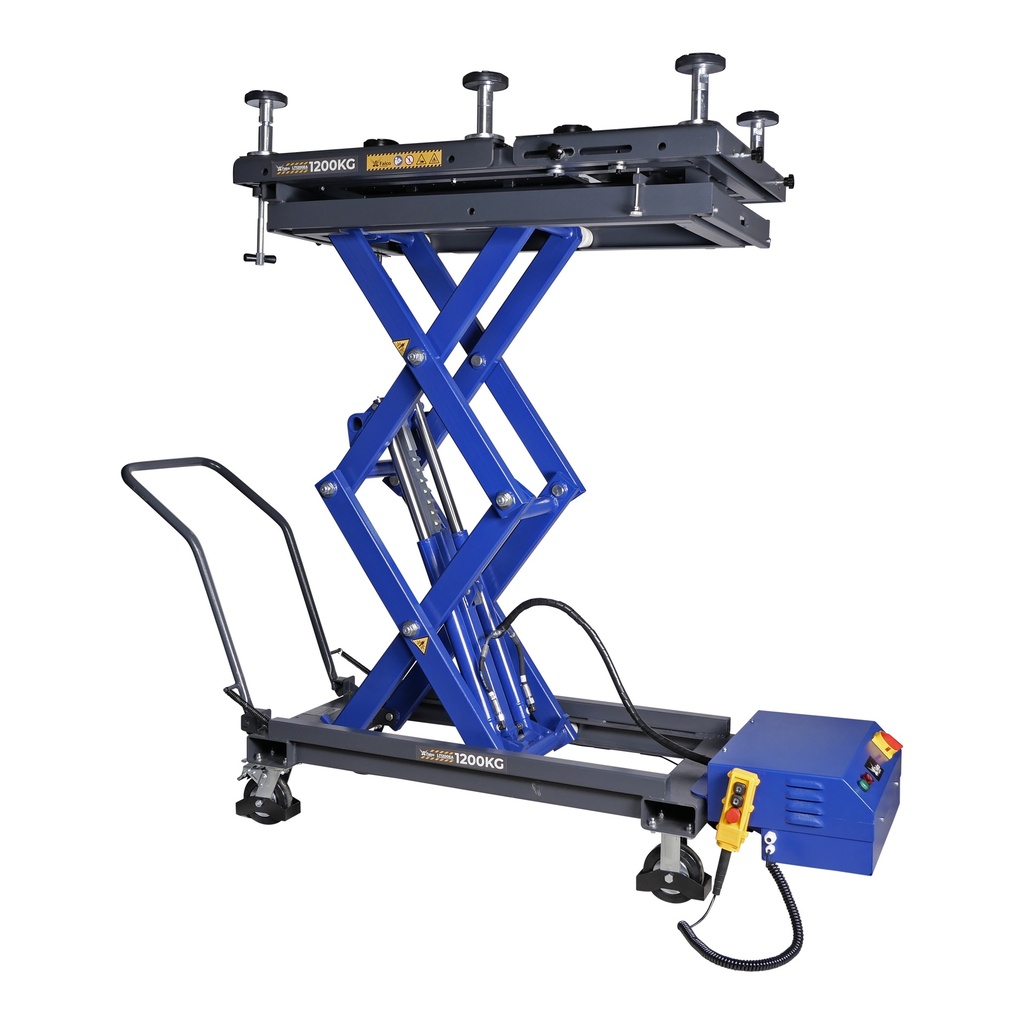

The Falco LT1200EA electro hydraulic battery has been specially developed for electric vehicles and is ideal for (dis)assembling engines, gearboxes, lithium-ion car battery packs and other chassis components. The lifting table is infinitely adjustable in height and length, so it has a flexible field of application.
Features:
- The table top has 104 M10 threaded holes with a hole pattern of 100 x 100 mm for easy mounting of tools and lifting adapters
- Lifting table is easily adjustable in length and transverse direction and can be tilted 5 degrees
- Swivel wheels including brake for free movement and safe operation
- Collapsible rod for optimal workspace
- Integrated, electro-hydraulic unit 230V
- Double hydraulic cilinder plus Electyro-mechanical lock for extra safety
- Incl 6 lifting pads with adjustable spindles
- Easy to use control unit incl magnetic holder for optimal postioning
- Insulated table top and lifting adapters for safety while working on electric cars
Specifications
| Lifting capacity | 1200 kg |
| Voltage | 230V / 50 Hz |
| Power | 0.75 kW |
| Platform dimensions | 1300 x 760 mm |
| Protection class | IP44 |
| Platform height min. (without pads / with pads) | 640 / 800 mm |
| Platform height max. (without pads / with pads middle position / with pads high position) | 1855 / 2015 / 2065 mm |
| Adjustable lifting pads (min / max) | 160 / 210 mm |
| Platform adjustable range | 1290 - 1400 mm |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 770 mm |
| Product Width | 2,240 mm |
| Product Height | 1,010 mm |
| Product Weight | 440.0 Kg |
| Package Dimensions: | |
| Package Length | 840 mm |
| Package Width | 1,820 mm |
| Package Height | 680 mm |
| Package Weight | 482.00 Kg |
