Cylinder 100 ton stroke 50mm

Lifting and hoisting tools / Hydraulic tools / Cylinders Brand: Mammuth Mammuth

Product Code: MC10050

EAN: 8720028049288

Availability: Available

€ 260.15 Incl. VAT https://schema.org/InStock 260.15 EUR € 260.15

€ 215.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

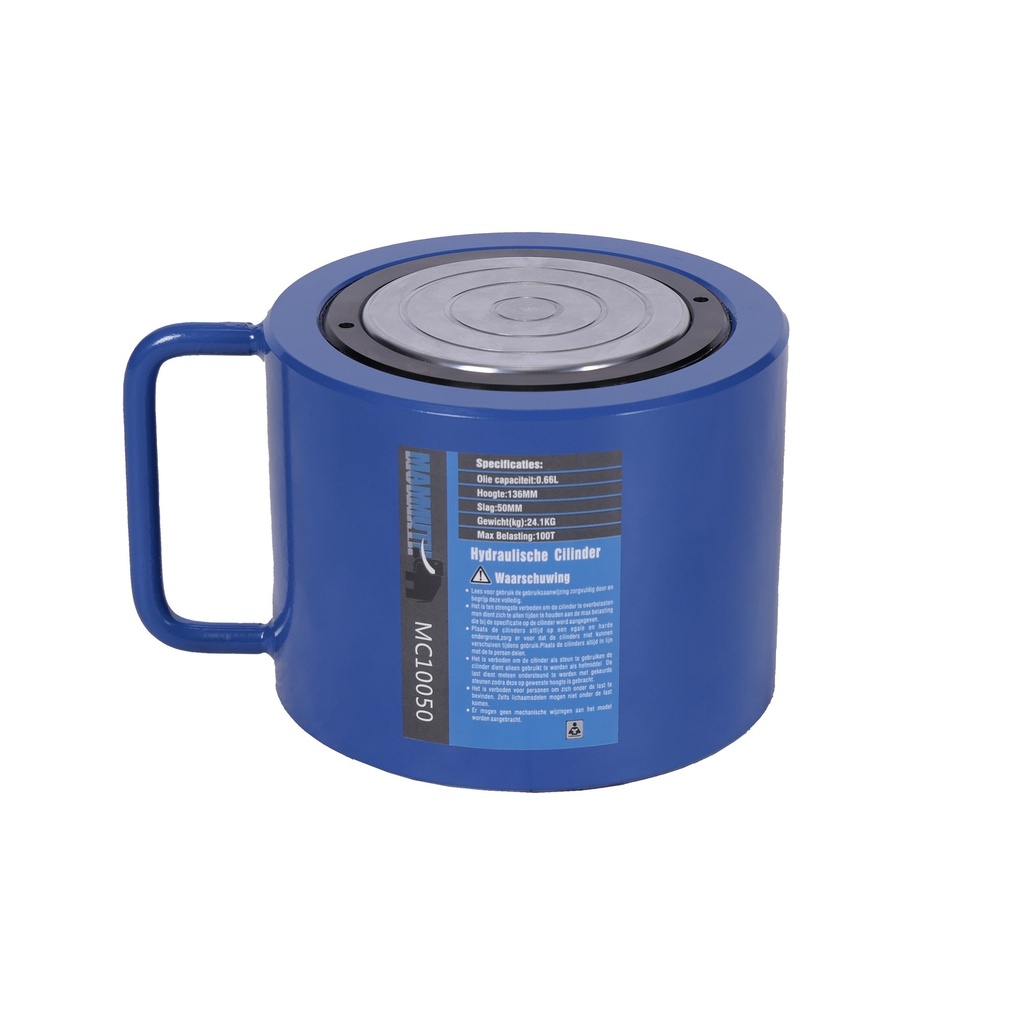

    Hydraulic cylinder
    It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the MFL cylinders are recommended.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.

    • output = 100 ton

    • stroke = 50mm

    • effective area = 95cm^2

    • oil capacity = 0,66 L

    • height of product = 136mm

    • extended height = 186mm

    • outside diameter = 175mm

    • bore diameter = 140mm

    • plunger diameter = 110mm

    • thread for input oil port (ZG) = 3/8" - 19

    • saddle protrusion form plgr = 2mm

    • saddle is removable

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 145 mm
    Product Width 175 mm
    Product Height 135 mm
    Product Weight 23.0 Kg
    Package Dimensions:
    Package Length 155 mm
    Package Width 185 mm
    Package Height 145 mm
    Package Weight 25.00 Kg
