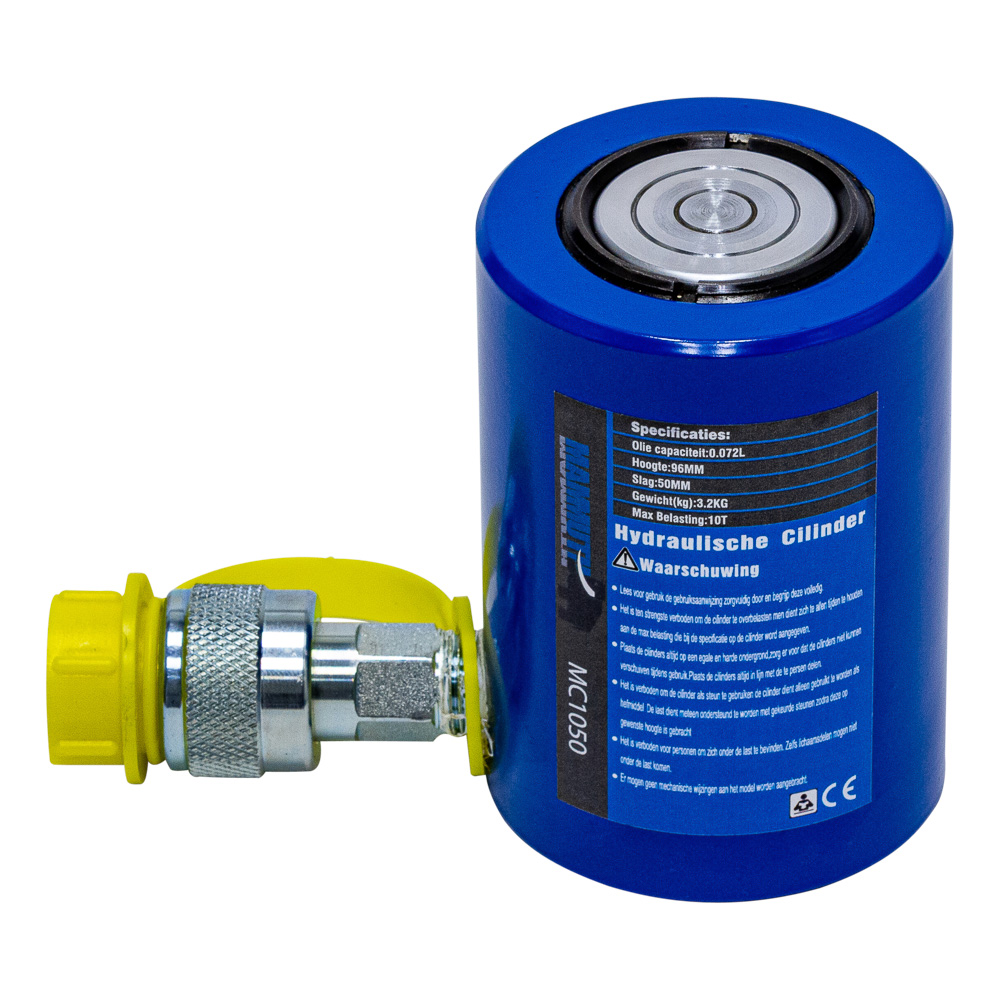

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
- output = 10 ton
- stroke = 50mm
- effective area = 15,2cm^2
- oil capacity = 0,075 L
- height of product = 106mm
- extended height = 156mm
- outside diameter = 73mm
- bore diameter = 44mm
- plunger diameter = 38mm
- thread for input oil port (ZG) = 3/8" - 16,3
- max. pressure = 700bar
Product Dimensions
| Length | 130 mm |
|---|---|
| Width | 73 mm |
| Height | 106 mm |
| Weight | 3.0 kg |
Package Dimensions
| Length | 385 mm |
|---|---|
| Width | 185 mm |
| Height | 125 mm |
| Weight | 4.00 kg |
