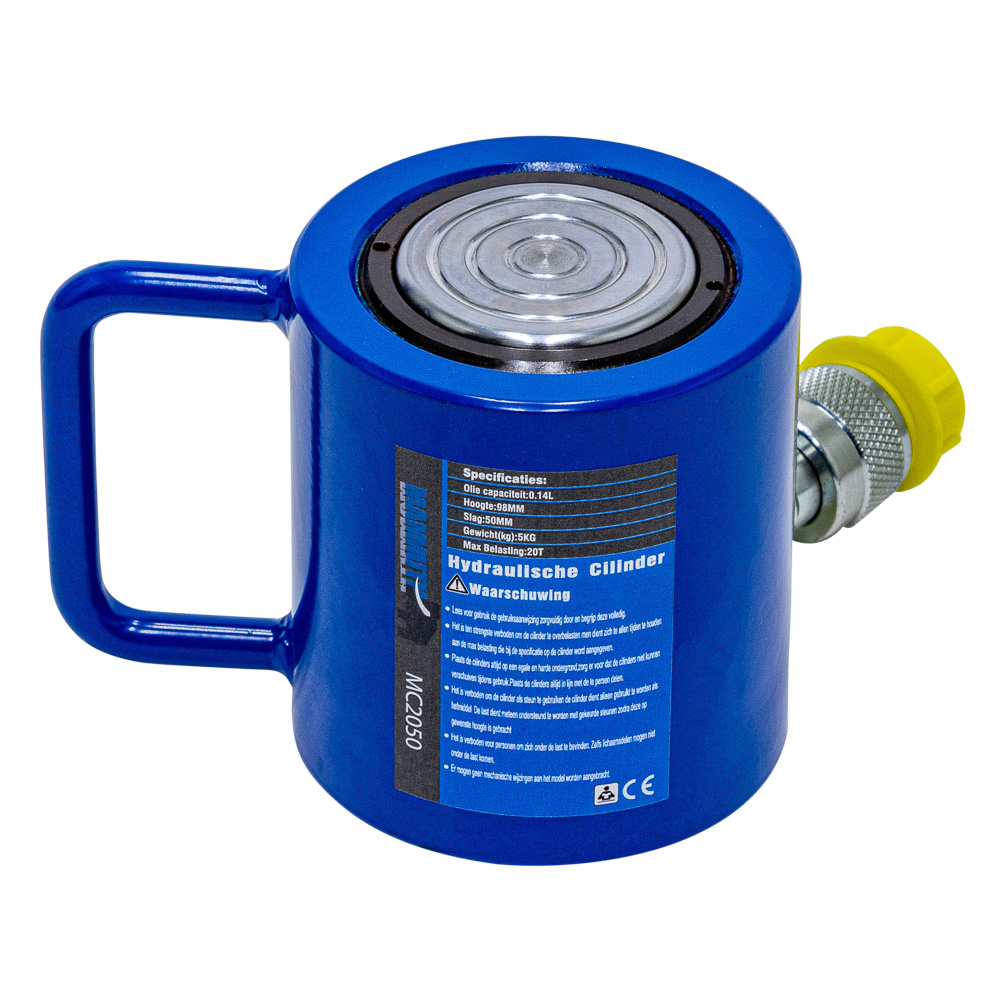

Cylinder 20 ton stroke 50mm

Brand: Mammuth

Product Code: MC2050

EAN: 8720028075652

Availability: Sold Out

https://www.valkenpower.com/web/image/product.template/52592/image_1920?unique=95f32fa

€ 96.80 Incl. VAT 96.8 EUR € 96.80

€ 80.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Hydraulic cylinder

    It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.

    - output = 20 ton
    - stroke = 50mm
    - effective area = 22cm^2
    - oil capacity = 0,14 L
    - height of product = 98mm
    - extended height = 148mm
    - outside diameter = 88mm
    - bore diameter = 65mm
    - plunger diameter = 53mm
    - thread for input oil port (ZG) = 3/8" - 19
    - saddle protrusion form plgr = 2mm
    - saddle is removable
    - max. pressure = 700bar

    Product Dimensions:
    Product Length 160 mm
    Product Width 90 mm
    Product Height 100 mm
    Product Weight 4.0 Kg
    Package Dimensions:
    Package Length 240 mm
    Package Width 275 mm
    Package Height 225 mm
    Package Weight 5.00 Kg
