Flat cylinder 10 ton stroke 11mm

Brand: Mammuth

Product Code: MFL10

EAN: 8720028049998

Availability: Sold Out

https://www.valkenpower.com/web/image/product.template/52740/image_1920?unique=edce301

€ 78.65 Incl. VAT 78.65 EUR € 78.65

€ 65.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

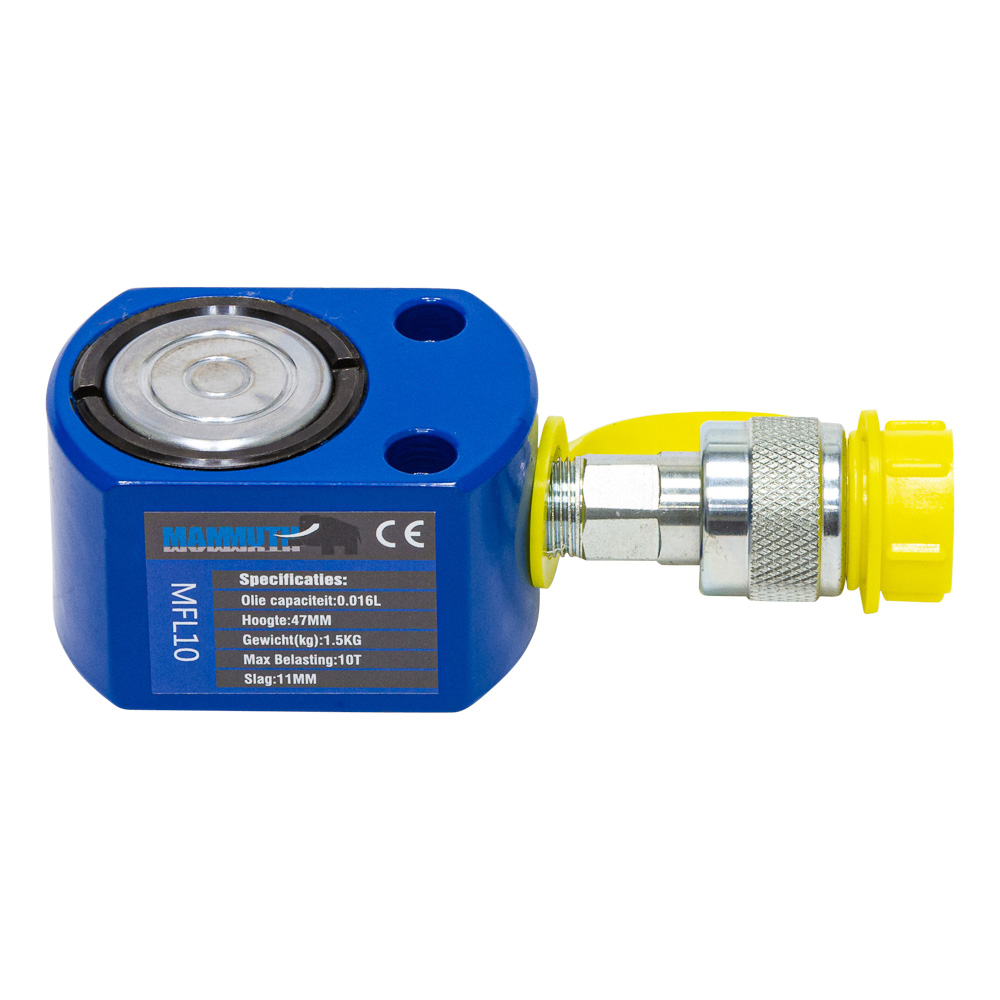

    Flat cylinder

    This cylinder is suit for working in narrowness.
    The surface of the plunger is finished with a chrome plate.

    • output = 10 ton

    • stroke = 11mm

    • effective area = 11,3cm^2

    • oil capacity = 0,016 L

    • height of product = 47mm

    • extended height = 58mm

    • outside diameter = 81x56mm

    • bore diameter = 43mm

    • plunger diameter = 38mm

    • thread for oil input = 3/8''-19

    • saddle protusion form Plgr = 2mm

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 145 mm
    Product Width 55 mm
    Product Height 45 mm
    Product Weight 1.5 Kg
    Package Dimensions:
    Package Length 155 mm
    Package Width 65 mm
    Package Height 55 mm
    Package Weight 2.00 Kg
