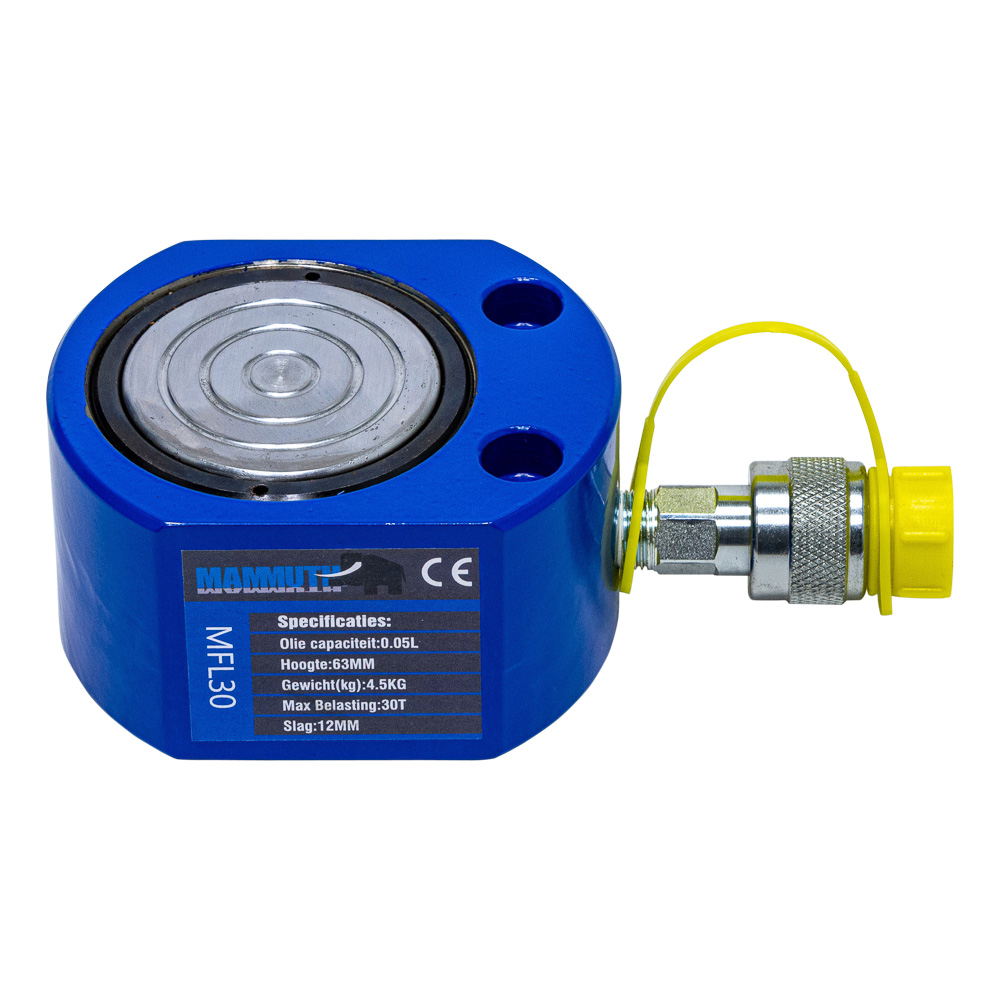

Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 30 Ton
stroke = 12mm
effective area = 31,1cm^2
oil capacity = 0.05 L
height of product = 63mm
extended height = 75mm
outside diameter = 115x95mm
bore diameter = 75mm
plunger diameter = 63mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Product Dimensions
| Length | 185 mm |
|---|---|
| Width | 95 mm |
| Height | 63 mm |
| Weight | 4.5 kg |
Package Dimensions
| Length | 255 mm |
|---|---|
| Width | 155 mm |
| Height | 105 mm |
| Weight | 5.00 kg |
