Flat cylinder 50 ton stroke 16mm

Brand: Mammuth

Product Code: MFL50

EAN: 8720028053438

Availability: Available

https://www.valkenpower.com/web/image/product.template/52600/image_1920?unique=95f32fa

€ 151.25 Incl. VAT 151.25 EUR € 151.25

€ 125.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

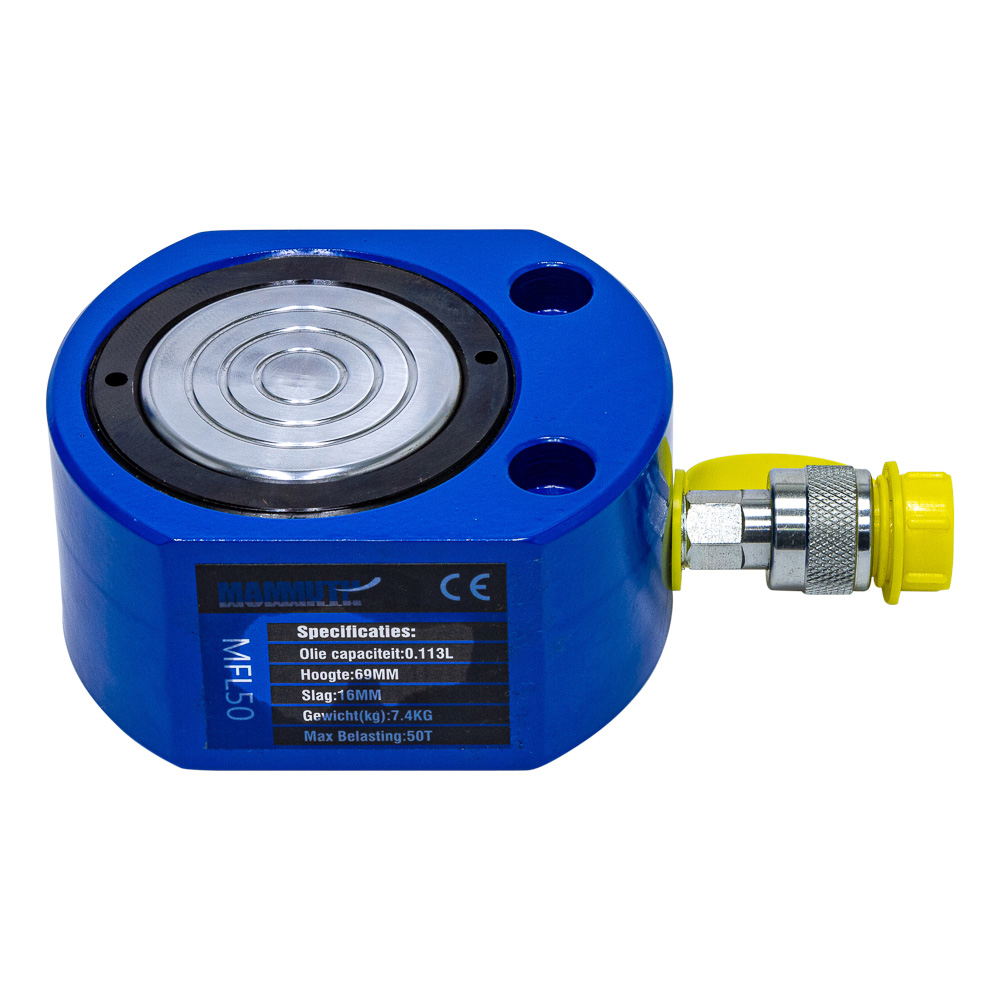

    Flat cylinder

    This cylinder is suit for working in narrowness.
    The surface of the plunger is finished with a chrome plate.
    Plunger has the function of retracting automatically.

    • output = 50 Ton

    • stroke = 16mm

    • effective area = 56,7cm^2

    • oil capacity = 0.113 L

    • height of product = 69mm

    • extended height = 85mm

    • outside diameter = 138x115mm

    • bore diameter = 95mm

    • plunger diameter = 85mm

    • thread for oil input = 3/8''-19

    • saddle protusion form Plgr = 2mm

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 215 mm
    Product Width 120 mm
    Product Height 70 mm
    Product Weight 7.0 Kg
    Package Dimensions:
    Package Length 255 mm
    Package Width 155 mm
    Package Height 110 mm
    Package Weight 8.00 Kg
