MIG MAG welding machine synergetic 350A

Welding and cutting equipment / MIG / MAG welding machines Brand: Soldatech Soldatech

Product Code: ML350YHG

EAN: 8720028090488

Availability: Available

€ 2,420.00 Incl. VAT https://schema.org/InStock 2420.0 EUR € 2,420.00

€ 2,000.00

  • Voltage
  • Frequency
  • Input power
  • Circuit breaker
  • No load Voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding current range
  • Weldable welding wire
  • Protection class

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

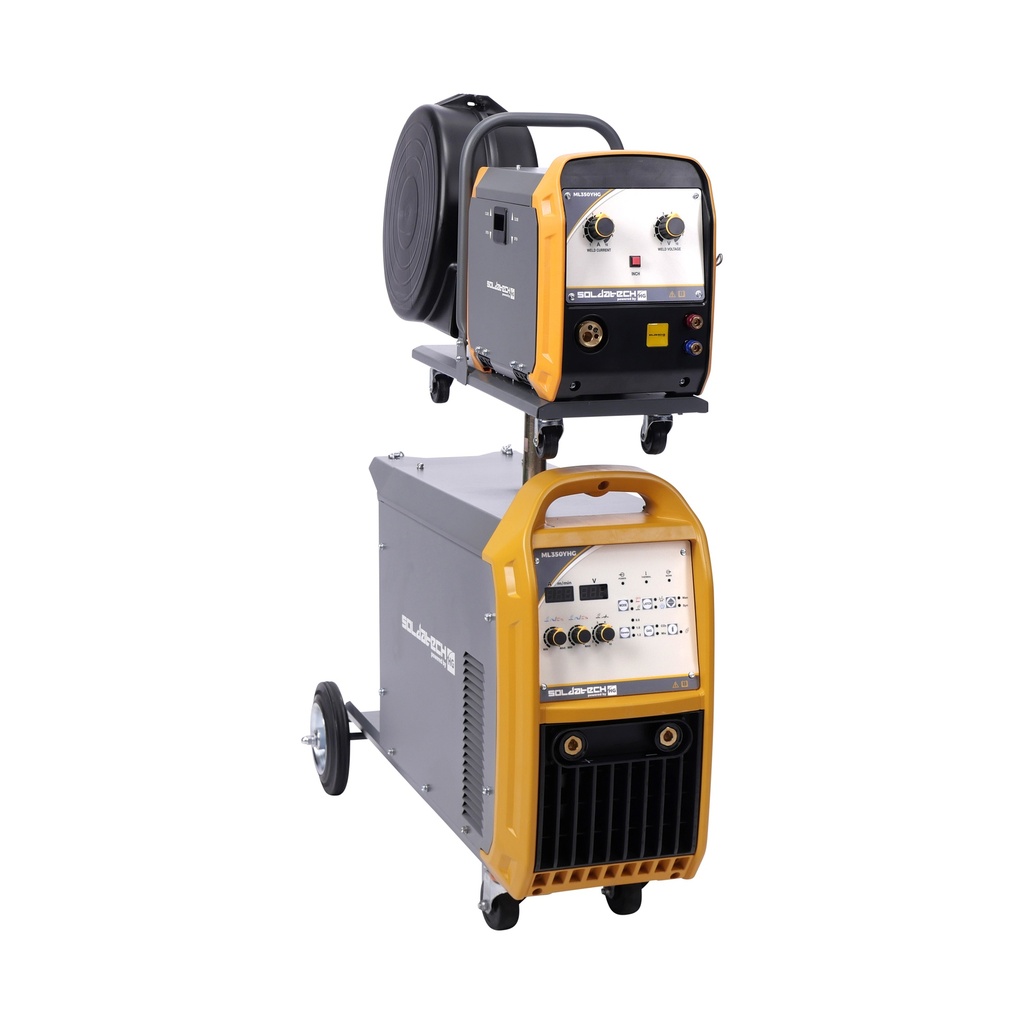

MIG/MAG 350A welding inverter / synergetic inverter / welding machine

This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.

The modern IGBT inverter technology ensures that the ML350YHG delivers sustainable performance with more power and a very high duty cycle. The ML350YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Furthermore, the mobile wire feed unit is equipped with a control panel on which welding voltage and current strength, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.

The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).

Each ML350YHG comes standard including:

  • Soldatech MLT36M4 MIG torch with Euro connector and 4m cable

  • Welding ground clamp with 3m 35mm² cable

  • European dinse couplers 13mm

  • Gas line including quick coupling 7m

  • Intermediate cable bundle grommet 5m

  • 5-pin 32A plug with 3.5m 4x4mm² cable

  • 4x Wire drive roll: 2x 0.8 + 1.0 and 2x 1.2 + 1.6

Technical specifications:

  • voltage = 400V - 3 phase

  • frequency = 50/60Hz

  • circuit breaker = 32A B-char

  • input power = 16.8kVA

  • no load voltage = 73V

  • duty cycle (at 20°C ambient temperature) = 100% - 350A
  • duty cycle (at 40°C ambient temperature) = 60% - 350A
  • welding current range MIG/MAG = 40 - 350A

  • welding current range MMA = 40 - 350A

  • weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm

  • protection class = IP21S

  • dimensions = 1000 x 420 x 1200mm

  • weight = 69kg

Product Dimensions:
Product Length 1,000 mm
Product Width 420 mm
Product Height 1,200 mm
Product Weight 69.0 Kg
Package Dimensions:
Package Length 1,035 mm
Package Width 495 mm
Package Height 735 mm
Package Weight 87.00 Kg

  • Tray with wheels and chain for gas bottle

  • Mobile wire feed unit

  • Synergetic

  • ABS shock resistant housing

  • 5 years warranty

Specifications

Voltage 400V - 3 Phase
Frequency 50/60 Hz
Input power 16.8kVA
Circuit breaker 32A B-char
No load Voltage 73V
Duty cycle @20C 100% - 350A
Duty cycle @40C 60% - 350A
Welding current range MIG 40 - 350A / MMA 40 - 350A
Weldable welding wire 0.8 / 1.0 / 1.2 / 1.6 mm
Protection class IP21S
