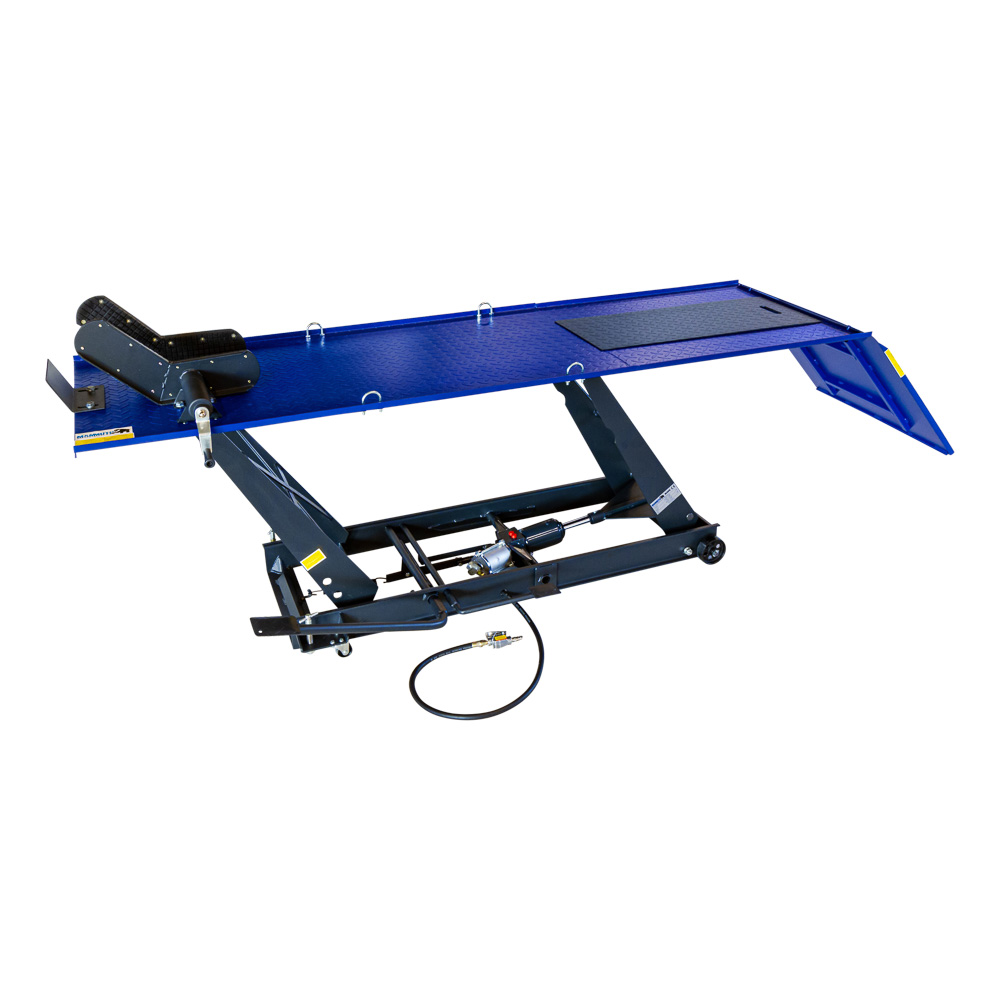

This Mammuth motorcycle lift table makes lifting motorcycles during maintenance or repairs easy and safe. The adjustable feet ensure a stable setup. For safety, the lift table is equipped with a locking pin to prevent unintentional lowering, and the front wheel clamp holds the motorcycle firmly in place.
-
Pneumatic: Lifting without physical effort.
-
Anti-slip surface: Provides extra grip.
- Removable plate: Allows easy access to the rear wheel.
-
Tie-down points: For securing the motorcycle with straps.
- Mobile: Easy to move.
Specifications
Material | Steel |
Lifting capacity | 450 kg |
Min. height | 170 mm |
Max. height | 790 mm |
Platform length | 2200 mm |
Platform width | 680 mm |
Ramp length | 650 mm |
Opening front wheel clamp max. | 230 mm |
Lifting time | 50 sec |
Air connection | 1/4 NPT |
Working air pressure | 8 bar |
Air consumption | 120 L/min |
Wheel material | Steel |
Front wheel diameter | ø89 mm |
Rear wheel diameter | ø43 mm |
Oil capacity | 0.38 L |
Oil type | OHCH15V |
Product Dimensions: | |
---|---|
Product Length | 2,200 mm |
Product Width | 680 mm |
Product Height | 170 mm |
Product Weight | 127.0 Kg |
Package Dimensions: | |
Package Length | 750 mm |
Package Width | 2,280 mm |
Package Height | 290 mm |
Package Weight | 152.00 Kg |
