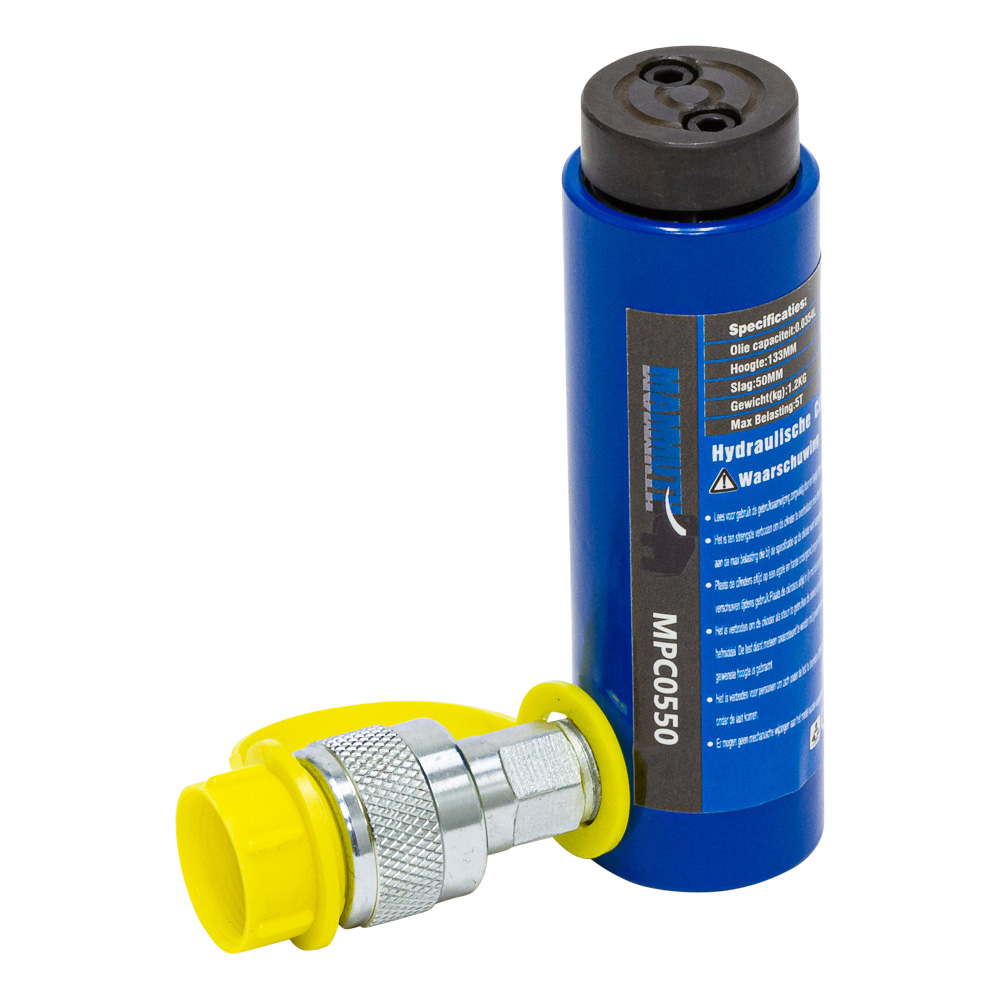

Cylinder 5 ton stroke 50mm

Brand: Mammuth

Product Code: MPC0550

EAN: 8720028046744

Availability: Available

https://www.valkenpower.com/web/image/product.template/50430/image_1920?unique=0b719b5

€ 48.40 Incl. VAT 48.4 EUR € 48.40

€ 40.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Hydraulic cylinder

    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    - output = 5 ton
    - stroke = 50mm
    - effective area = 9,6cm^2
    - oil capacity = 0,036 L
    - height of product = 133mm
    - extended height = 183mm
    - outside diameter = 40mm
    - bore diameter = 30mm
    - plunger diameter = 25mm
    - thread for input oil port (ZG) = 1/4" - 18
    - saddle protrusion form plgr = 13mm
    - saddle is removable
    - max. pressure = 700bar

    Product Dimensions:
    Product Length 110 mm
    Product Width 40 mm
    Product Height 135 mm
    Product Weight 1.2 Kg
    Package Dimensions:
    Package Length 385 mm
    Package Width 185 mm
    Package Height 125 mm
    Package Weight 2.00 Kg
