Cylinder 100 ton stroke 200mm

Lifting and hoisting tools / Hydraulic tools / Cylinders Brand: Mammuth Mammuth

Product Code: MPC100200

EAN: 8720028077007

Availability: Sold Out

Expected back in stock: 9 - 11 weeks

€ 605.00 Incl. VAT https://schema.org/SoldOut 605.0 EUR € 605.00

€ 500.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

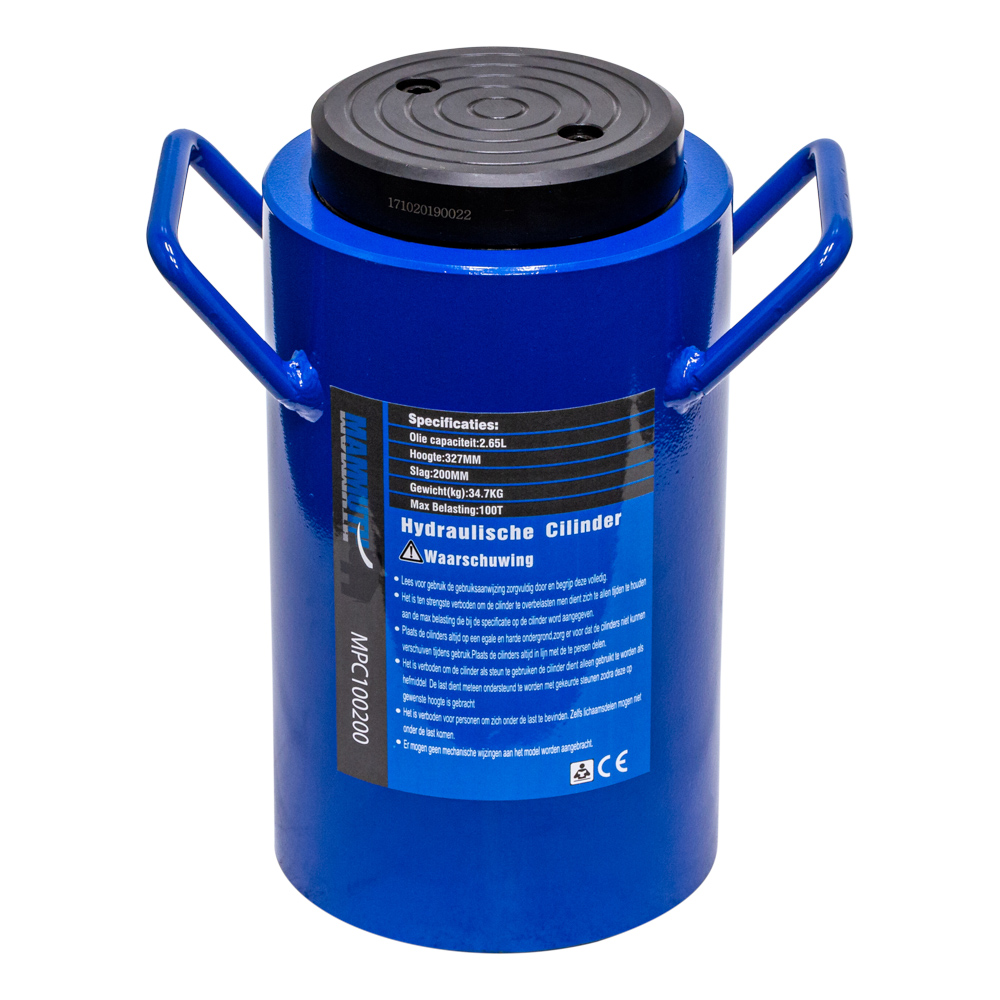

    Hydraulic cylinder

    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    • output = 100 ton

    • stroke = 200mm

    • effective area = 132,7cm^2

    • oil capacity = 2,65 L

    • height of product = 312mm

    • extended height = 527mm

    • outside diameter = 175mm

    • bore diameter = 130mm

    • plunger diameter = 110mm

    • thread for input oil port (ZG) = 3/8" - 22,5

    • saddle protrusion form plgr = 27mm

    • saddle is removable

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 270 mm
    Product Width 200 mm
    Product Height 320 mm
    Product Weight 48.0 Kg
    Package Dimensions:
    Package Length 300 mm
    Package Width 300 mm
    Package Height 395 mm
    Package Weight 50.00 Kg
