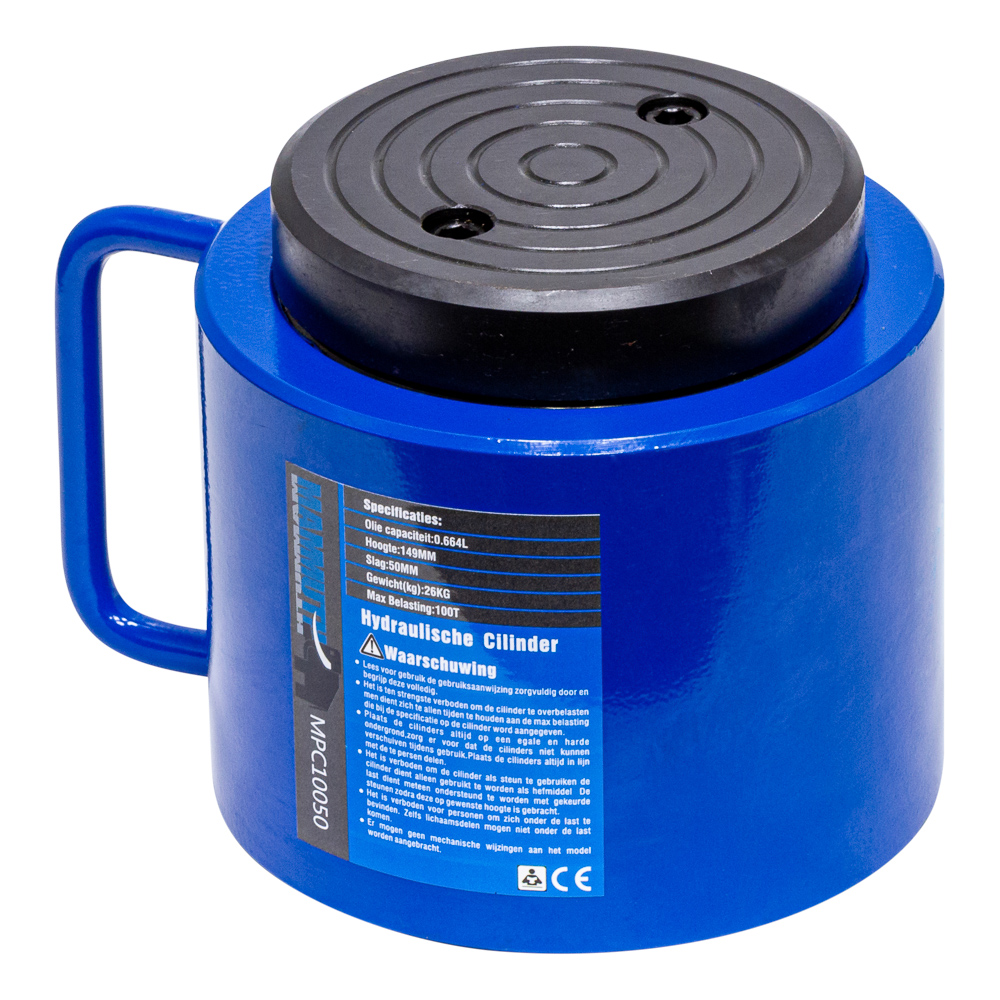

Cylinder 100 ton stroke 50mm

[MPC10050] Cylinder 100 ton stroke 50mm

Lifting and hoisting tools / Hydraulic tools / Cylinders Brand: Mammuth Mammuth

Product Code: MPC10050

EAN: 8720028053353

Availability: Available

https://www.valkenpower.com/web/image/product.template/52609/image_1920?unique=56ac95e

€ 200.00 200.0 EUR € 200.00

€ 200.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Hydraulic cylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

  • output = 100 ton

  • stroke = 50mm

  • effective area = 132,7cm^2

  • oil capacity = 0,660 L

  • height of product = 162mm

  • extended height = 199mm

  • outside diameter = 177mm

  • bore diameter = 130mm

  • plunger diameter = 110mm

  • thread for input oil port (ZG) = 3/8" - 22,5

  • saddle protrusion form plgr = 27mm

  • saddle is removable

  • max. pressure = 700bar

Product Dimensions:
Product Length 245 mm
Product Width 175 mm
Product Height 160 mm
Product Weight 26.0 Kg
Package Dimensions:
Package Length 300 mm
Package Width 195 mm
Package Height 210 mm
Package Weight 27.00 Kg
Package Type:
1 Pcs
