Cylinder 10 ton stroke 150mm

Lifting and hoisting tools / Hydraulic tools / Cylinders Brand: Mammuth Mammuth

Product Code: MPC10150

EAN: 8720028046829

Availability: Available

€ 108.90 Incl. VAT https://schema.org/InStock 108.9 EUR € 108.90

€ 90.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

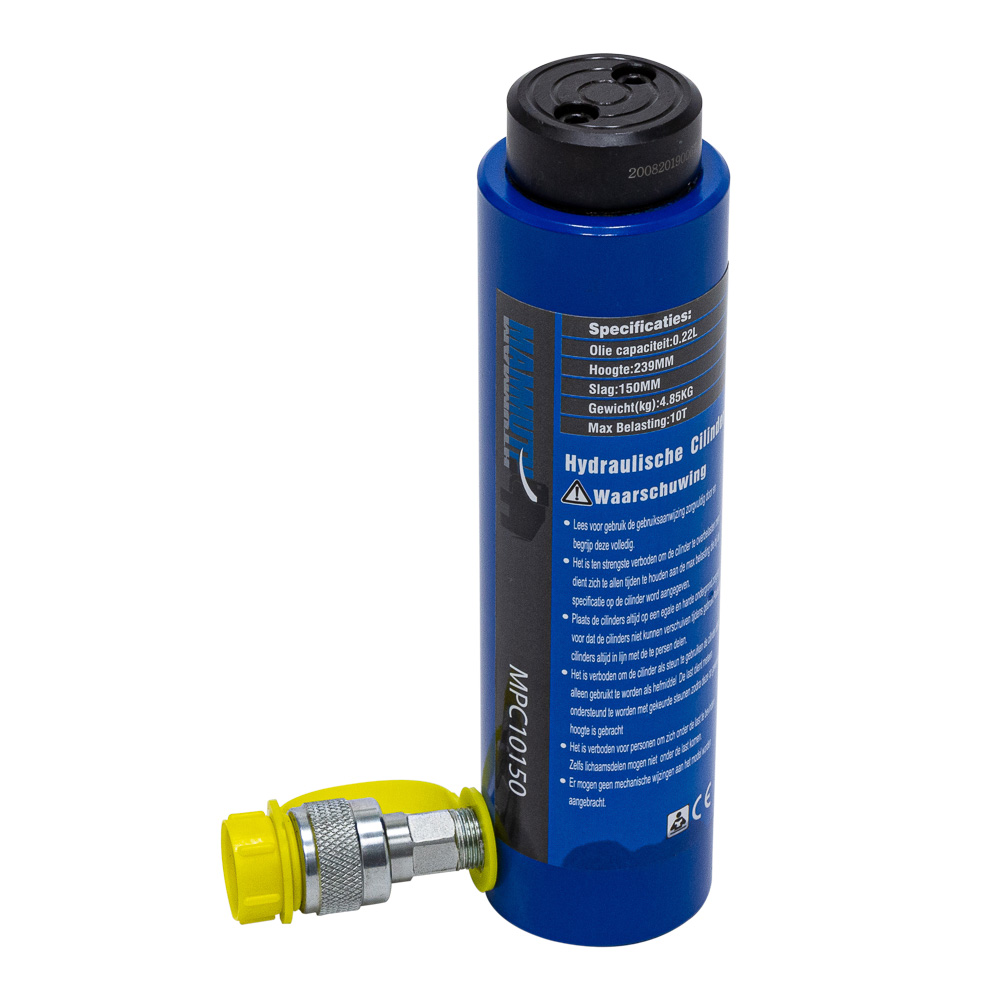

    Hydraulic cylinder

    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    - output = 10 ton
    - stroke = 150mm
    - effective area = 15,2cm^2
    - oil capacity = 0,228 L
    - height of product = 241mm
    - extended height = 389mm
    - outside diameter = 62mm
    - bore diameter = 44mm
    - plunger diameter = 38mm
    - thread for input oil port (ZG) = 3/8" - 20
    - saddle protrusion form plgr = 21mm
    - saddle is removable
    - max. pressure = 700bar

    Product Dimensions:
    Product Length 130 mm
    Product Width 60 mm
    Product Height 240 mm
    Product Weight 4.9 Kg
    Package Dimensions:
    Package Length 390 mm
    Package Width 190 mm
    Package Height 125 mm
    Package Weight 6.00 Kg
