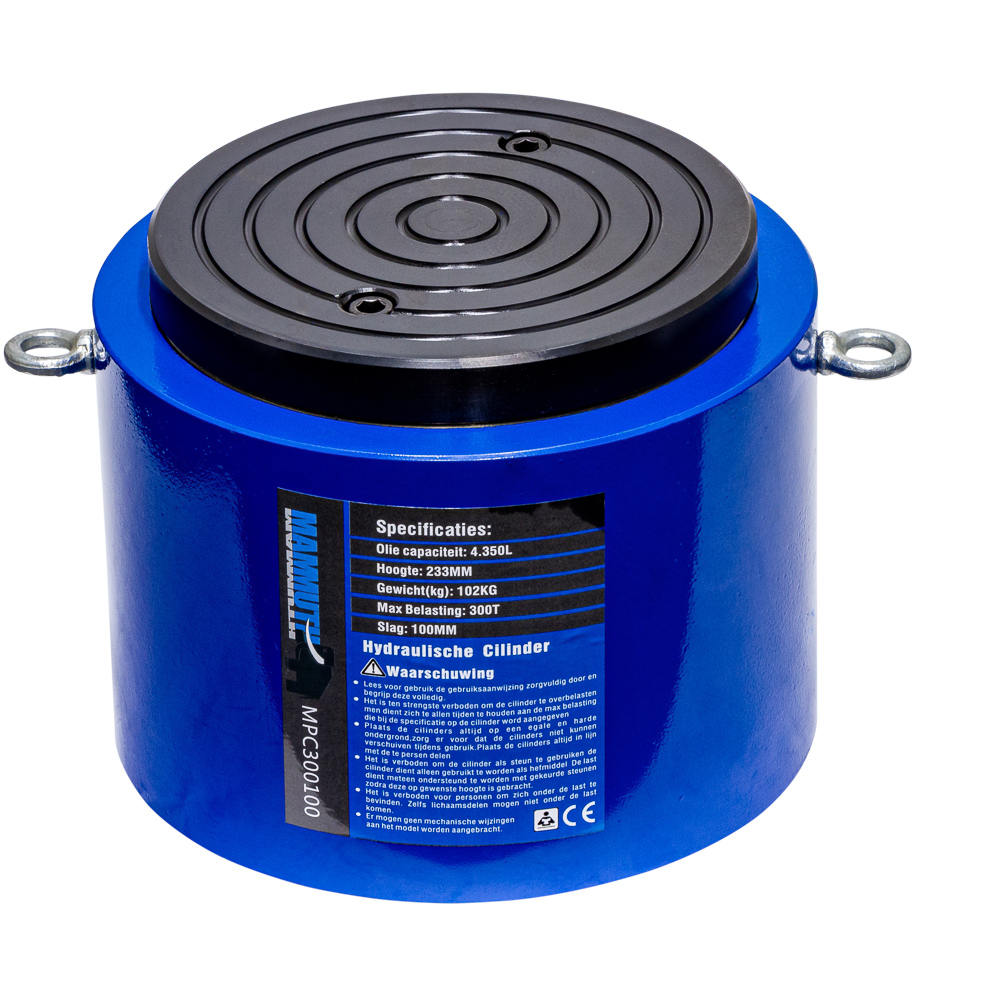

Cylinder 300 ton stroke 100mm

Brand: Mammuth

Product Code: MPC300100

EAN: 8720028076932

Availability: Available

https://www.valkenpower.com/web/image/product.template/52611/image_1920?unique=0b719b5

€ 968.00 Incl. VAT 968.0 EUR € 968.00

€ 800.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Hydraulic cylinder

    Hardy underlay to avoid axis break when it is overloading.
    The surface of principle axis is finished with chrome plate.
    Plunger has the function of retracting automatically.
    Surface coating resists corrosion.

    • output = 300 ton

    • stroke = 100mm

    • effective area = 415,3cm^2

    • oil capacity = 4,153 L

    • height of product = 233mm

    • extended height = 333mm

    • outside diameter = 287mm

    • bore diameter = 230mm

    • plunger diameter = 210mm

    • thread for input oil port (ZG) = 3/8" - 25,7

    • saddle protrusion form plgr = 31mm

    • saddle is removable

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 360 mm
    Product Width 350 mm
    Product Height 235 mm
    Product Weight 101.0 Kg
    Package Dimensions:
    Package Length 380 mm
    Package Width 370 mm
    Package Height 370 mm
    Package Weight 104.00 Kg
