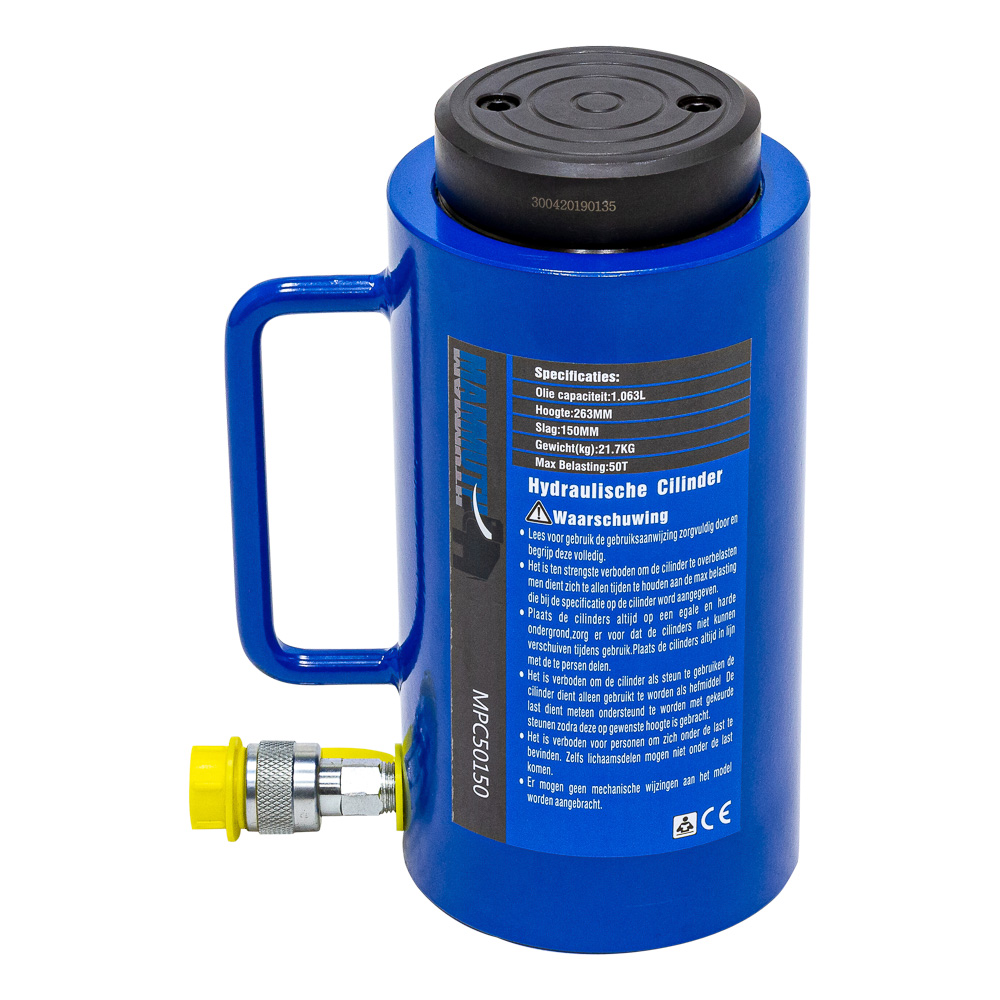

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 150mm
effective area = 70,9cm^2
oil capacity = 1,063 L
height of product = 262mm
extended height = 413mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
| Product Dimensions: | |
|---|---|
| Product Length | 190 mm |
| Product Width | 120 mm |
| Product Height | 265 mm |
| Product Weight | 21.6 Kg |
| Package Dimensions: | |
| Package Length | 385 mm |
| Package Width | 185 mm |
| Package Height | 210 mm |
| Package Weight | 23.00 Kg |
