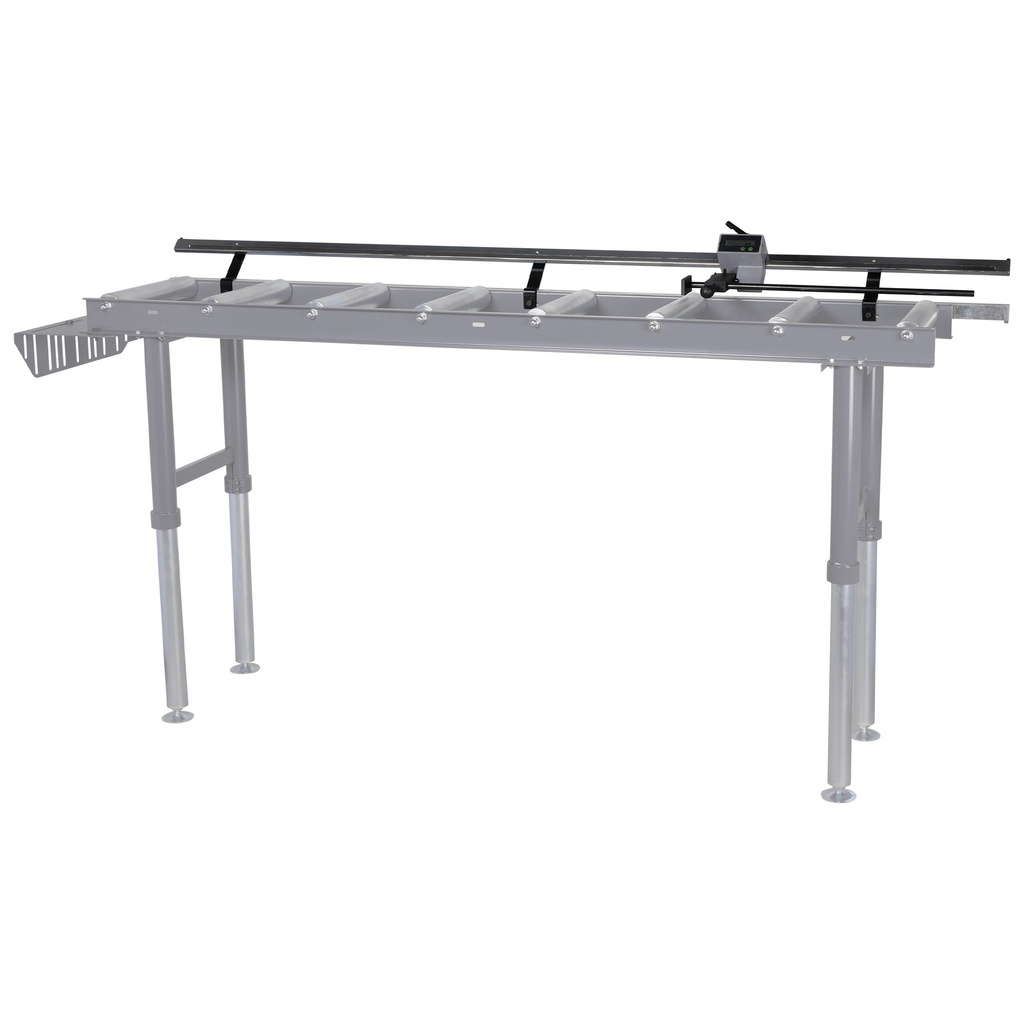

This digital measuring system from Cowley is designed for universal use and fits seamlessly onto 3-meter roller stands. It features a magnetic measuring unit and a foldable stopper for accurate length measurements and repeatable positioning. The lubrication-free linear guide ensures smooth operation.
With a measuring accuracy of ±(0.025 + 0.02 × measuring length in meters), the system is suitable for high-precision series measurements up to 0.05 mm. The memory function automatically saves the last measurement, even after shutdown. Operates on two AA batteries (included) and includes automatic display activation and a power-saving auto-off function.
Key Features:
- Magnetic measuring system – For precise and reliable length measurements.
- Memory function – Automatically stores the last measurement, even when powered off.
- Easy installation – Quick to mount on standard 3-meter roller stands.
Specifications
| Roller stand length | 3000 mm |
| Battery type | 2x AA |
Product Dimensions
| Length | 3,200 mm |
|---|---|
| Width | 140 mm |
| Height | 170 mm |
| Weight | 21.0 kg |
Package Dimensions
| Length | 3,200 mm |
|---|---|
| Width | 140 mm |
| Height | 170 mm |
| Weight | 21.00 kg |
