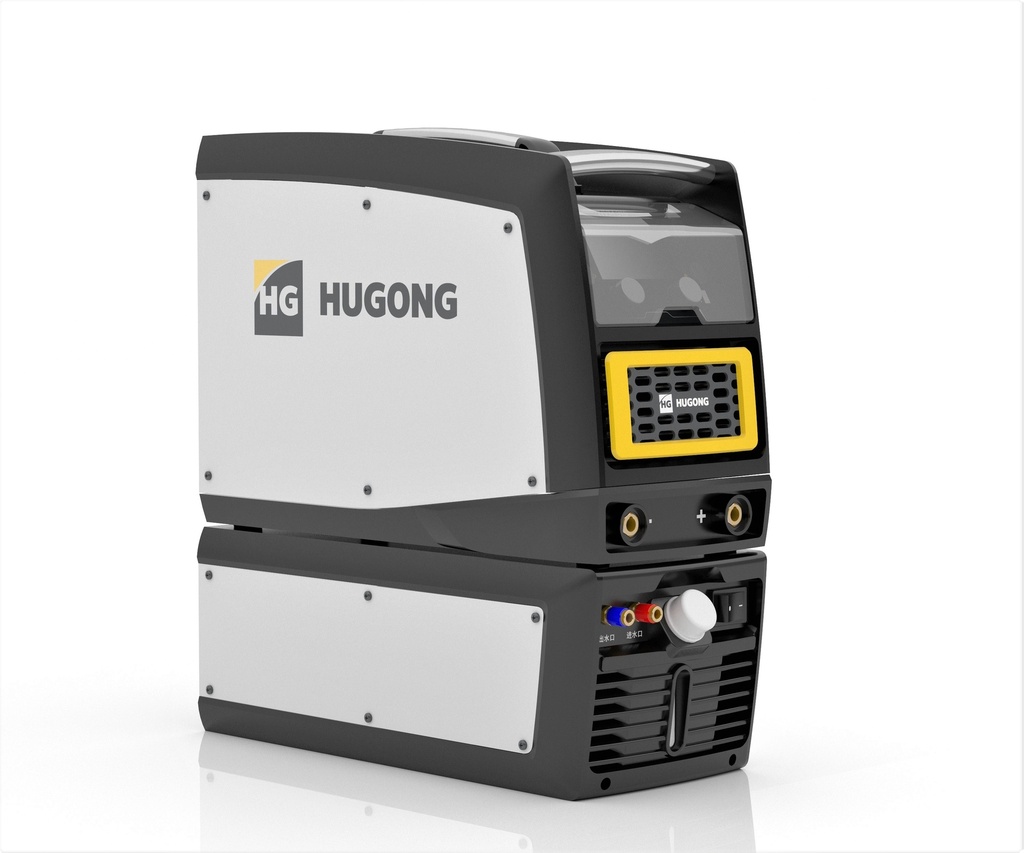

The Hugong Novi AC/DC 315 is suitable for welding steel, stainless steel, copper and aluminium. With HF AC/DC TIG, Lift TIG and MMA, this TIG welder combines multiple welding processes in a single unit for use in workshops, fabrication and production environments.
The machine features an HDVision display with synergic control. Welding parameters are automatically adjusted, and frequently used settings can be stored in one of the 99 memory channels.
The HF-TIG process delivers a 99% arc starting success rate for fast and stable arc ignition. The included water cooling unit efficiently removes heat during prolonged operation, while the extended 5-year manufacturer's warranty is available after online registration.
- 4-in-1 TIG welding process
HF AC/DC TIG, Lift TIG and MMA combined in one welding machine.
- HDVision display with synergic control
Automatic parameter adjustment with 99 memory channels for recurring settings.
- 99% arc starting success rate with HF-TIG
For fast and stable arc ignition.
- Includes water cooling unit
Provides continuous cooling during prolonged operation.
- 5-year warranty after registration
Extended manufacturer’s warranty after online registration.
Set includes:
- TLT18M4Q water-cooled TIG torch, 4 m
- European Dinse connectors, 13 mm
- Ground clamp with 3 m 25 mm² cable
- 4 m gas hose including hose clamp and quick connector (8 mm inner diameter)
- 5-pin 32A plug with 2 m 4x2.5 mm² cable
- TIG accessory kit
Specifications
| Power supply | 400V - 3 Fase |
| Frequency | 50 Hz |
| No load voltage | 67V |
| Welding current range | MMA 10 - 315A, TIG DC 10 - 315A, TIG AC 15 - 315A |
| Duty cycle @20C | 100% - 315A |
| Duty cycle @40C | 60% - 315A |
| Cooling unit content | 5L |
| IP protection rating | IP21S |
Product Dimensions
| Length | 700 mm |
|---|---|
| Width | 265 mm |
| Height | 700 mm |
| Weight | 49.0 kg |
Package Dimensions
| Length | 720 mm |
|---|---|
| Width | 425 mm |
| Height | 875 mm |
| Weight | 55.00 kg |
