Air operated oil pump 1:1 730mm

Shop equipment / Fluid distribution / Oil distribution Brand: Lubeworks Lubeworks

Product Code: OP18A73

EAN: 8720028062140

Availability: Available

€ 211.75 Incl. VAT https://schema.org/InStock 211.75 EUR € 211.75

€ 175.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

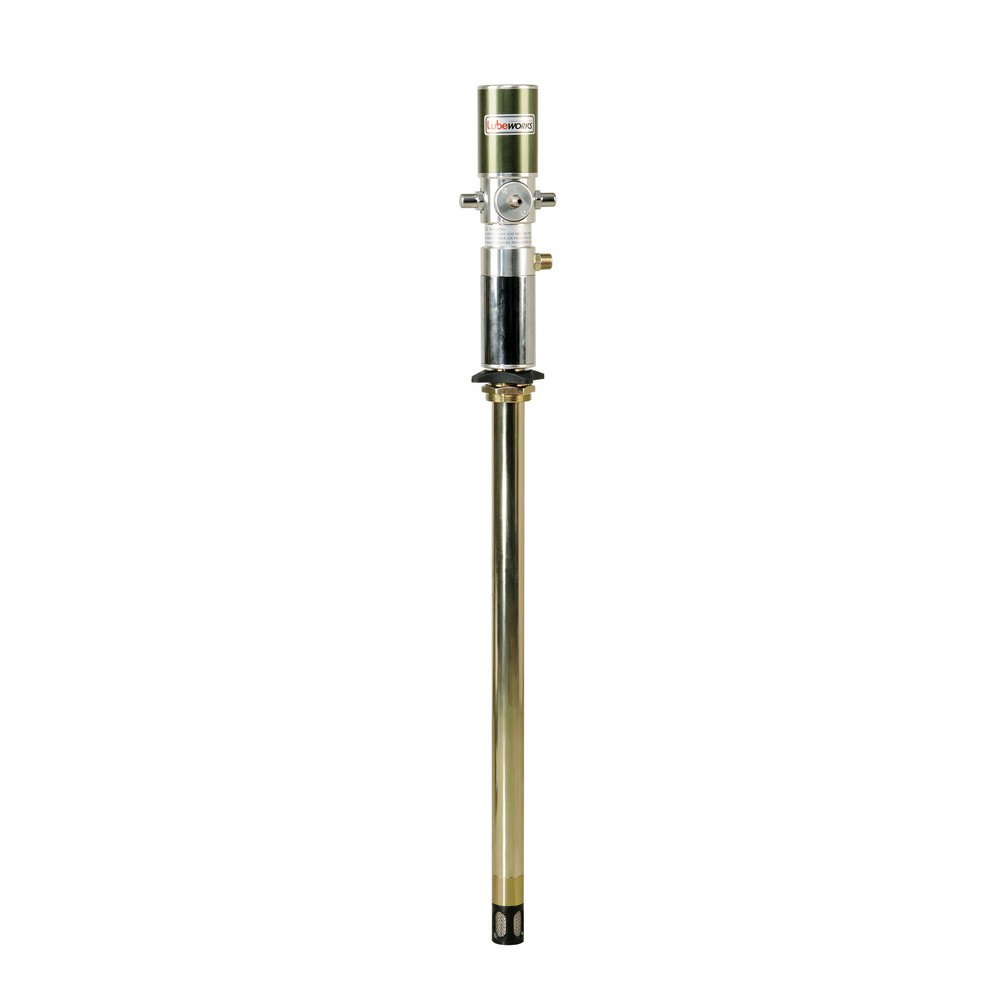

    Air operated oil pump

    The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor.

    - drum application = 50 - 60kgs
    - pressure ratio = 1:1
    - air inlet pressure = 5 - 8 bar
    - max fluid pressure = 8 bar
    - air motor effective diameter = 63mm
    - air consumption = 8 bar 100 L/min
    - max. free flow rate = 18 L/min
    - suction tube diameter = 42mm
    - suction tube length = 730mm
    - air inlet connection = 1/4'' quick plug 1/4'' NPT female
    - oil outlet connection = 1/2''

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 0.0 Kg
    Package Dimensions:
    Package Length 1,350 mm
    Package Width 130 mm
    Package Height 130 mm
    Package Weight 6.00 Kg
