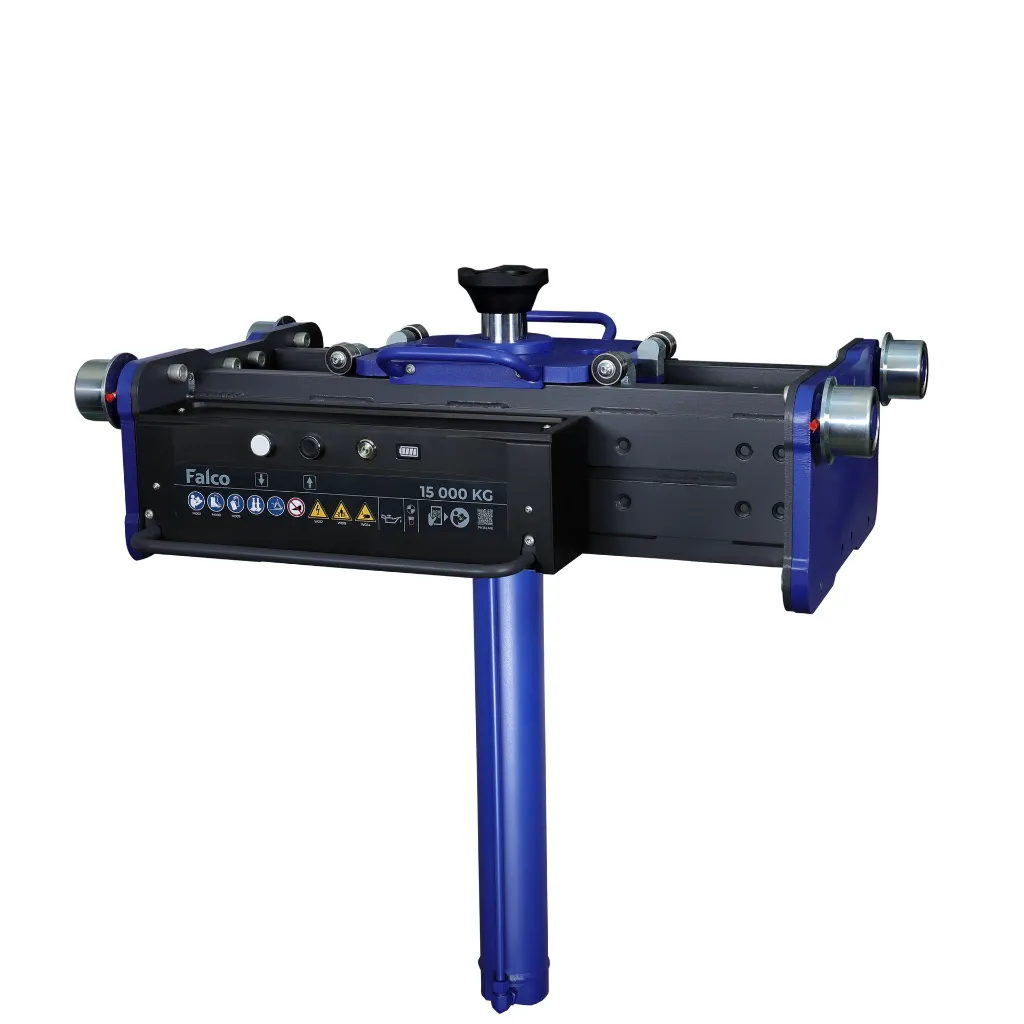

The Falco battery powered pit jack 15 ton is suitable for lifting vans, buses and trucks, among other vehicles, from a workshop pit. Two Fluxon 18V batteries are used for the electrohydraulic drive, eliminating the need for a compressed air connection. These batteries are interchangeable within the Fluxon battery platform.
The medium frame is adjustable in width from 920 to 1220 mm, allowing it to be adapted to different workshop pits. Various adapter plates are available for mounting on the rails, with the correct version depending on the type and dimensions of the rails.
The pit jack is equipped with a long hydraulic cylinder with a stroke of 800 mm. For positioning underneath the vehicle, it can be moved from left to right within the frame.

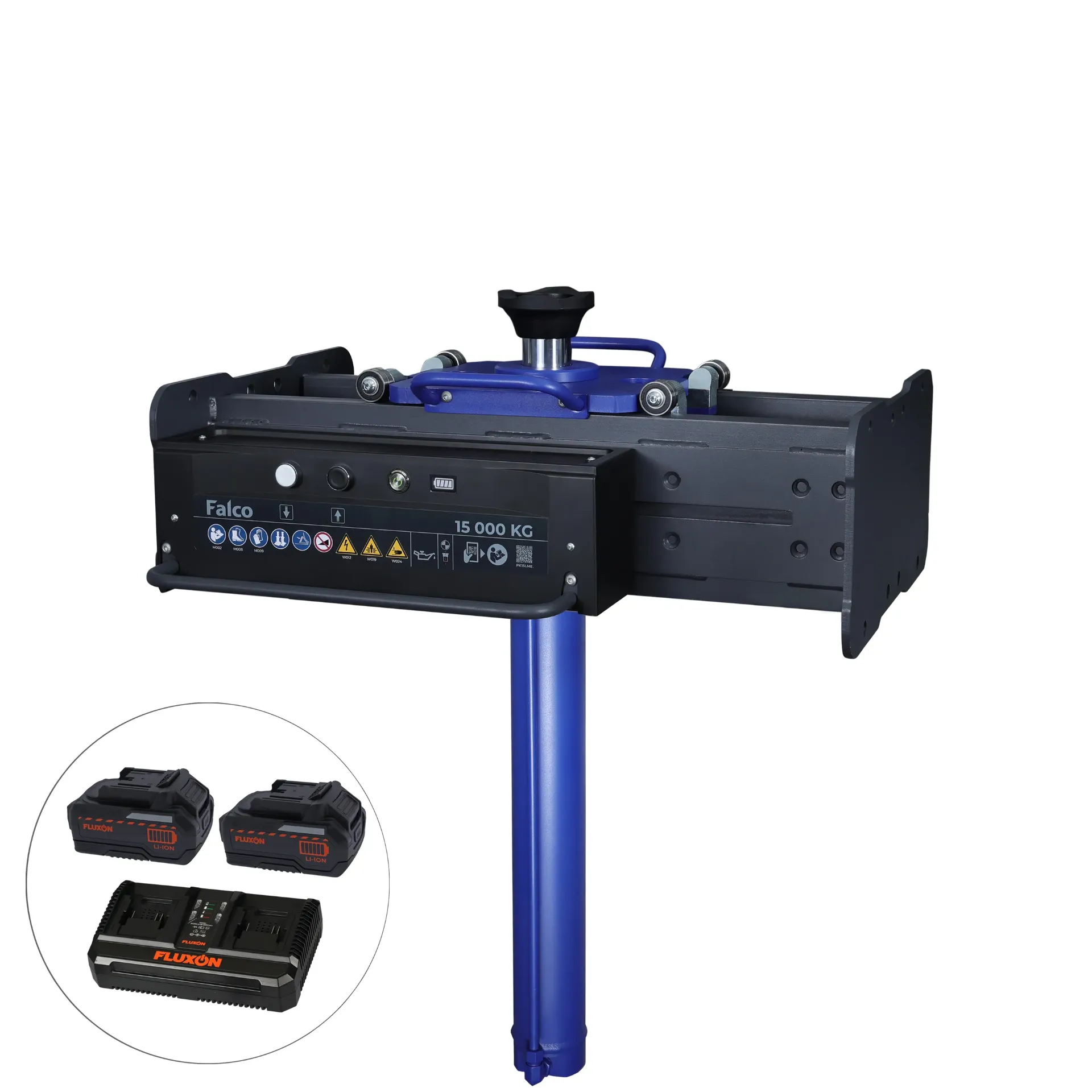

Set includes: two Fluxon 18V 4 Ah batteries IBC18V4 and a dual fast charger IC80A. Adapter plates are not included and are available separately.
- Works with 2 Fluxon 4 Ah batteries
No compressed air connection required and interchangeable within the Fluxon battery platform.
- Medium frame from 920 to 1220 mm
Adjustable in width.

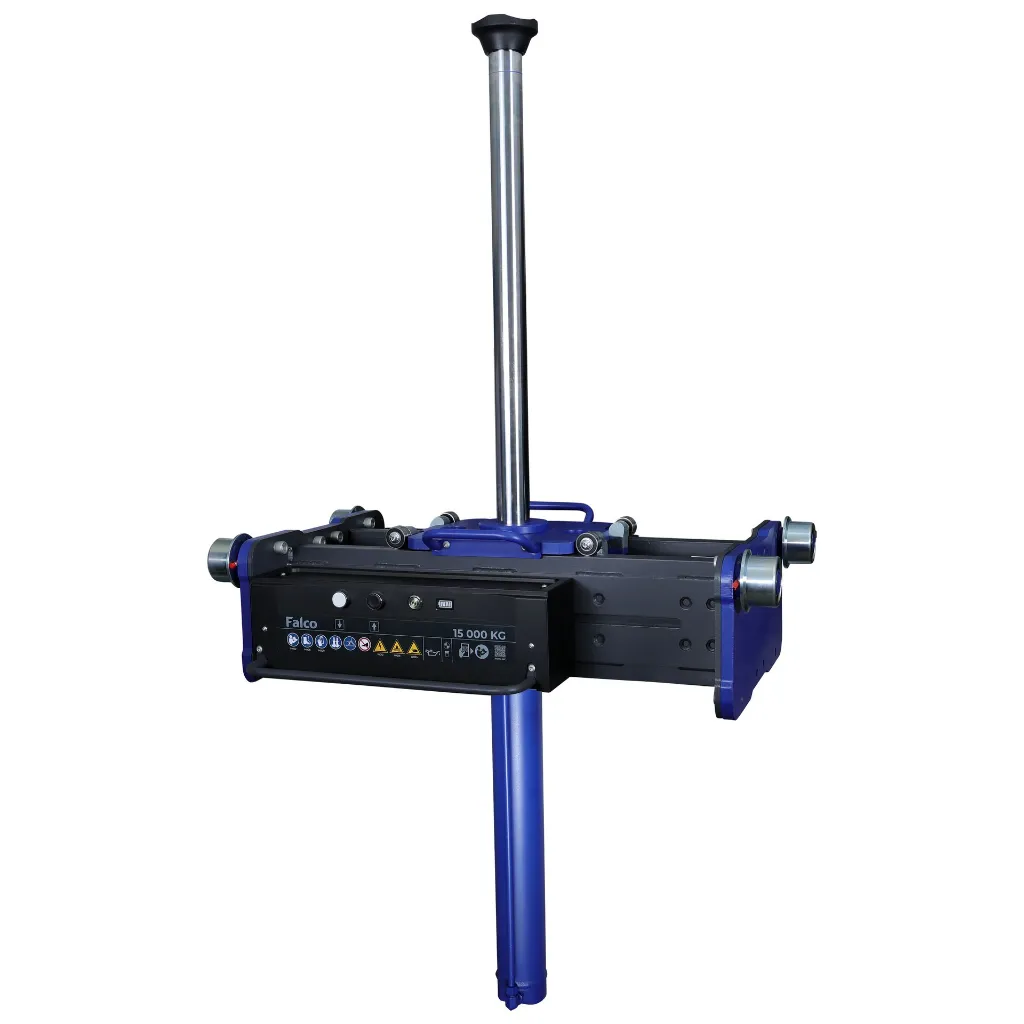

- Long movable cylinder
Has a stroke of 800 mm and can be moved from left to right within the frame.
- Suitable for different workshop pits
By choosing from different adapter plates, the pit jack can be adapted to the type and dimensions of the rails.
- 15 ton lifting capacity
Specifications
| Lifting capacity | 15000 kg |
| Power | 800 W |
| Number of required batteries | 2 × 18 V 4 Ah |
| Battery included | Yes |
| Stroke | 800 mm |
| Oil capacity | 5.2 L |
| Oil type | CH32 |

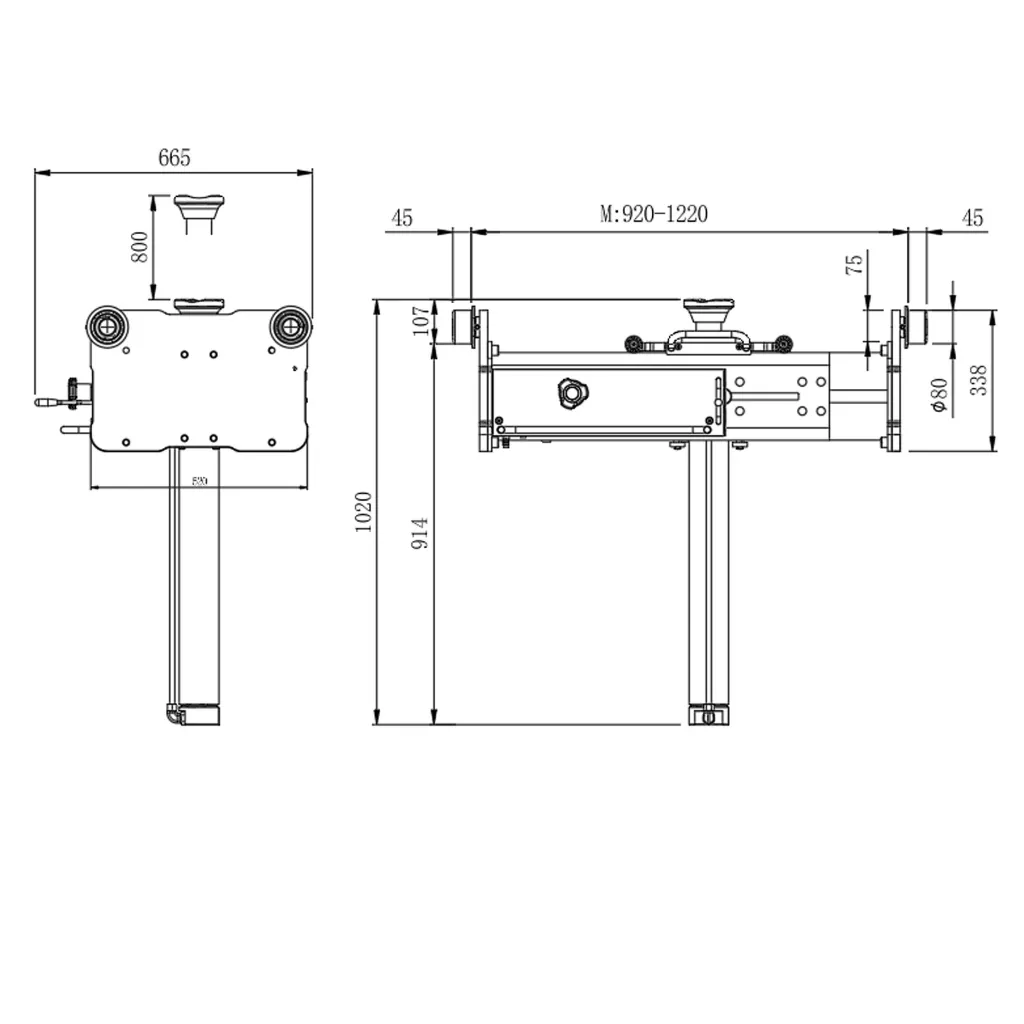

Product Dimensions
| Length | 1,310 mm |
|---|---|
| Width | 665 mm |
| Height | 1,020 mm |
| Weight | 279.68 kg |
Package Dimensions
| Length | 1,075 mm |
|---|---|
| Width | 680 mm |
| Height | 680 mm |
| Weight | 316.82 kg |
