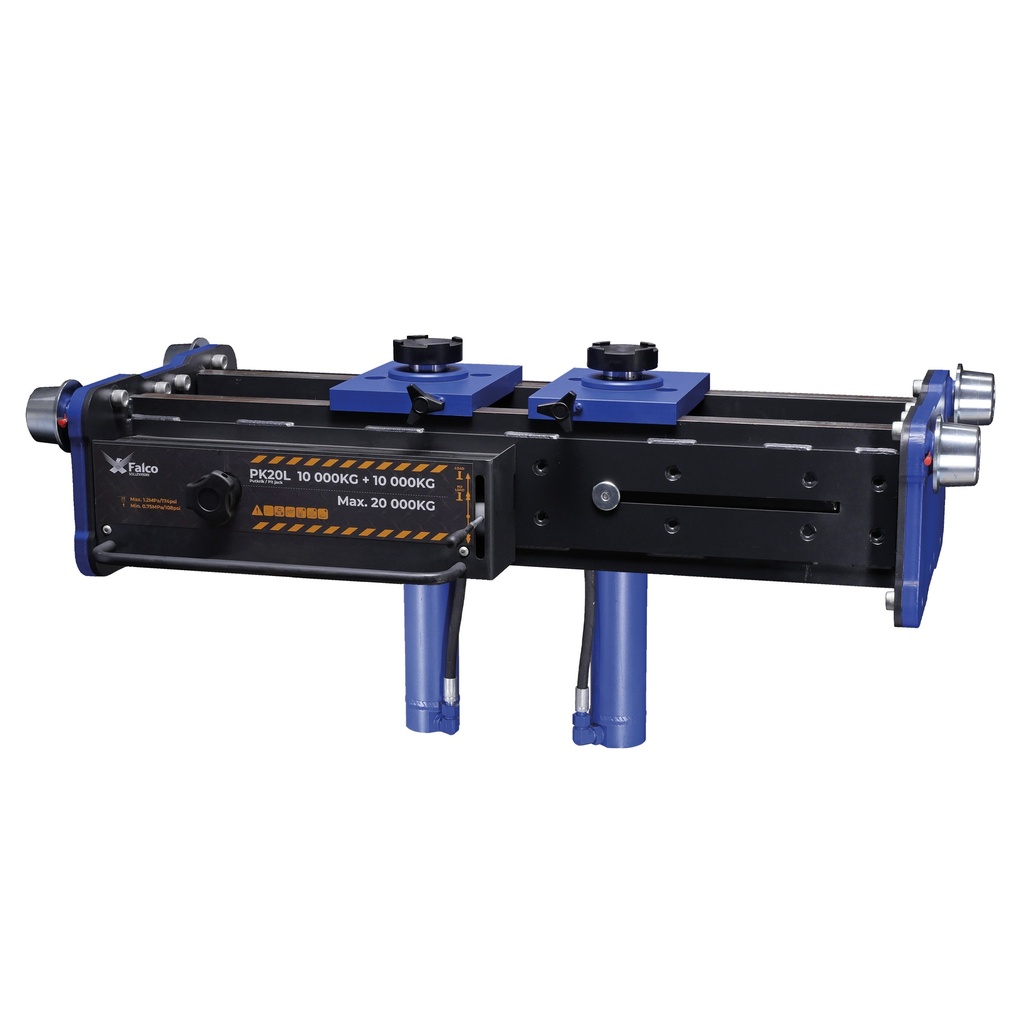

Air hydraulic pit jack 20 ton long cylinder

Lifts / Pit jacks Brand: Falco Sollevatori Falco Sollevatori

Product Code: PK20L

EAN: 8720028106387

Availability: Available

€ 3,388.00 Incl. VAT https://schema.org/InStock 3388.0 EUR € 3,388.00

€ 2,800.00

  • Lifting capacity
  • Working air pressure
  • Lifting height max. incl. pads
  • Stroke
  • Lifting height min.
  • Total width
  • Lifting points

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

jacking beam / hydraulic pit jack / hydropneumatic jack pit long cylinder
This 20 ton double cylinder pit jack from Falco Sollevatori is designed to safely lift cars, buses, vans, trucks, forklifts and more with maximum performance and safety features.
Falco Heavy duty pit jack has the following features:
built-in pneumatic hydraulic pump with dual pump lifting system. This system provides a higher lifting speed and reduces the speed under load.
equipped with a variable lowering speed thanks to a double throttle valve. Due to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the cylinder. This makes the pit jack not only safe, but also efficient to use.
The smart design of the double cylinder pit jack provides maximum lift and maximum capability:
The frame of the pit jack can be adjusted in width and the modular side plates allow for several different adapter options to be selected. As a result, it can be adapted to all standard entry platforms and manhole shapes.
2 individually controlled rams offer safe and balanced lifting.
Transversely sliding rams.
Each pit jack can be customised to fit the pit frame by selecting the correct adapter plates. Depending on the type rails, a cylindrical or conical adapter can be selected. Depending on the required lifting height long and short adapter plates can be selected.

! Please note, the air hydraulic pit jack is supplied without adapter plates!
These can be selected according to the pit profile and dimensions.

Product Dimensions:
Product Length 590 mm
Product Width 1,100 mm
Product Height 530 mm
Product Weight 268.0 Kg
Package Dimensions:
Package Length 680 mm
Package Width 1,320 mm
Package Height 590 mm
Package Weight 305.00 Kg

  • Built in air pump
  • Dual pump lifting system
  • 2 lowering speeds
  • Integrated air hydraulic pump
  • Modular system

Specifications

Lifting capacity 20000 kg
Working air pressure 7.5 - 12 Bar
Lifting height max. incl. pads 996 mm
Stroke 420 mm
Lifting height min. 576 mm
Total width 1100 - 1400 mm
Lifting points 200 - 1150 mm
