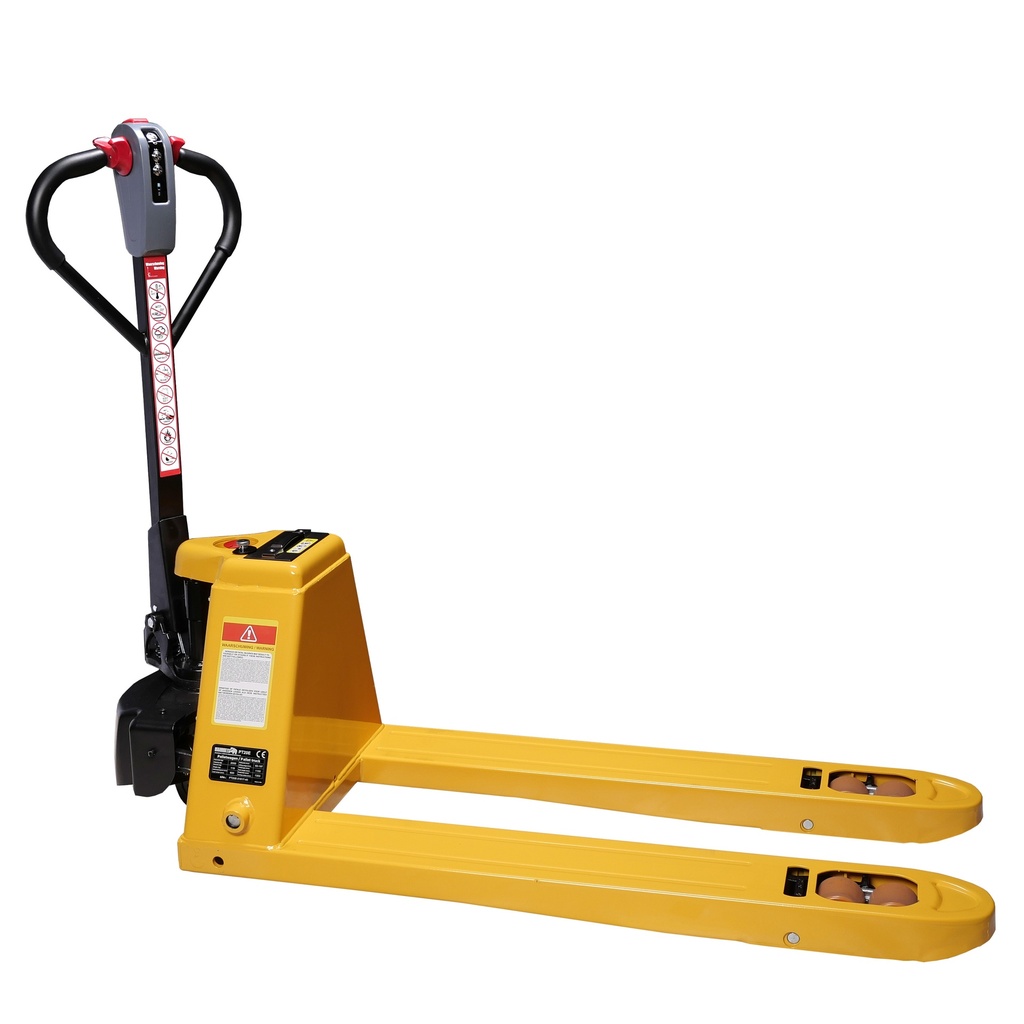

The Mammuth electric pallet truck is designed for internal pallet transport in warehouses, distribution centres and production areas. With a lifting capacity of 2000 kg, this electric pallet truck is suitable for moving loaded pallets in daily logistics operations.
Operation is via the tiller, with electric driving, lifting and lowering to reduce physical strain during pallet transport. Drive is provided by a brushless motor to minimise motor maintenance, while polyurethane wheels ensure stable driving characteristics and good traction on flat, smooth floors.
The removable lithium battery has a long service life and is charged using the supplied 230 V charger. Battery status can be read on the indicator, with a warning signal at low battery voltage, allowing better planning of operation and charging moments.
Key features:
- Fully electric
Ease of use when driving, lifting and lowering via the controls.
- Lifting capacity 2000 kg
Sufficient load capacity for loaded pallets.
- Brushless motor
Efficient drive with reduced maintenance requirements.
- Removable lithium battery
Long service life and quick battery replacement, charging via 230 V.
- Polyurethane wheels
Good traction and smooth running on flat warehouse floors.
Specifications
| Lifting capacity | 2000 kg |
| Lifting height min. | 84 mm |
| Lifting height max. | 190 mm |
| Battery type | lithium-ion |
| Battery voltage | 48V/15Ah |
| Power supply | 230V |
| Fork size (length x width x height) | 1150 x 160 x 65mm |
| Fork overall width | 540 mm |
| Gradeability max. loaded / unloaded | 6% / 20% |
| Driving speed loaded max. | 4 km/h |
| Driving speed no-load max. | 4.5 km/h |
| Lifting speed loaded | 18 mm/sec |
| Lifting speed unloaded | 23 mm/sec |
| Lowering speed loaded | 56 mm/sec |
| Lowering speed unloaded | 46 mm/sec |
| Turning radius | 1353mm |
| Wheel material | Polyurethane |
| Steering wheel diameter | 140 mm |
| Load wheel diameter | 80 mm |
| Product Dimensions: | |
|---|---|
| Product Length | 1,560 mm |
| Product Width | 550 mm |
| Product Height | 1,255 mm |
| Product Weight | 117.0 Kg |
| Package Dimensions: | |
| Package Length | 1,560 mm |
| Package Width | 550 mm |
| Package Height | 1,255 mm |
| Package Weight | 117.00 Kg |
