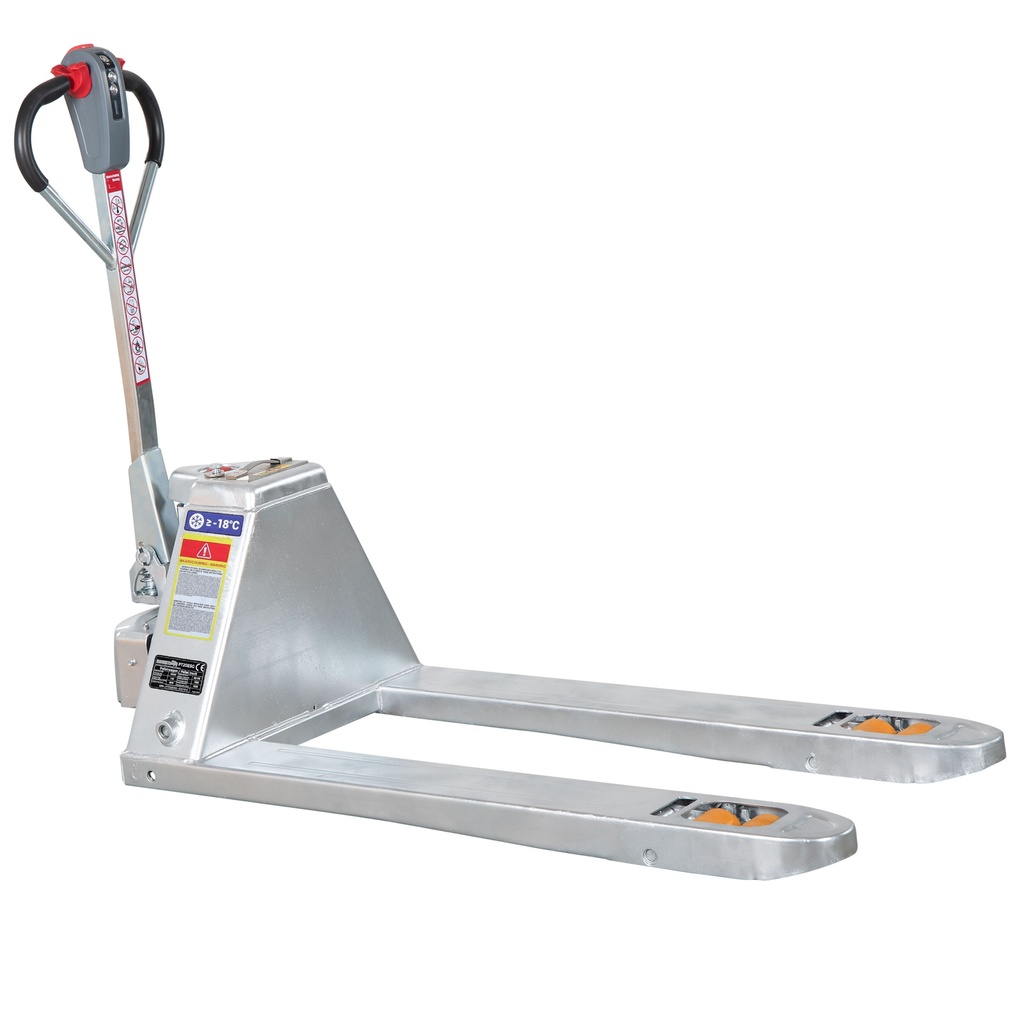

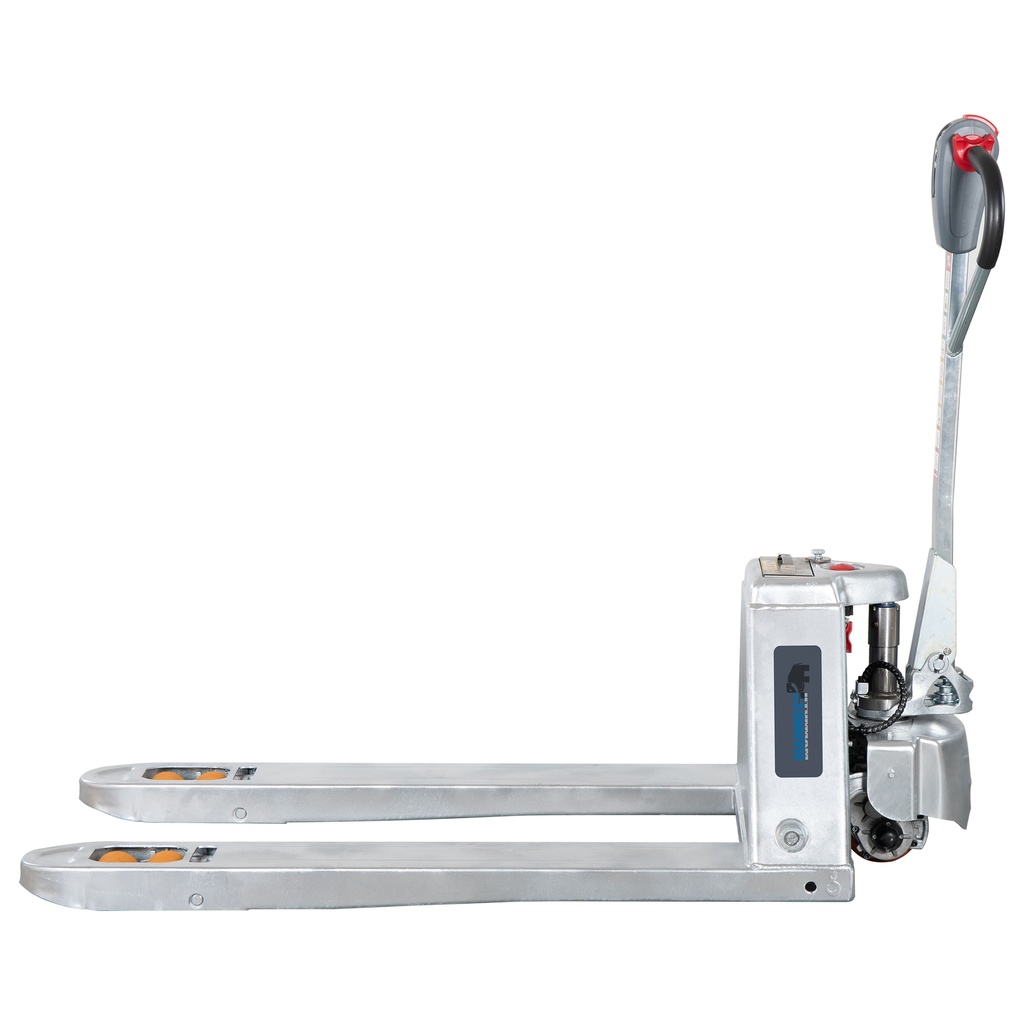

The Mammuth galvanized electric pallet truck is suitable for applications in cold storage, food processing and humid outdoor environments. The full galvanization protects this electric pallet truck against corrosion at temperatures down to -18 °C.

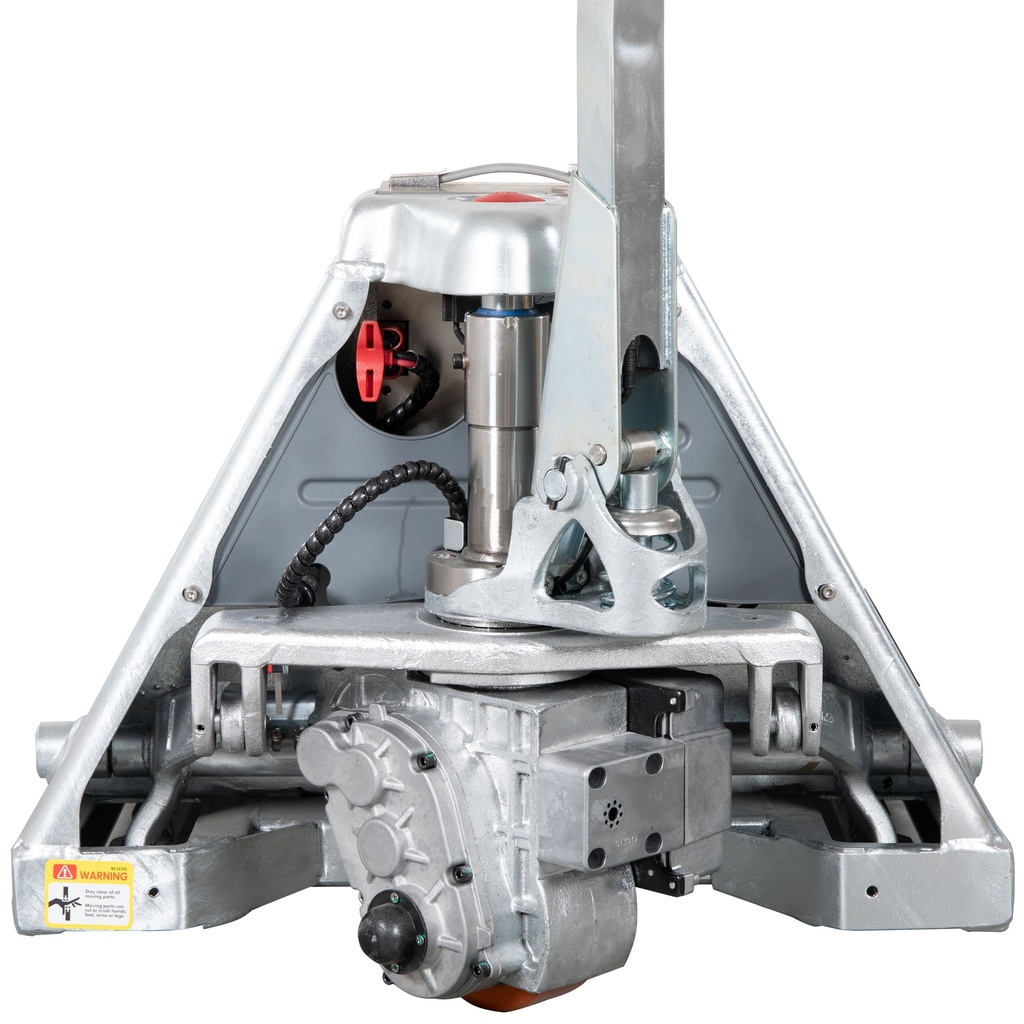

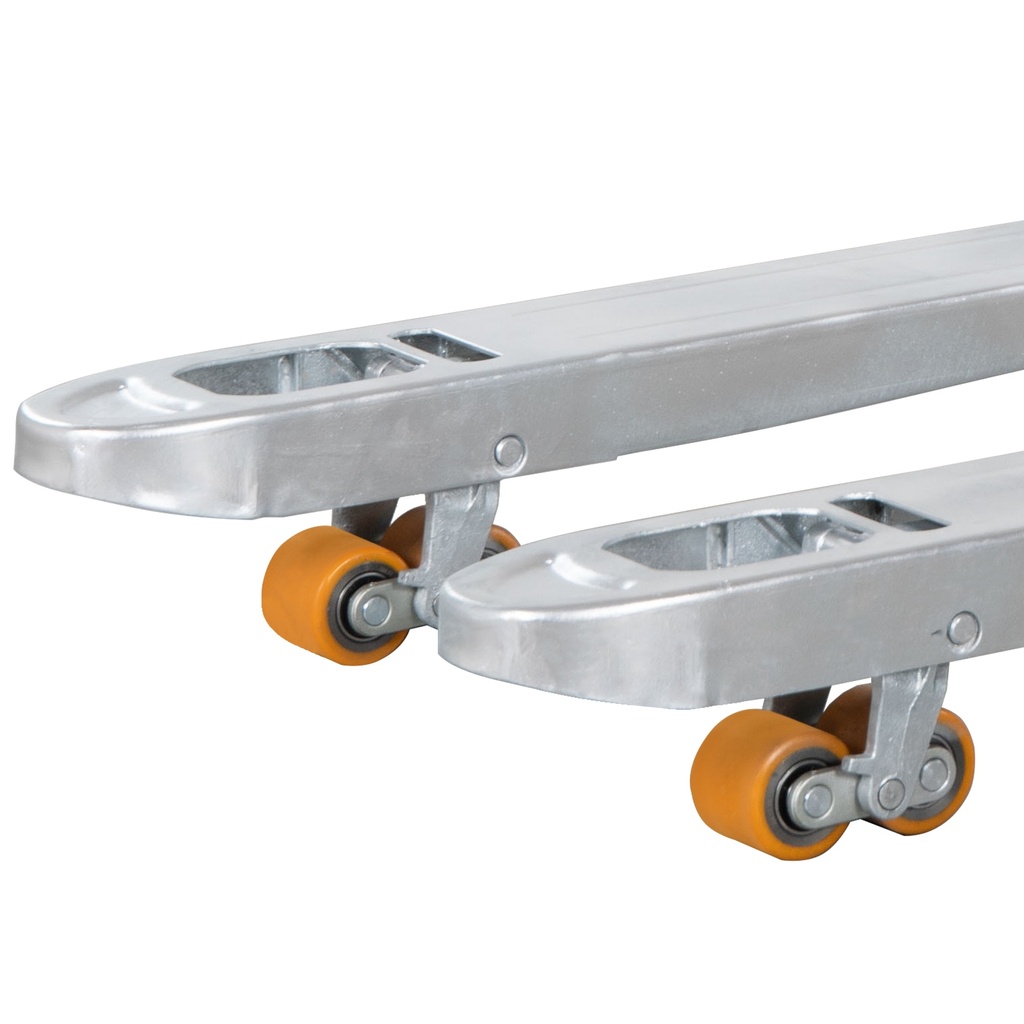

Operation is via the tiller, with electric driving, lifting and lowering to reduce physical effort during pallet transport. Drive is provided by a brushless motor to limit motor maintenance, while polyurethane wheels ensure good traction on slippery surfaces.

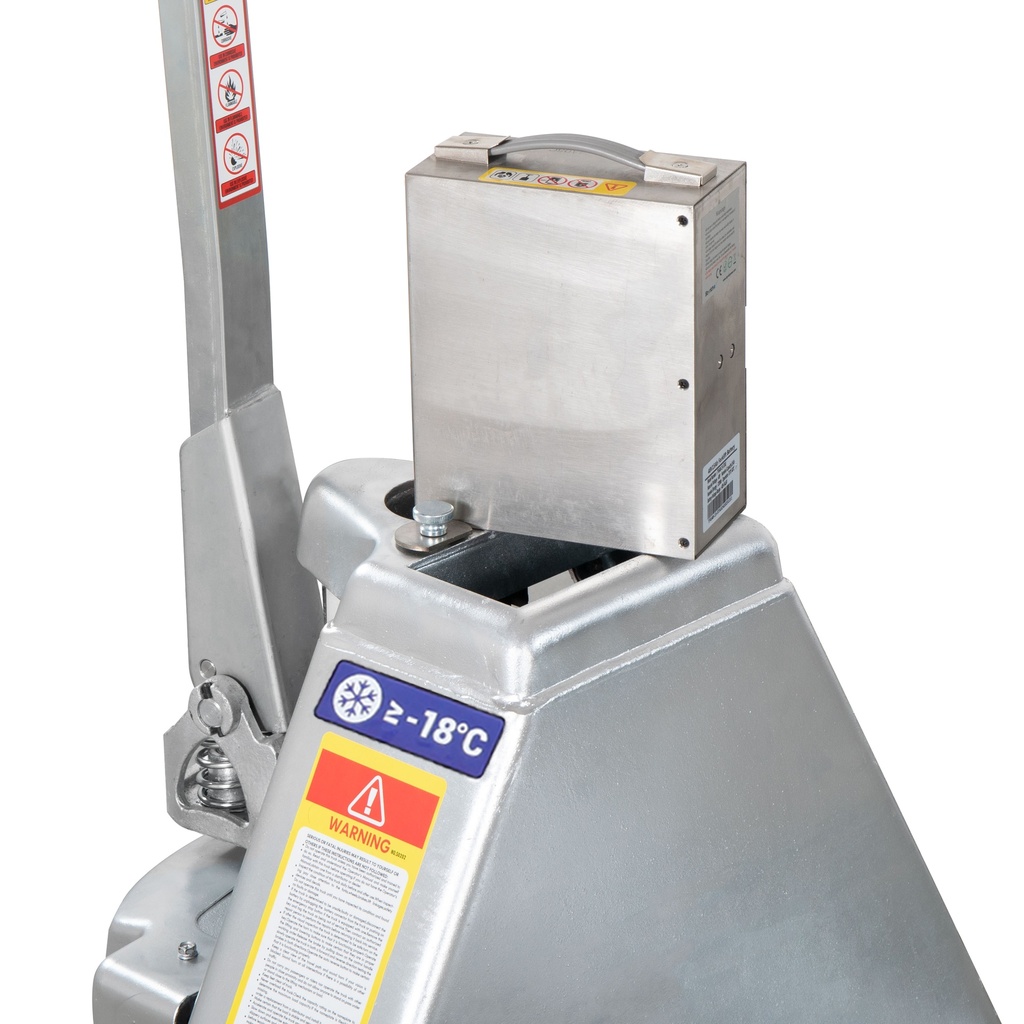

The removable lithium battery has a long service life and is charged using the supplied 230 V charger. Battery status is displayed on the indicator, with a warning signal at low battery voltage, allowing better planning of operation and charging intervals.
For use in humid and cold zones, several components are additionally protected. Stainless steel bearings reduce the effects of moisture, and the hydraulic cylinder is designed for operation in wet conditions. IP67-rated brakes and a shielded control unit are more resistant to splash water and condensation during transitions between temperature zones.
Key features:
- Galvanized chassis and forks
Suitable for cold and frozen storage, food processing and chemical storage down to -18 °C.
- Fully electric
User-friendly operation for driving, lifting and lowering via the control handle.
- 2000 kg lifting capacity
Sufficient load capacity for loaded pallets.
- Removable lithium battery
Long service life and quick battery replacement.
- Stainless steel bearings and hydraulic cylinder
Improved protection against moisture and cold operating conditions.
Specifications
| Lifting capacity | 2000 kg |
| Lifting height min. | 84 mm |
| Lifting height max. | 200 mm |
| Battery type | lithium-ion |
| Battery voltage | 48V/15Ah |
| Power supply | 230V |
| Drive motor power | 1 kW |
| Lift motor power | 0.8 kW |
| Lifting speed loaded | 18 mm/sec |
| Lifting speed unloaded | 23 mm/sec |
| Lowering speed loaded | 56 mm/sec |
| Lowering speed unloaded | 46 mm/sec |
| Driving speed loaded max. | 4 km/h |
| Driving speed no-load max. | 4.5 km/h |
| Gradeability max. loaded / unloaded | 6% / 20% |
| Turning radius | 1353mm |
| Fork size (length x width x height) | 1150 x 160 x58 mm |
| Fork overall width | 550 mm |
| Wheel material | Polyurethane |
| Steering wheel diameter | 140 mm |
| Load wheel diameter | 80 mm |
| Brake type | Electromagnetic |
| Product Dimensions: | |
|---|---|
| Product Length | 1,540 mm |
| Product Width | 550 mm |
| Product Height | 1,255 mm |
| Product Weight | 117.0 Kg |
| Package Dimensions: | |
| Package Length | 1,540 mm |
| Package Width | 550 mm |
| Package Height | 1,255 mm |
| Package Weight | 117.00 Kg |
