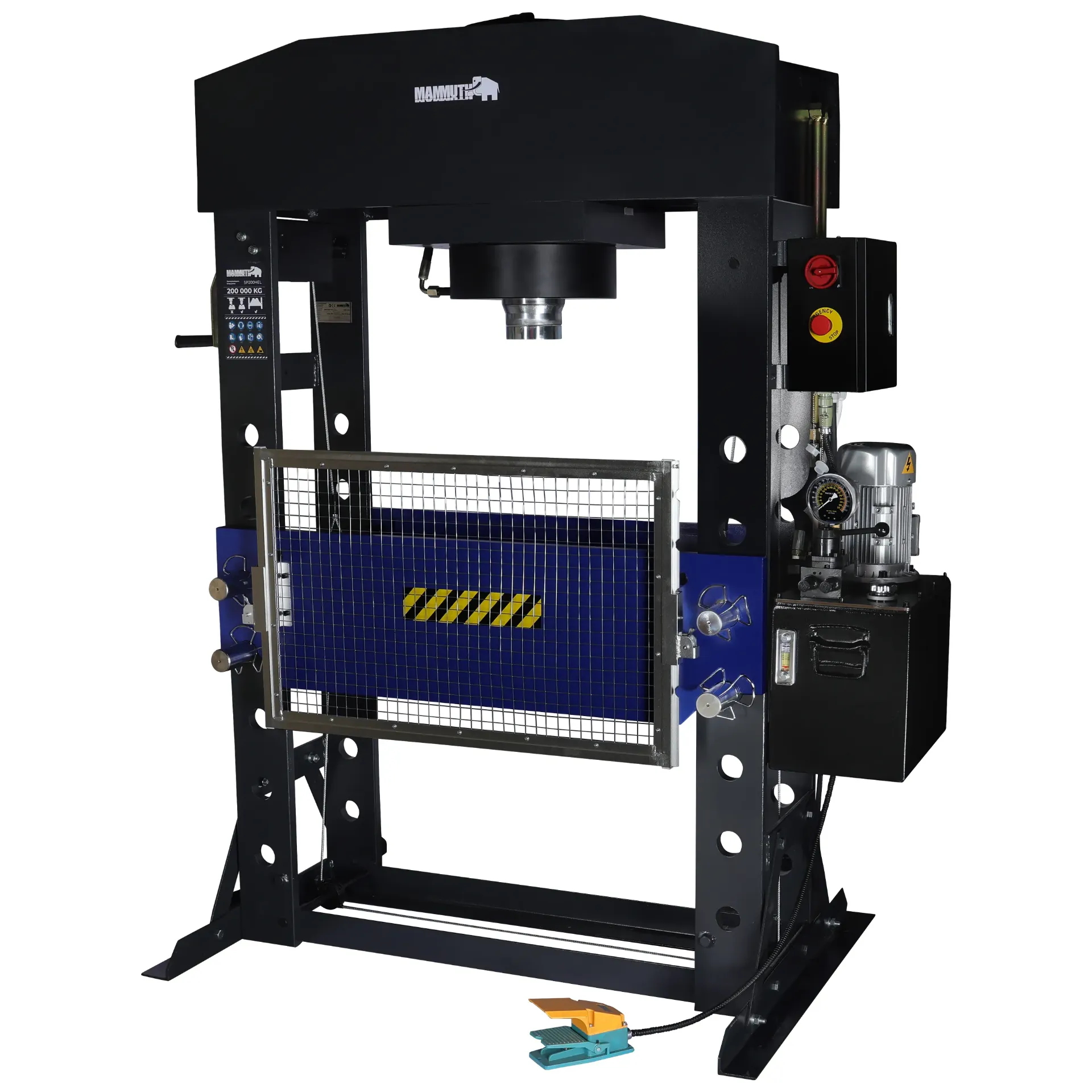

The Mammuth electric workshop press 200 ton is suitable for workshop pressing applications where high force must be applied accurately. Pressing can be operated electrically using the hand control or the foot pedal.
The fully welded frame provides a strong foundation for work under heavy loads. The work bed can be raised or lowered with the hand winch, allowing the working space to be adjusted to the size of the workpiece.
For precise positioning, the cylinder can be moved sideways using a spindle. This allows the pressing point to be aligned with the position of the workpiece. The safety guard shields the working area during pressing operations.
Please note: the press is supplied without press blocks and oil.
Key features:
-
Pressing force of 200 tons
Suitable for heavy duty pressing applications.

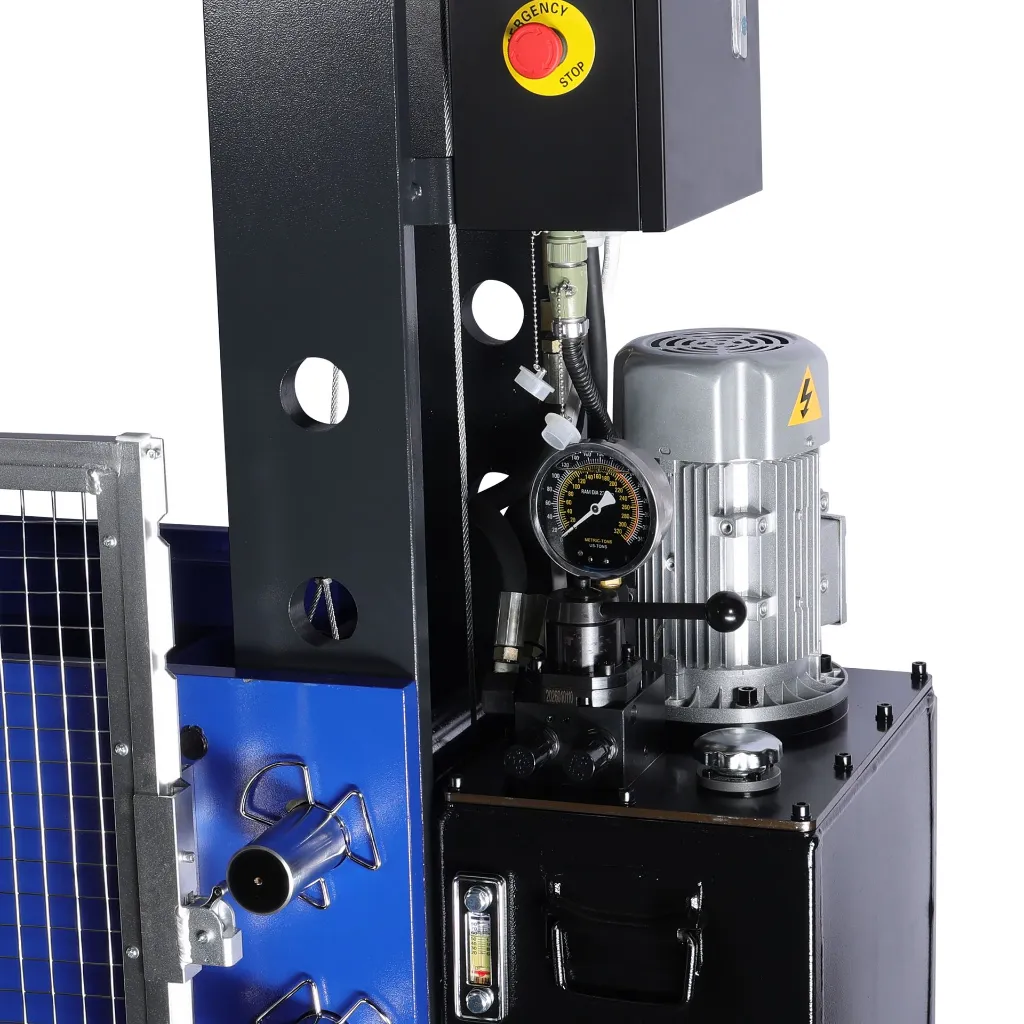

- Electric hand and foot control
Pressing can be operated using the hand control or the foot pedal.

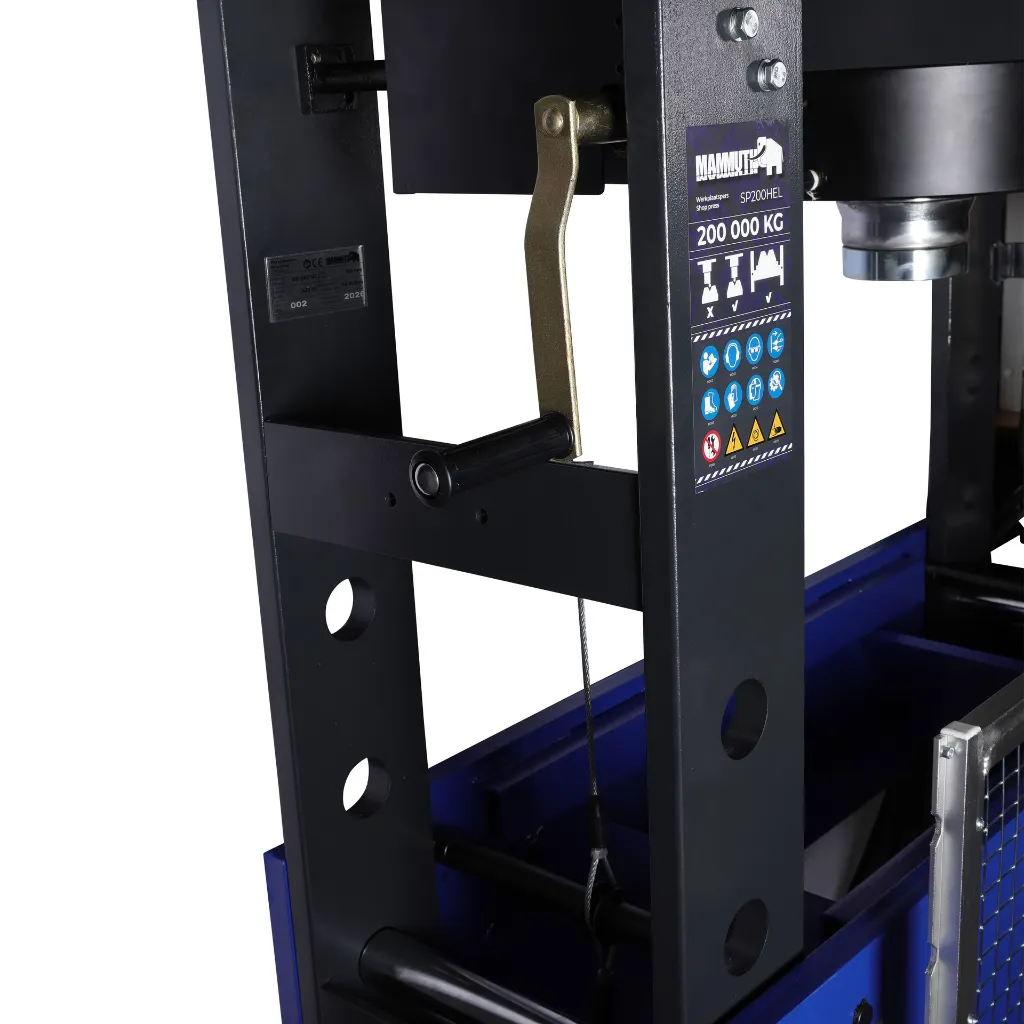

- Height adjustable work bed
Can be raised or lowered using the hand winch.
- Laterally movable cylinder
Can be positioned above the correct pressing point.
- Safety guard
Shields the working area during pressing operations.
Specifications
| Press capacity | 200 ton |
| Voltage | 400V |
| Control type | Electric with foot pedal |
| Motor power | 1500 W |
| Motor speed | 1400 rpm |
| Cylinder stroke | 350 mm |
| Working height min. (between worktable and cylinder) | 95 mm |
| Working height max. (between worktable and cylinder) | 910 mm |
| Workbed width | 1002 mm |
| Workbed depth | 490 mm |
| Oil type | OCH22 |
| Oil capacity | 16 L |
| Oil-filled | No |
Product Dimensions
| Length | 1,750 mm |
|---|---|
| Width | 1,000 mm |
| Height | 2,070 mm |
| Weight | 1,430.0 kg |
Package Dimensions
| Length | 2,000 mm |
|---|---|
| Width | 1,000 mm |
| Height | 2,150 mm |
| Weight | 1,600.00 kg |
