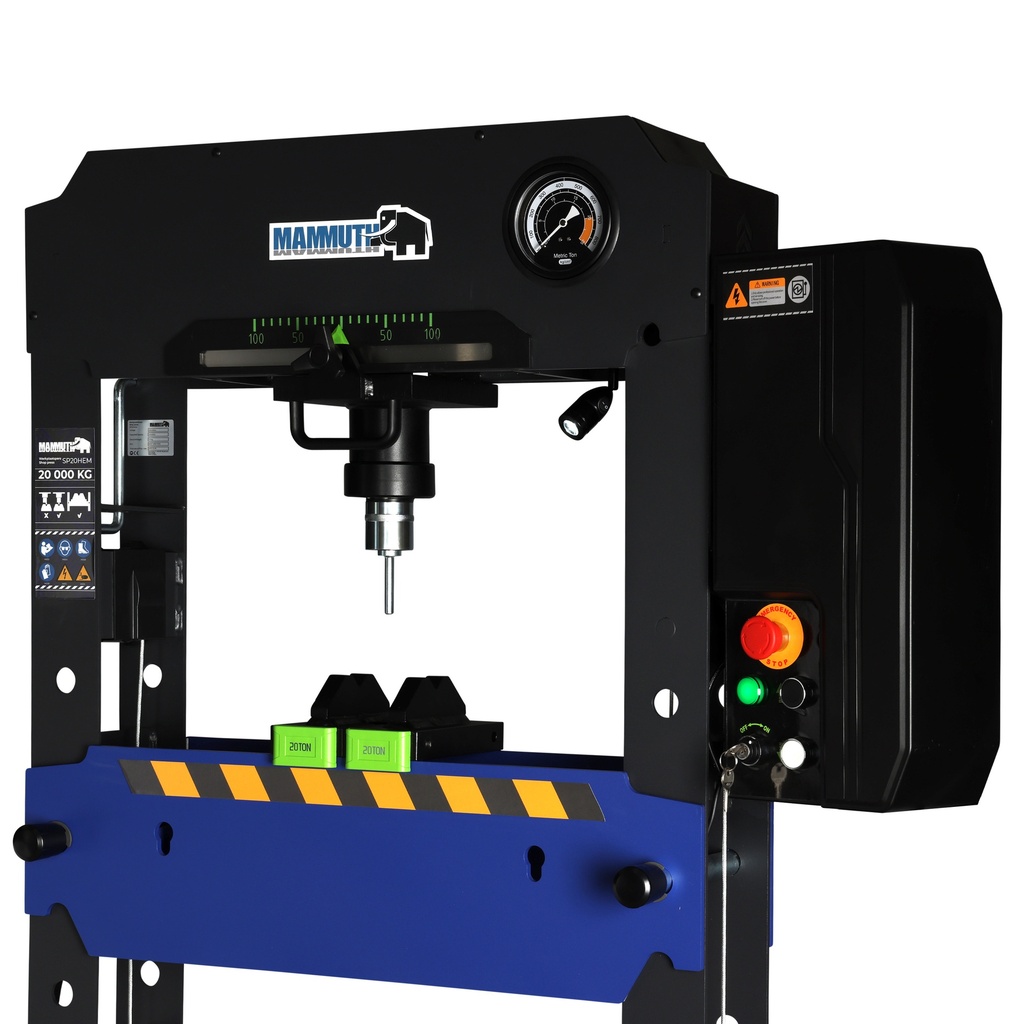

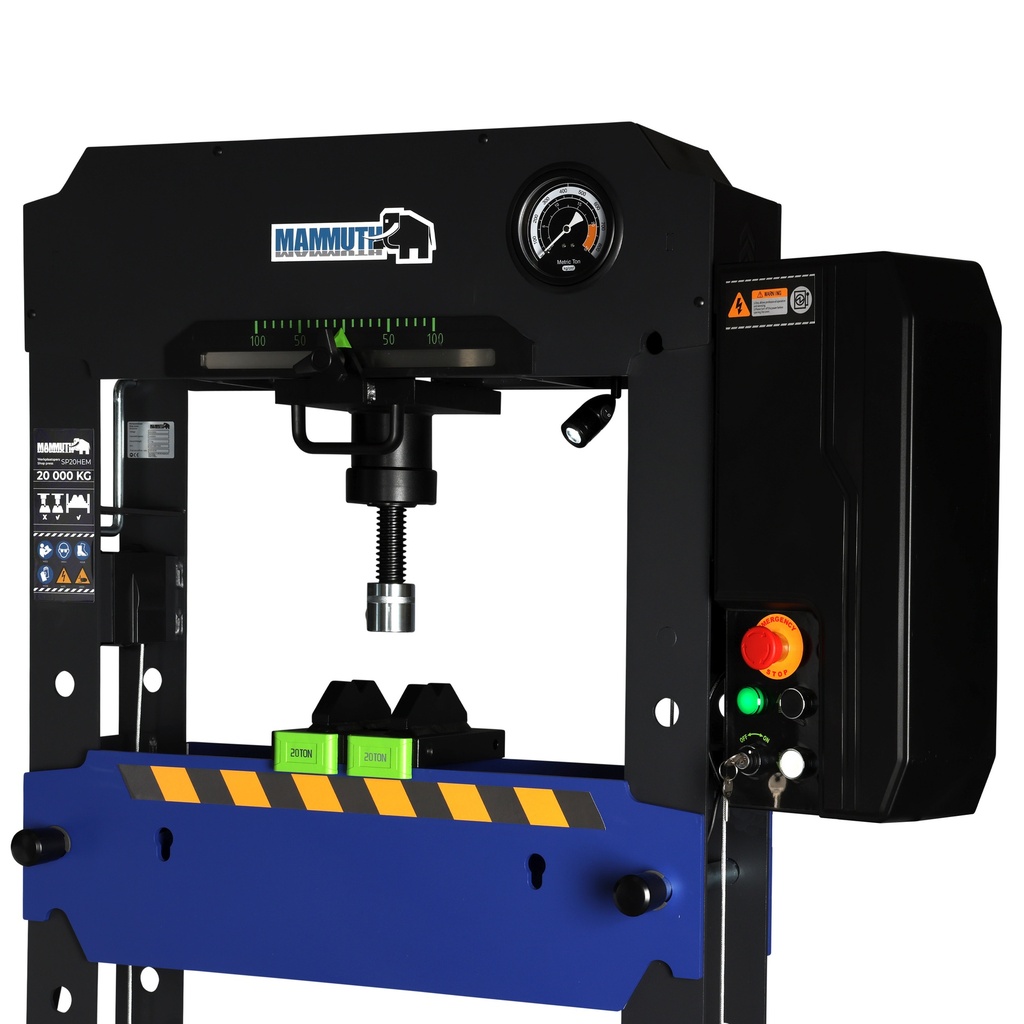

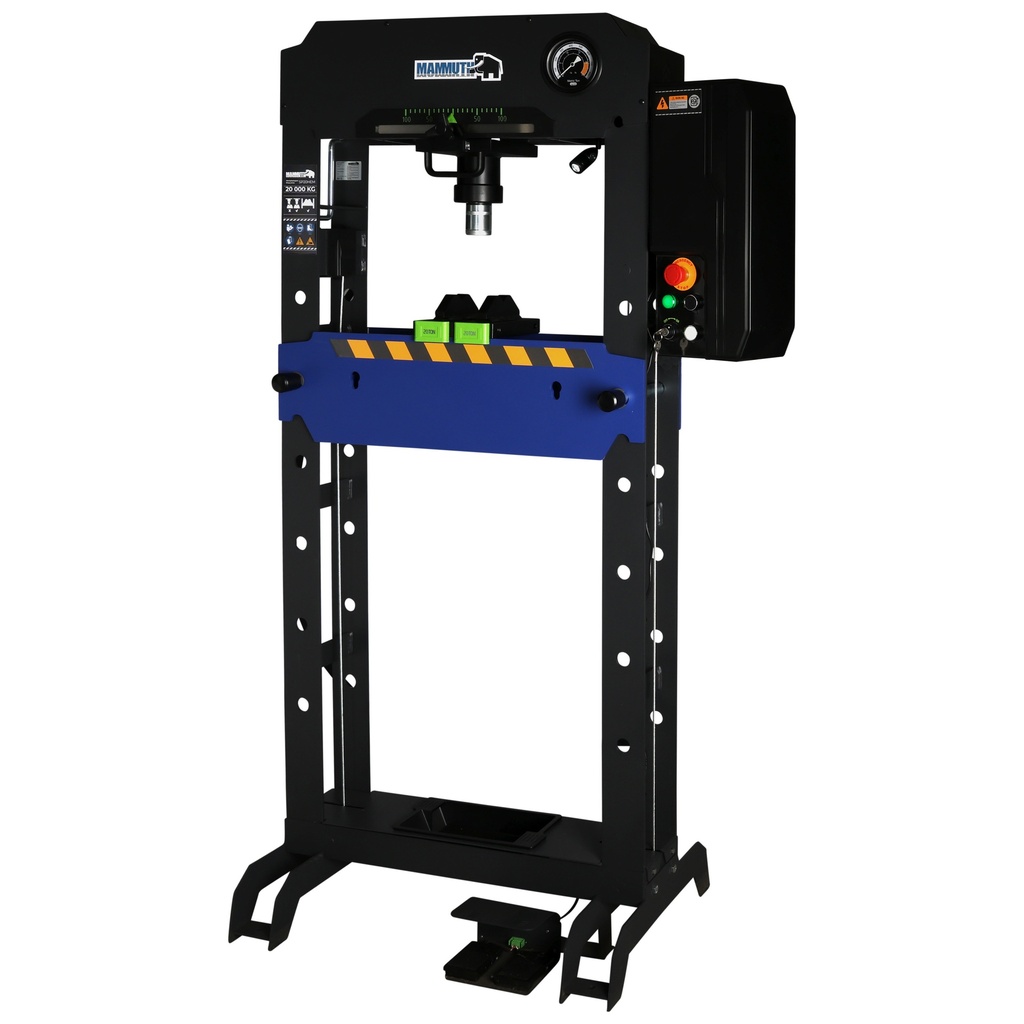

Mammuth 20-ton hydraulic shop press with electric control combines power and simplicity, ideal for daily use in professional workshops and garages. This robust press is designed for general workshop and maintenance tasks such as fitting and removing bearings, shafts, bushings, bolts, and other mechanical components.
Precise positioning is made easy thanks to the laterally adjustable cylinder, while the screw spindle ensures accurate adjustment. The scale and integrated pressure gauge always provide clear insight into the exact position and pressure.
Comfortable and controlled operation is possible thanks to the electric controls, operable both by hand and foot pedal. Combined with the quick release mounting head, you work fast and effortlessly without physical strain. The worktable can be easily adjusted in height using the manual winch (6 positions), contributing to an efficient and flexible working environment.
The fully welded steel frame provides a sturdy base for the shop press. Integrated LED lighting ensures excellent visibility of the work area at all times. The press is delivered complete with two robust press blocks.
Key features:
-
Electric control and foot pedal
Effortless and fast operation.
-

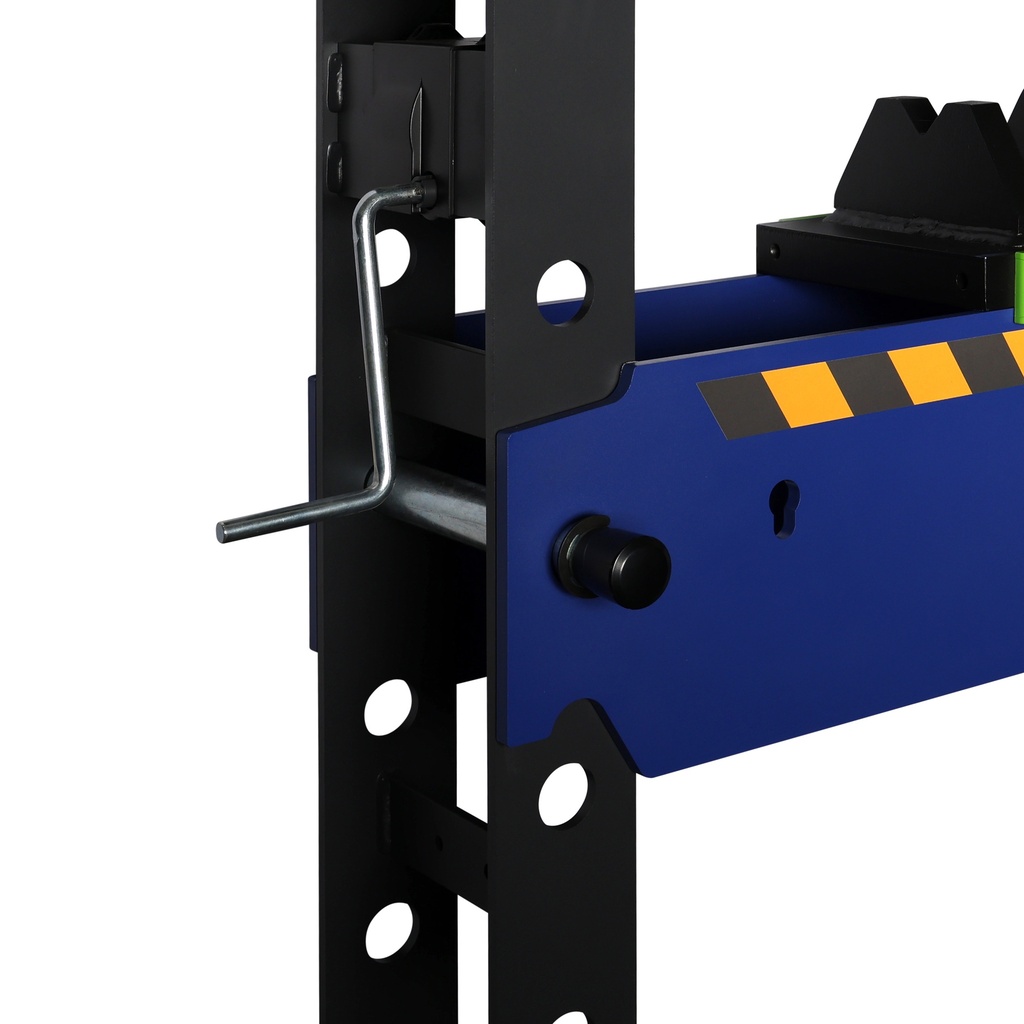

Hand winch worktable
Easily adjustable worktable with 6 height settings.
-

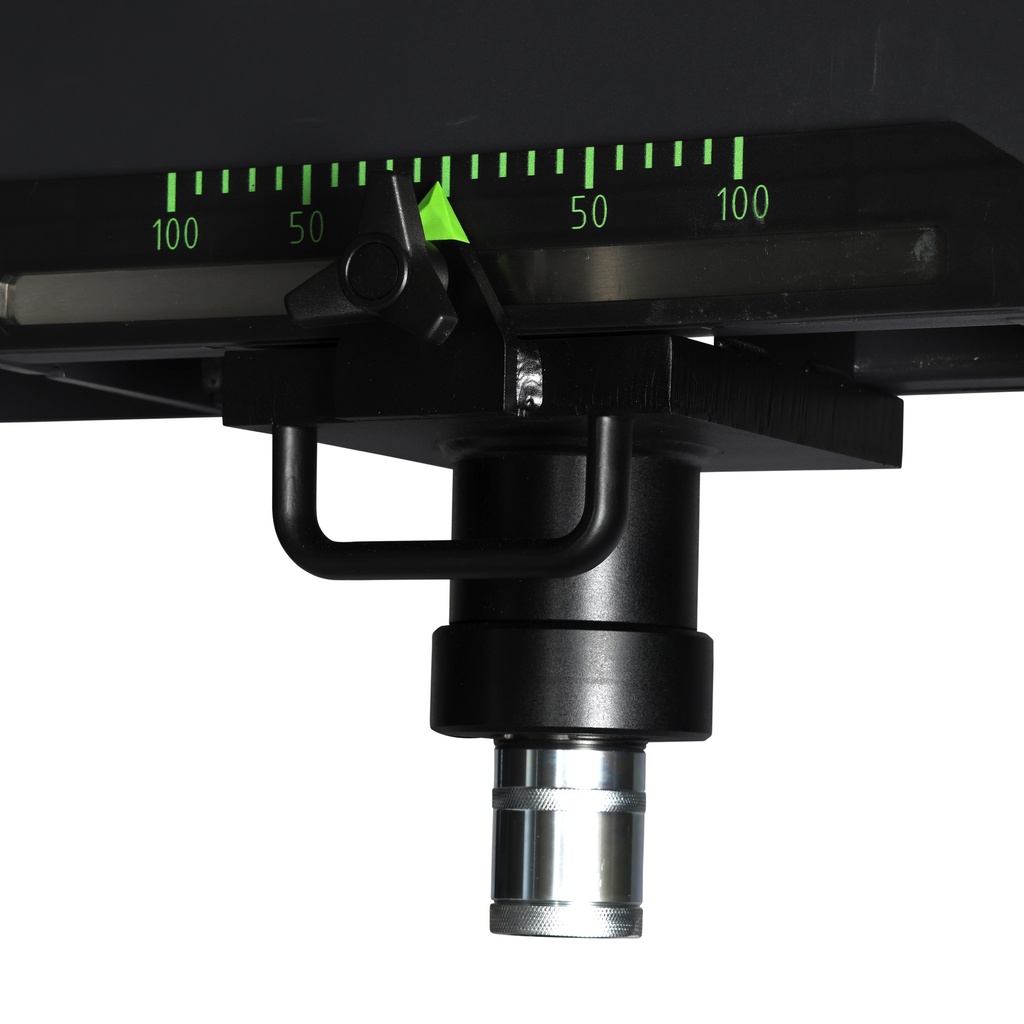

Adjustable cylinder with scale
Laterally movable and screwed out for precise positioning.
-
Quick-release mounting head
Easy to detach and secure for fast changing of press heads.
-

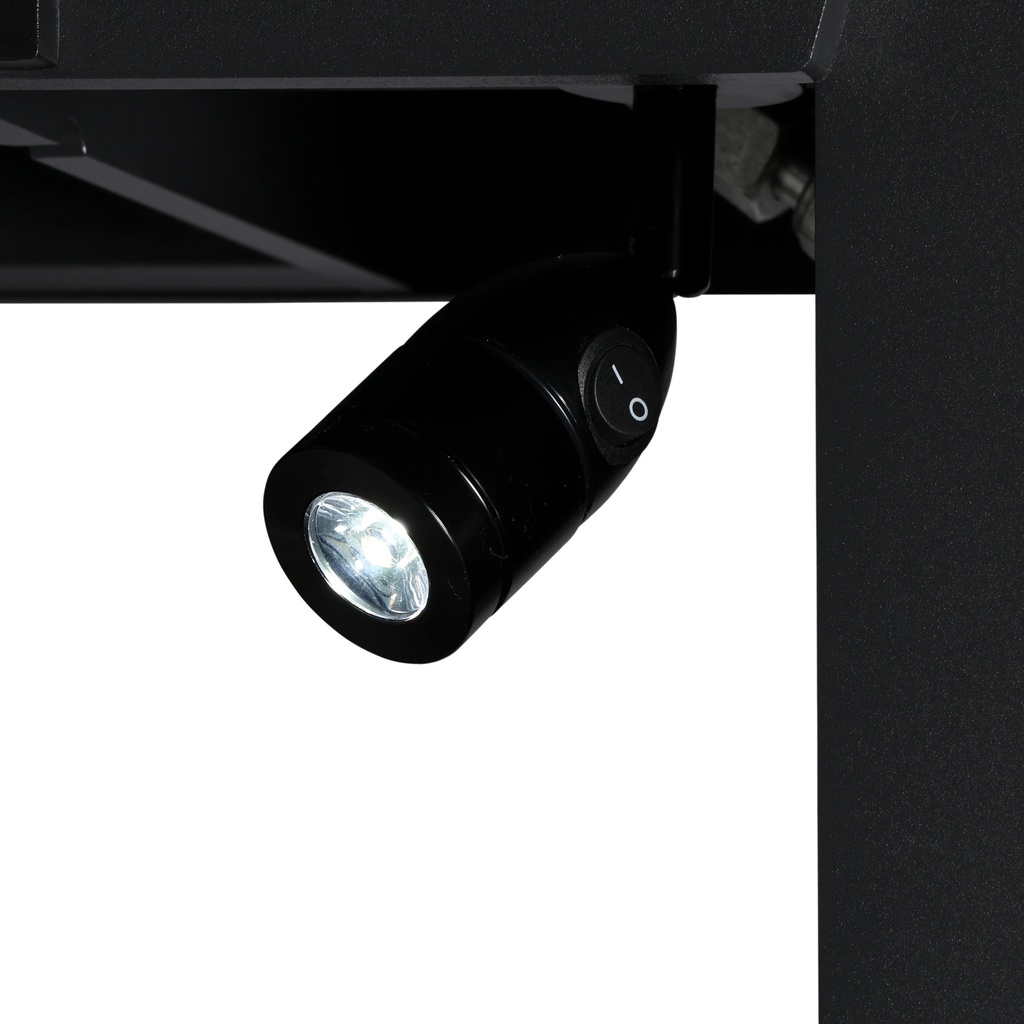

LED lighting
For optimal visibility of the workpiece.
This 20 ton hydraulic bearing press by Mammuth is a versatile and powerful solution for common pressing tasks in any professional workshop or garage.
Specifications
| Press capacity | 20 ton |
| Suitable for professional use | Yes |
| Control type | Electric with foot pedal |
| Power supply | 230V |
| Motor power | 500 W |
| Motor speed | 6000 rpm |
| Cylinder stroke (stroke length) | 220 mm |
| Cylinder diameter | ø50 mm |
| Length of screw spindle | 75 mm |
| Sideways adjustable cylinder | Yes |
| Scale marking | Yes |
| Pressure gauge | Yes, integrated |
| Pressing speed (outward) | 2.27 cm/sec |
| Pressing speed (inward) | 2.5 cm/sec |
| Adjustable workbed | Yes, with hand winch |
| Workbed width | 600 mm |
| Workbed depth | 152 mm |
| Minimum working height (between worktable and cylinder) | 25 mm |
| Maximum working height (between worktable and cylinder) | 910 mm |
| Material frame | Steel, fully welded |
| LED work light | Yes |
| Includes press blocks | Yes, 2 pieces |
| Oil-filled | Yes |
| Oil capacity | 1.7 L |
| Oil type | OCH22 |
| Product Dimensions: | |
|---|---|
| Product Length | 1,080 mm |
| Product Width | 505 mm |
| Product Height | 1,800 mm |
| Product Weight | 151.0 Kg |
| Package Dimensions: | |
| Package Length | 1,750 mm |
| Package Width | 840 mm |
| Package Height | 380 mm |
| Package Weight | 181.00 Kg |
