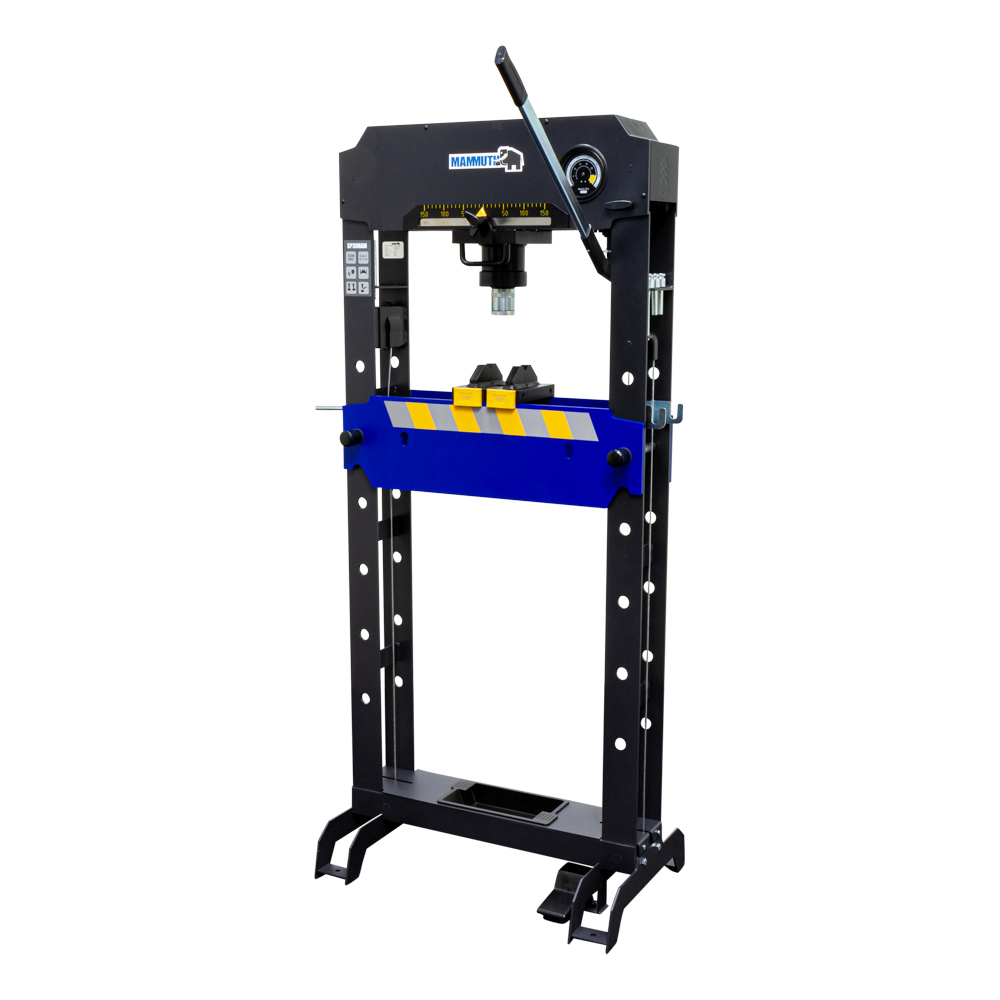

Shop press air hydraulic with foot pedal 30 ton

Shop equipment / Shop presses / Foot / manual shop presses Brand: Mammuth Mammuth

Product Code: SP30HAM

EAN: 8720028090976

Availability: Available

€ 1,270.50 Incl. VAT https://schema.org/InStock 1270.5 EUR € 1,270.50

€ 1,050.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Press / garage press / bearing press

    This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is  equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.

    Comes with 2 heavy press blocks, 8 press pins and a parts tray.

    Specifications:

    • capacity = 30 ton

    • cylinder stroke = 220mm

    • bed width = 600mm

    • bed depth = 187mm

    • working range = 850mm

    • screw thread length = 75mm

    • operating pressure = 8 - 12 bar

    • air connection = 1/4" NPT external thread

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 180.0 Kg
    Package Dimensions:
    Package Length 840 mm
    Package Width 1,750 mm
    Package Height 350 mm
    Package Weight 194.00 Kg
    Package Type:
    1 Pcs

    • Two-stage pump

    • Integrated pressure gauge

    • Adjustable cylinder + scale

    • Hand winch for setting work bed

    • Compressed air foot pedal
