Workshop press Wide Work bed air hydraulic with foot pedal 30 tons

Shop equipment / Shop presses / Hydraulic shop presses Brand: Mammuth Mammuth

Product Code: SP30HAMB

EAN: 8720028097791

Availability: Sold Out

Expected back in stock: 3 - 5 weeks

€ 1,421.75 Incl. VAT https://schema.org/SoldOut 1421.75 EUR € 1,421.75

€ 1,175.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Press / garage press / bearing press

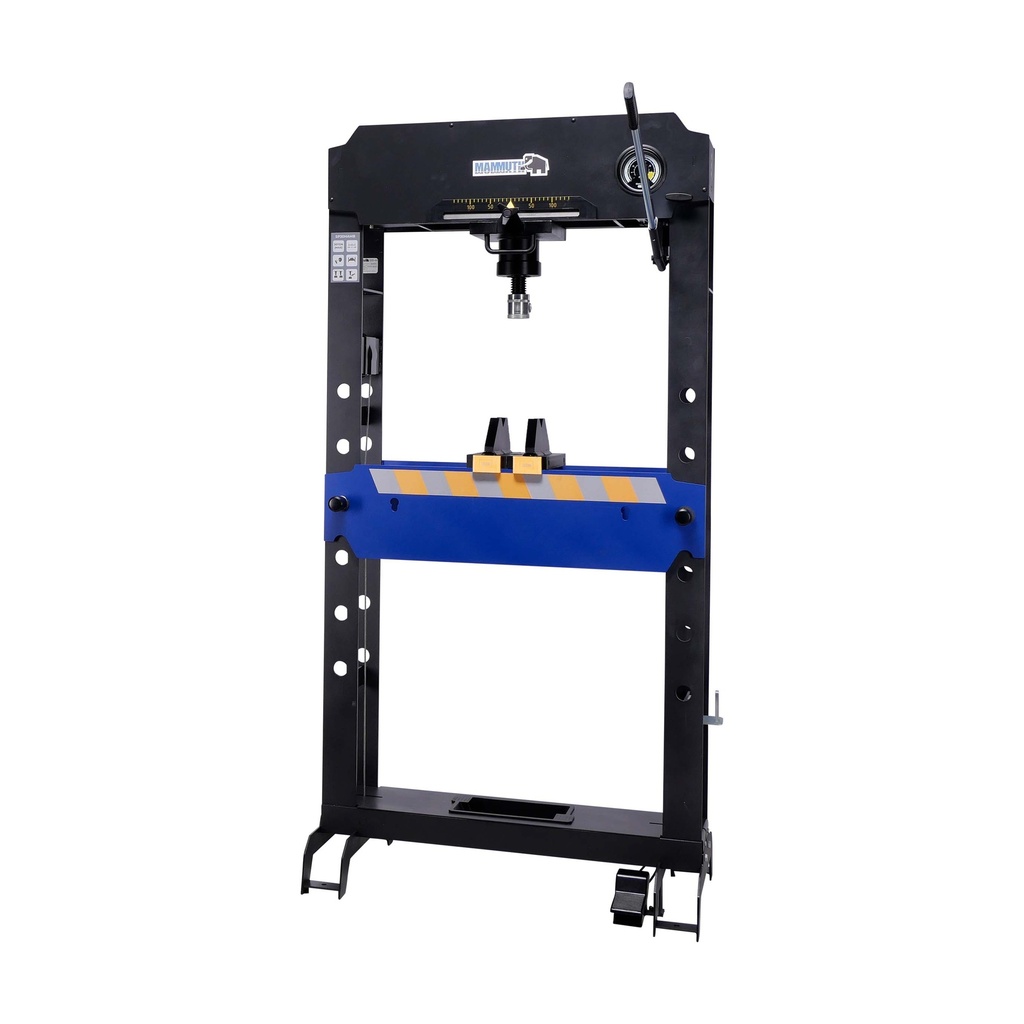

    This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The work bed is easily adjustable in height manually with the help of the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder can be moved in width (with bearings) and is fitted with a height-adjustable spindle, which is 7.5 cm long. The discharge pressure is read via the integrated pressure gauge.

    Comes with 2 heavy press blocks, 8 press pins and a parts tray.

    Technical specifications

    • capacity = 30 tons
    • cylinder stroke = 220mm
    • bed width = 750mm
    • bed depth = 187mm
    • working range = 830mm
    • working pressure = 8 - 12 bar
    • air connection = 1/4" NPT male thread

    Product Dimensions:
    Product Length 200 mm
    Product Width 930 mm
    Product Height 1,900 mm
    Product Weight 208.0 Kg
    Package Dimensions:
    Package Length 1,850 mm
    Package Width 1,000 mm
    Package Height 405 mm
    Package Weight 215.00 Kg

    • Multifunctional press blocks including V-block
    • Interchangeable recording cap
    • Adjustable cylinder + scaling
    • Extra wide bed
