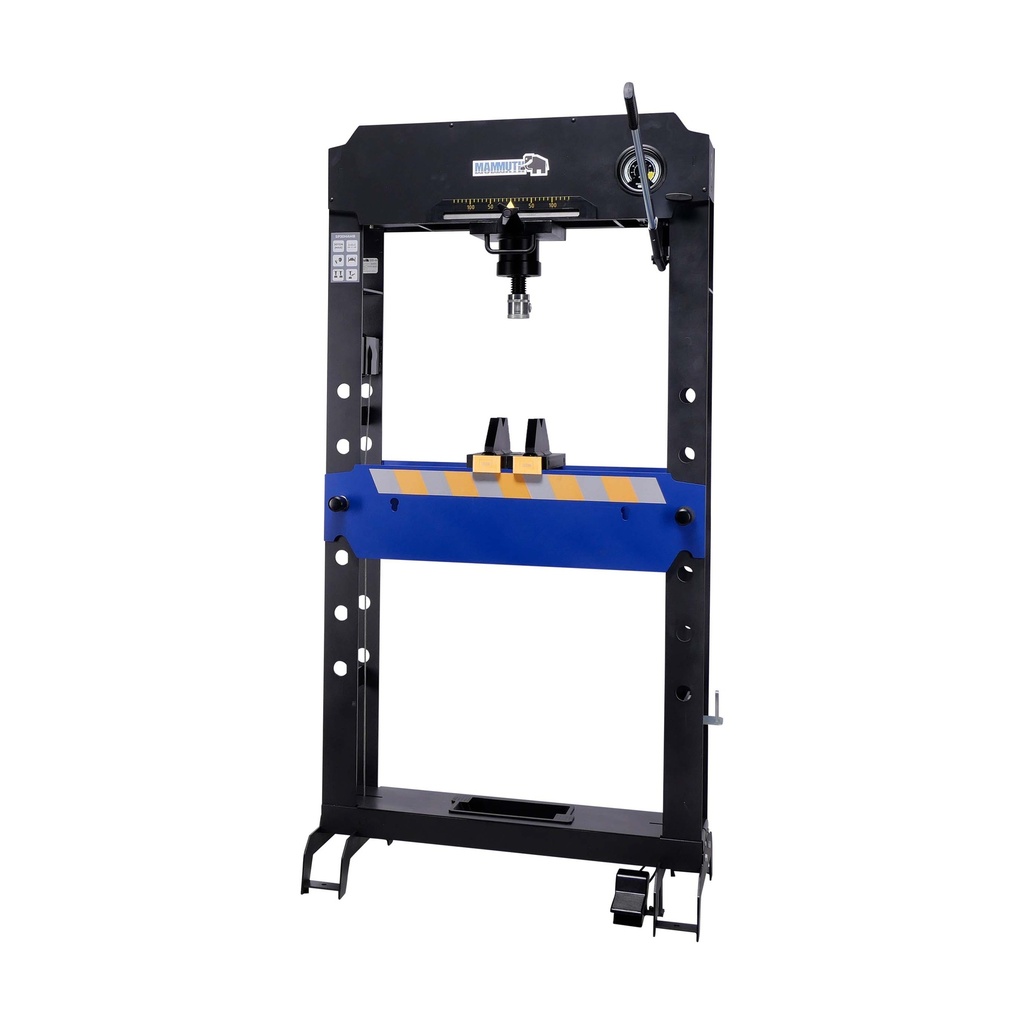

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. With a wide 750 mm workbed, this press is also suitable for larger workpieces. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press is a reliable choice for any workshop. The press comes with 2 press blocks.
- Two-stage pump: First fast, then precise pressing.
- Hand winch workbed: Easily adjustable with the winch at 6 different heights.
- Adjustable cylinder with scale: Side adjustable and extendable via the screw spindle for precise positioning.
-
Quick-change press head including 8 pressing pins: Easy to clip on and secure.
-
Pneumatic foot pedal: Effortless operation and keeps your hands free.
Specifications
| Capacity | 30 ton |
| Workbed width | 750 mm |
| Workbed depth | 200 mm |
| Minimum working height | 130 mm |
| Maximum working height | 830 mm |
| Length of screw spindle | 75 mm |
| Cylinder stroke | 220 mm |
| Cylinder diameter | ø55 mm |
| Working air pressure | 8 - 12 bar |
| Air connection | 1/4 NPT |
| Oil capacity | 1.2 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 930 mm |
| Product Width | 535 mm |
| Product Height | 1,900 mm |
| Product Weight | 208.0 Kg |
| Package Dimensions: | |
| Package Length | 1,850 mm |
| Package Width | 1,000 mm |
| Package Height | 405 mm |
| Package Weight | 215.00 Kg |
