Workshop press air hydraulic with foot pedal 30 tons

Shop equipment / Shop presses / Hydraulic shop presses Brand: Mammuth Mammuth

Product Code: SP30XHAM

EAN: 8720028097807

Availability: Available

€ 1,064.80 Incl. VAT 1064.8 EUR € 1,064.80

€ 880.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Press / Garage press / bearing press / workshop press

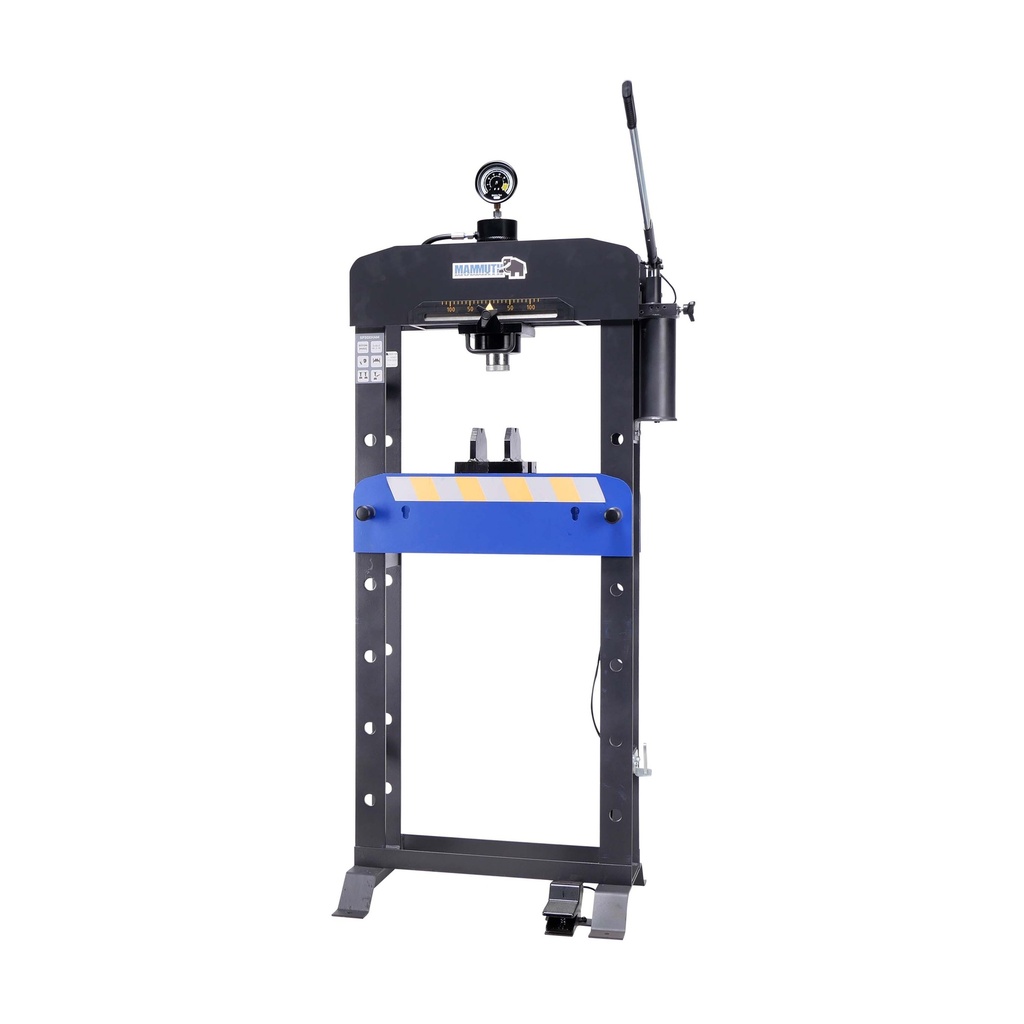

    This Mammuth press is extremely suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other press work where great force is required. The press has a fully welded solid frame. The pressure in kilograms can be clearly read on the pressure gauge. The hydraulic cylinder can be moved in width (with bearings). The cylinder is also equipped with an interchangeable recording press head and integrated hydraulic two-stage pump. This built-in two-stage system provides a large stroke at low back pressure and a small controllable stroke at higher back pressure, so pressing work can be performed accurately. Thanks to the pneumatic pump system, the press can be operated with compressed air via the foot pedal or by hand.

    The press is supplied as standard with two multifunctional press blocks.

    Technical specifications

    • capacity = 30 tons

    • working air pressure = 0.9-1.2Mpa

    • bed width = 540mm

    • bed depth = 148mm

    • minimum distance bed/cylinder = 75mm

    • cylinder stroke = 180mm

    Product Dimensions:
    Product Length 840 mm
    Product Width 540 mm
    Product Height 1,850 mm
    Product Weight 131.0 Kg
    Package Dimensions:
    Package Length 1,600 mm
    Package Width 770 mm
    Package Height 330 mm
    Package Weight 145.00 Kg

    • Multifunctional press blocks including V-block

    • Interchangeable recording cap

    • Hydraulic two-stage pump

    • Adjustable cylinder + scaling
