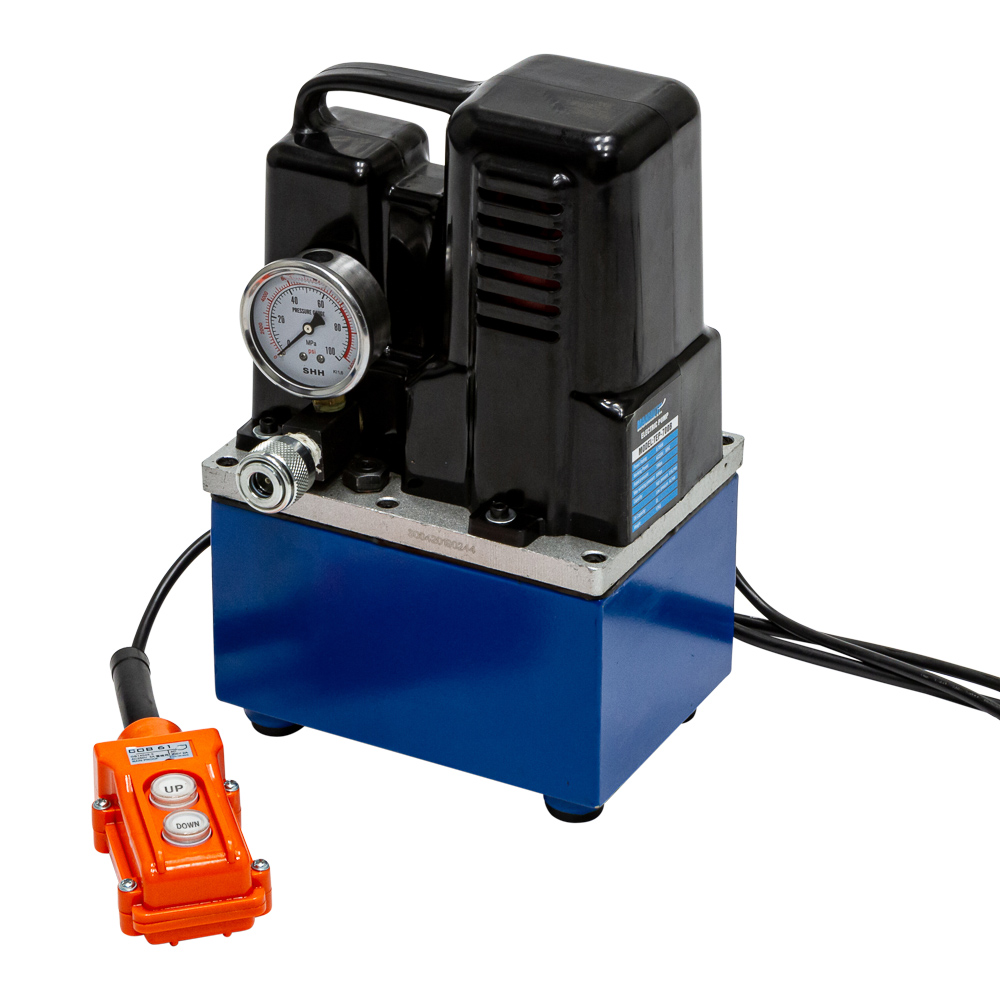

Electric hydraulic pump
Small volume pump with high-performance motor.
The speed and electric power are automatically adjusted during lifting.
Even under high pressure (32MPa), the pump starts easy.
Easy to take anywhere.
- voltage = AC220V 50Hz
- rated power = 0,75Kw
- low pressure = 2,5 Mpa / 25bar
- high pressure = 70Mpa / 700bar
- max. working pressure = 80Mpa / 800bar
- output low pressure = 1,3L/min
- output hoge druk = 0,23L/min
- oil capacity = 1,8Ltr
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 20.0 Kg |
| Package Dimensions: | |
| Package Length | 315 mm |
| Package Width | 260 mm |
| Package Height | 410 mm |
| Package Weight | 20.50 Kg |

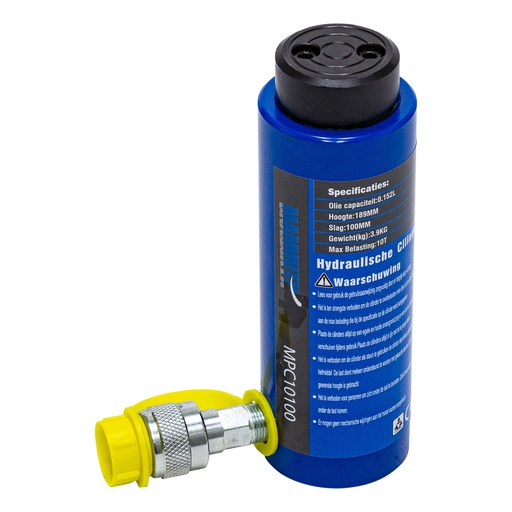

![[MPC10100] Cylinder 10 ton stroke 100mm](/web/image/product.product/51966/image_512/%5BMPC10100%5D%20Cylinder%2010%20ton%20stroke%20100mm?unique=a35d25d)

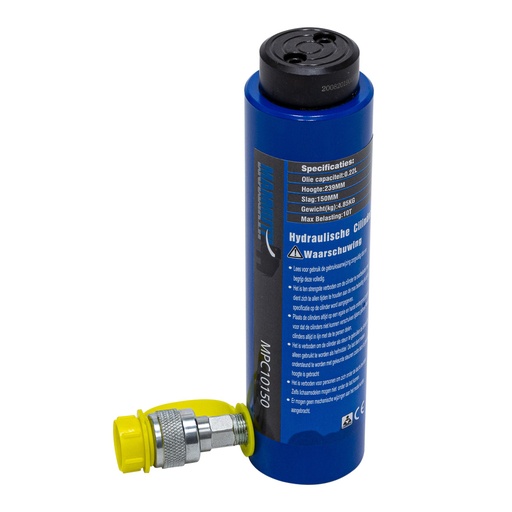

![[MPC10150] Cylinder 10 ton stroke 150mm](/web/image/product.product/49725/image_512/%5BMPC10150%5D%20Cylinder%2010%20ton%20stroke%20150mm?unique=3a66ac6)

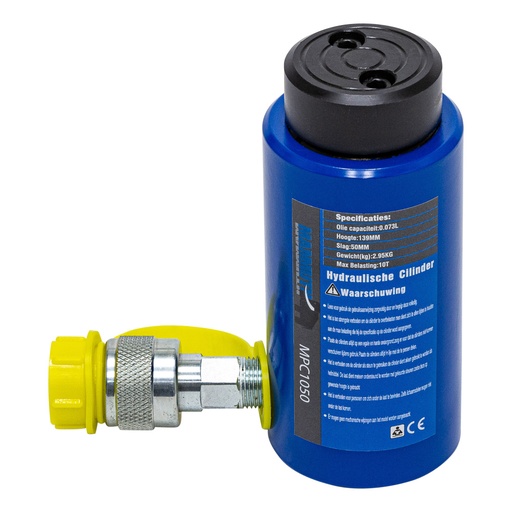

![[MPC1050] Cylinder 10 ton stroke 50mm](/web/image/product.product/49726/image_512/%5BMPC1050%5D%20Cylinder%2010%20ton%20stroke%2050mm?unique=8b8266a)

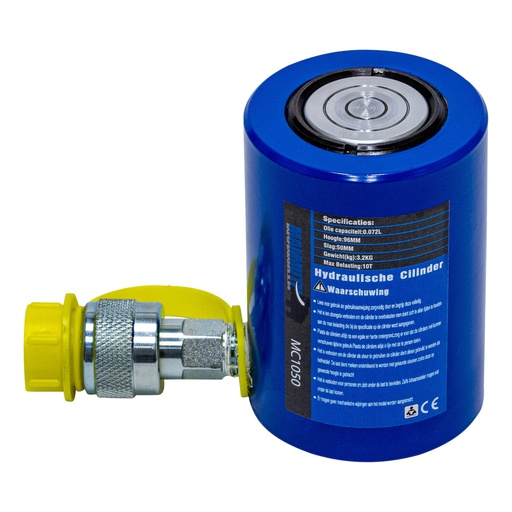

![[MC1050] Cylinder 10 ton stroke 50mm](/web/image/product.product/51962/image_512/%5BMC1050%5D%20Cylinder%2010%20ton%20stroke%2050mm?unique=569fcd1)

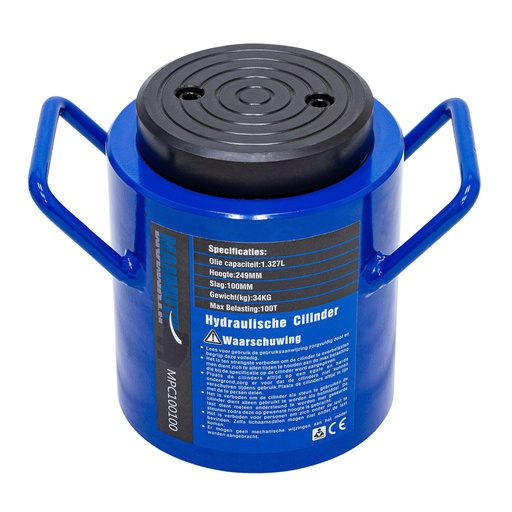

![[MPC100100] Cylinder 100 ton stroke 100mm](/web/image/product.product/51898/image_512/%5BMPC100100%5D%20Cylinder%20100%20ton%20stroke%20100mm?unique=c56dc3f)

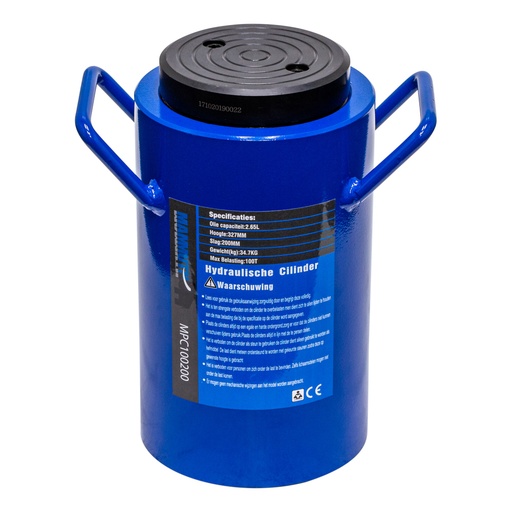

![[MPC100200] Cylinder 100 ton stroke 200mm](/web/image/product.product/51939/image_512/%5BMPC100200%5D%20Cylinder%20100%20ton%20stroke%20200mm?unique=17efe84)

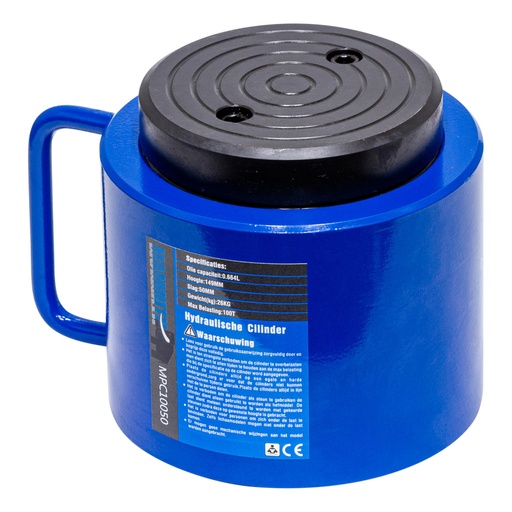

![[MPC10050] Cylinder 100 ton stroke 50mm](/web/image/product.product/51899/image_512/%5BMPC10050%5D%20Cylinder%20100%20ton%20stroke%2050mm?unique=f1bf322)

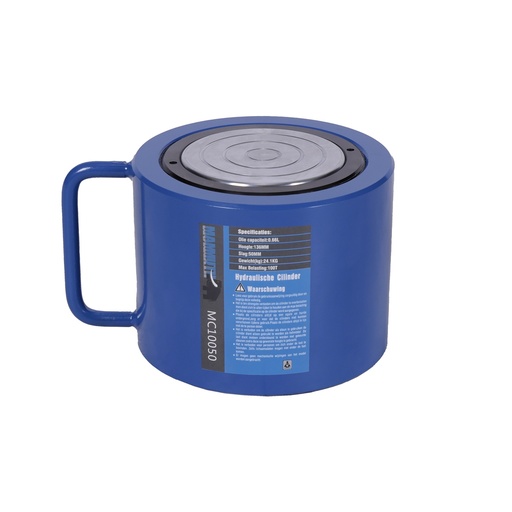

![[MC10050] Cylinder 100 ton stroke 50mm](/web/image/product.product/49700/image_512/%5BMC10050%5D%20Cylinder%20100%20ton%20stroke%2050mm?unique=e428bcb)

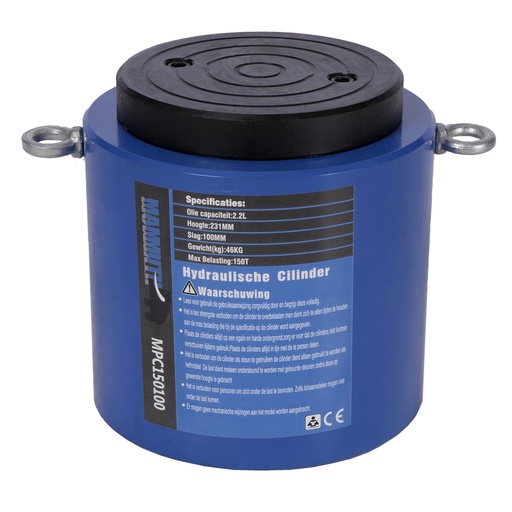

![[MPC150100] Cylinder 150 ton stroke 100mm](/web/image/product.product/51969/image_512/%5BMPC150100%5D%20Cylinder%20150%20ton%20stroke%20100mm?unique=8de688e)
![[MPC150150] Cylinder 150 ton stroke 150mm](/web/image/product.product/51967/image_512/%5BMPC150150%5D%20Cylinder%20150%20ton%20stroke%20150mm?unique=ff11280)

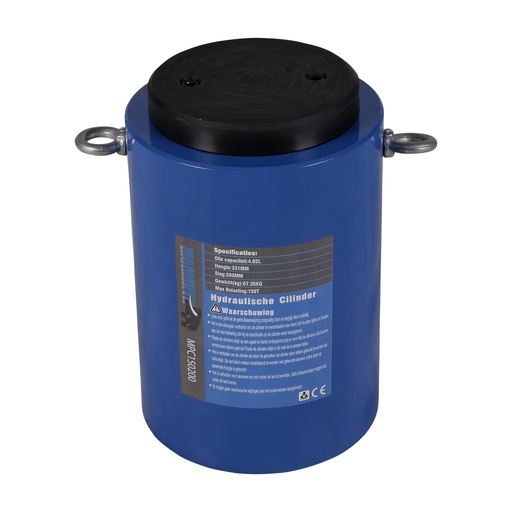

![[MPC150200] Cylinder 150 ton stroke 200mm](/web/image/product.product/48687/image_512/%5BMPC150200%5D%20Cylinder%20150%20ton%20stroke%20200mm?unique=3bae25d)

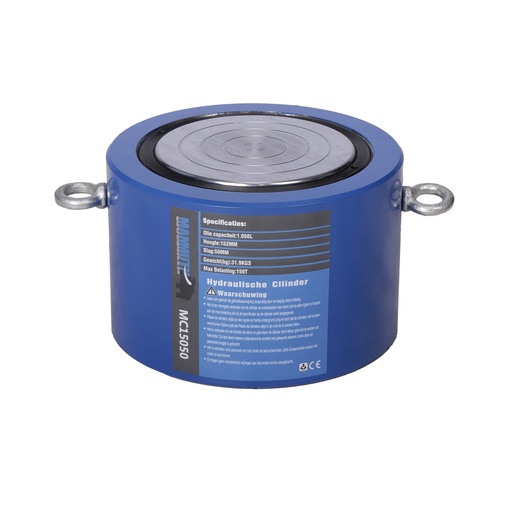

![[MC15050] Cylinder 150 ton stroke 50mm](/web/image/product.product/49702/image_512/%5BMC15050%5D%20Cylinder%20150%20ton%20stroke%2050mm?unique=d929995)
![[MPC20100] Cylinder 20 ton stroke 100mm](/web/image/product.product/49730/image_512/%5BMPC20100%5D%20Cylinder%2020%20ton%20stroke%20100mm?unique=3bae25d)

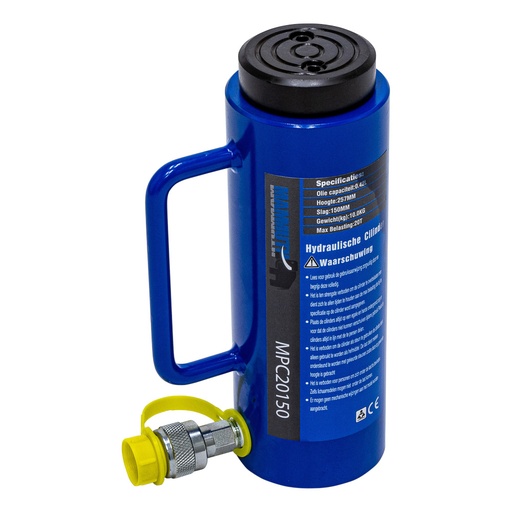

![[MPC20150] Cylinder 20 ton stroke 150mm](/web/image/product.product/49245/image_512/%5BMPC20150%5D%20Cylinder%2020%20ton%20stroke%20150mm?unique=f3c691d)

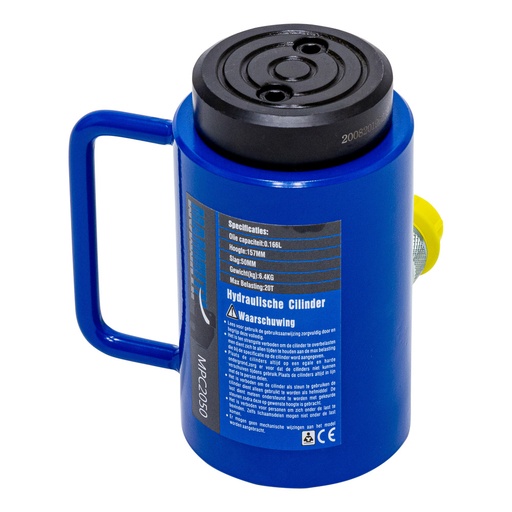

![[MPC2050] Cylinder 20 ton stroke 50mm](/web/image/product.product/51900/image_512/%5BMPC2050%5D%20Cylinder%2020%20ton%20stroke%2050mm?unique=3bae25d)

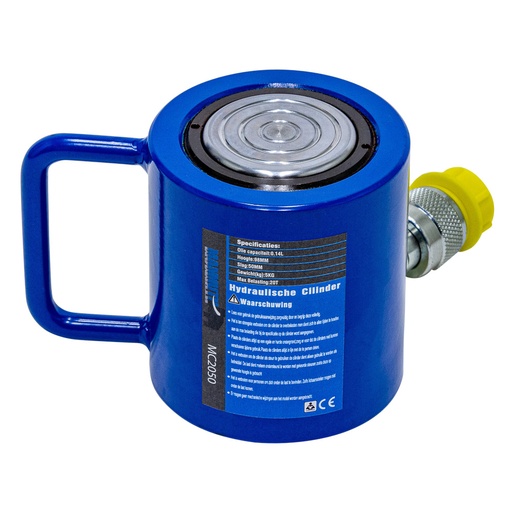

![[MC2050] Cylinder 20 ton stroke 50mm](/web/image/product.product/51882/image_512/%5BMC2050%5D%20Cylinder%2020%20ton%20stroke%2050mm?unique=3bae25d)

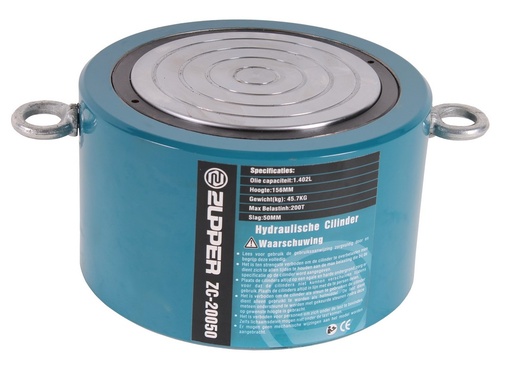

![[MC20050] Cylinder 200 ton stroke 50mm](/web/image/product.product/49703/image_512/%5BMC20050%5D%20Cylinder%20200%20ton%20stroke%2050mm?unique=d33c89e)
![[MPC20050] Cylinder 200 ton stroke 50mm](/web/image/product.product/49729/image_512/%5BMPC20050%5D%20Cylinder%20200%20ton%20stroke%2050mm?unique=3bae25d)

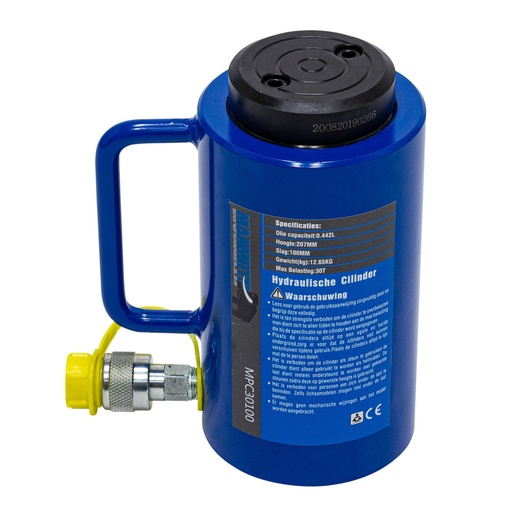

![[MPC30100] Cylinder 30 ton stroke 100mm](/web/image/product.product/51902/image_512/%5BMPC30100%5D%20Cylinder%2030%20ton%20stroke%20100mm?unique=3bae25d)

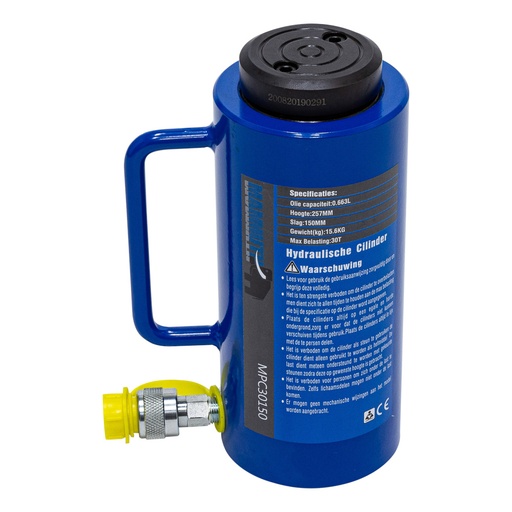

![[MPC30150] Cylinder 30 ton stroke 150mm](/web/image/product.product/51903/image_512/%5BMPC30150%5D%20Cylinder%2030%20ton%20stroke%20150mm?unique=3bae25d)

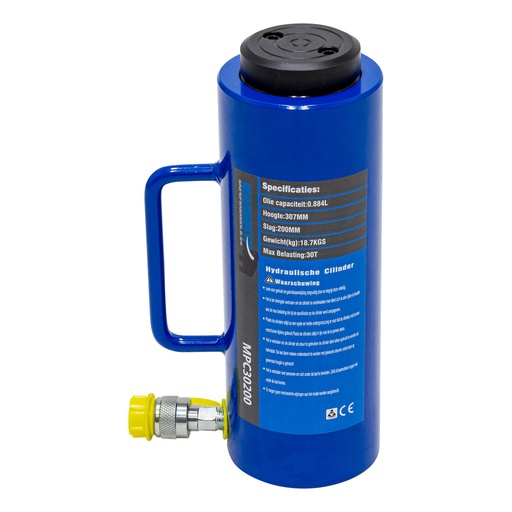

![[MPC30200] Cylinder 30 ton stroke 200mm](/web/image/product.product/49733/image_512/%5BMPC30200%5D%20Cylinder%2030%20ton%20stroke%20200mm?unique=3bae25d)

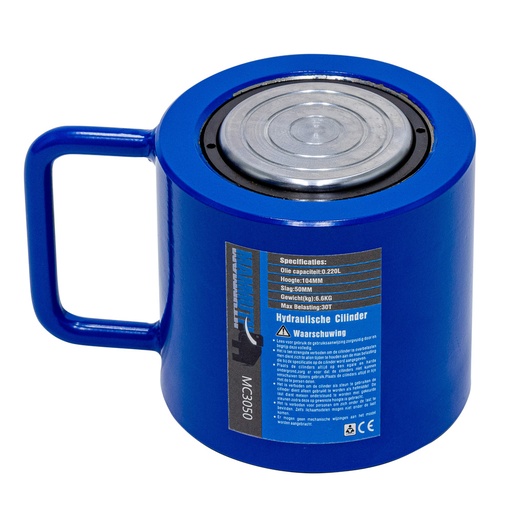

![[MC3050] Cylinder 30 ton stroke 50mm](/web/image/product.product/51883/image_512/%5BMC3050%5D%20Cylinder%2030%20ton%20stroke%2050mm?unique=3bae25d)

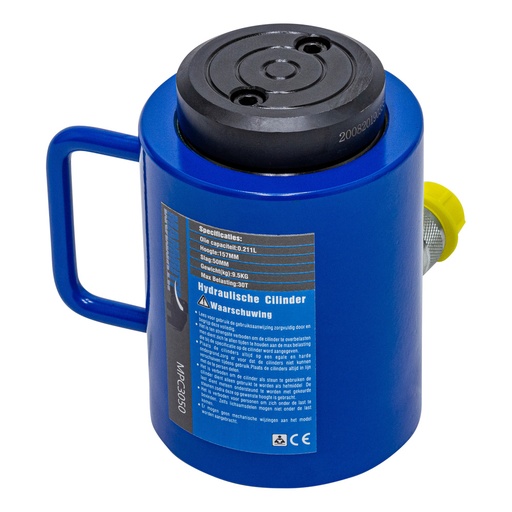

![[MPC3050] Cylinder 30 ton stroke 50mm](/web/image/product.product/51904/image_512/%5BMPC3050%5D%20Cylinder%2030%20ton%20stroke%2050mm?unique=5242012)

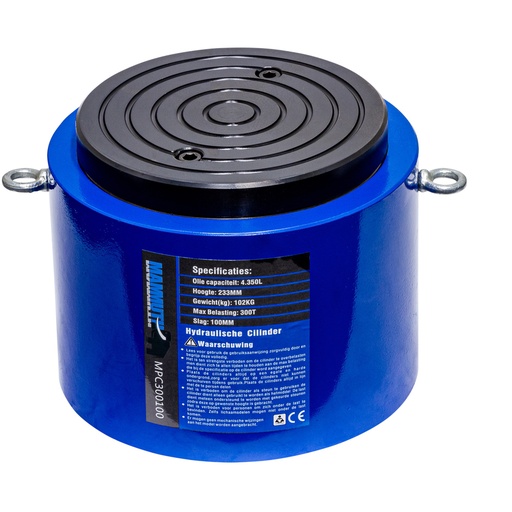

![[MPC300100] Cylinder 300 ton stroke 100mm](/web/image/product.product/51901/image_512/%5BMPC300100%5D%20Cylinder%20300%20ton%20stroke%20100mm?unique=c568169)

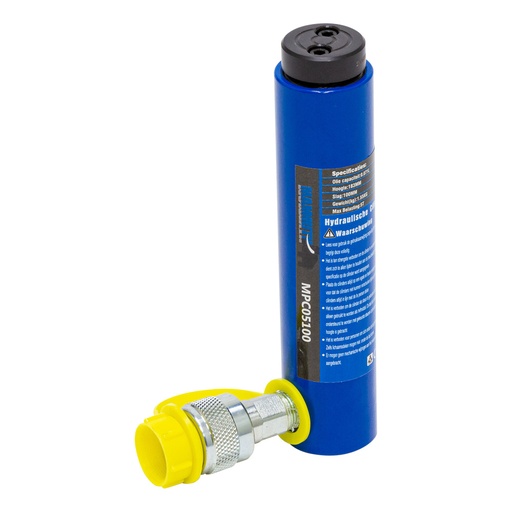

![[MPC05100] Cylinder 5 ton stroke 100mm](/web/image/product.product/49720/image_512/%5BMPC05100%5D%20Cylinder%205%20ton%20stroke%20100mm?unique=3bae25d)

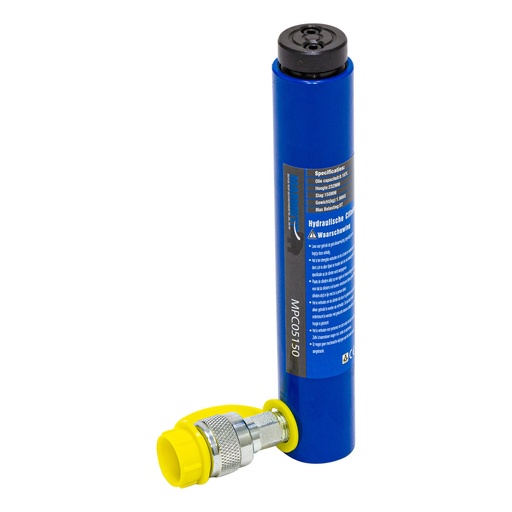

![[MPC05150] Cylinder 5 ton stroke 150mm](/web/image/product.product/51965/image_512/%5BMPC05150%5D%20Cylinder%205%20ton%20stroke%20150mm?unique=c52598a)

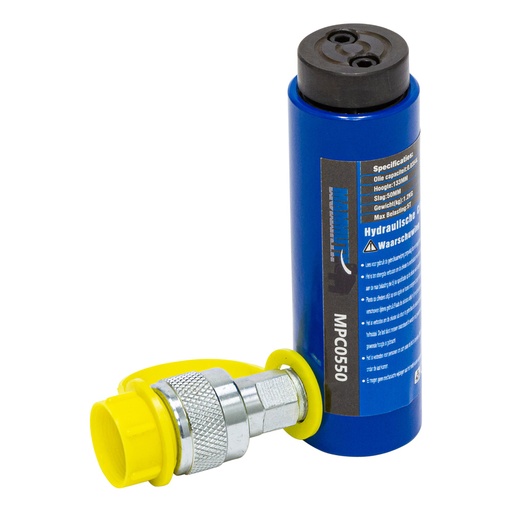

![[MPC0550] Cylinder 5 ton stroke 50mm](/web/image/product.product/49721/image_512/%5BMPC0550%5D%20Cylinder%205%20ton%20stroke%2050mm?unique=5720a0d)

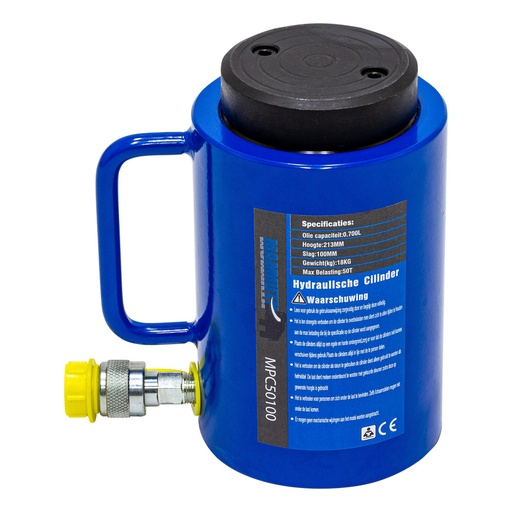

![[MPC50100] Cylinder 50 ton stroke 100mm](/web/image/product.product/51968/image_512/%5BMPC50100%5D%20Cylinder%2050%20ton%20stroke%20100mm?unique=3bae25d)

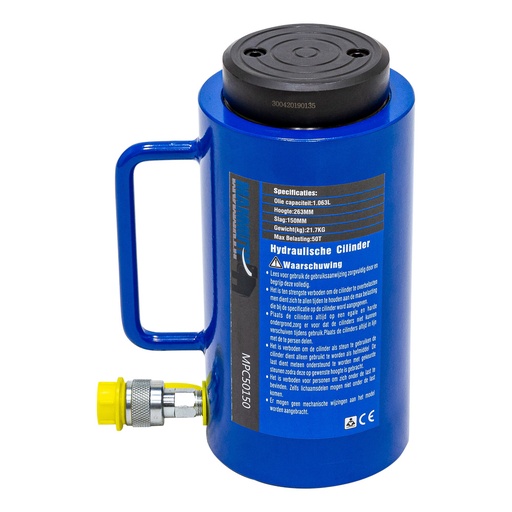

![[MPC50150] Cylinder 50 ton stroke 150mm](/web/image/product.product/51905/image_512/%5BMPC50150%5D%20Cylinder%2050%20ton%20stroke%20150mm?unique=3bae25d)

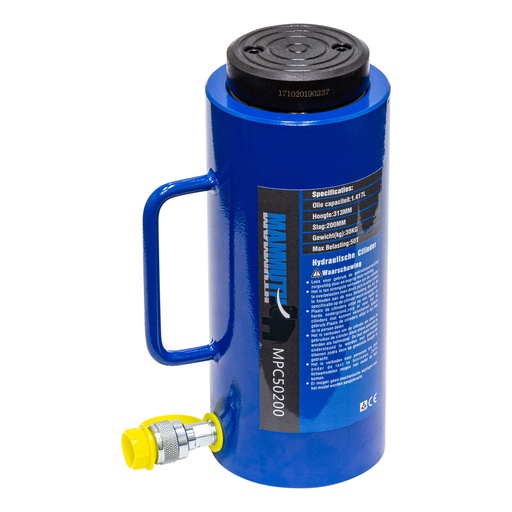

![[MPC50200] Cylinder 50 ton stroke 200mm](/web/image/product.product/49737/image_512/%5BMPC50200%5D%20Cylinder%2050%20ton%20stroke%20200mm?unique=3bae25d)

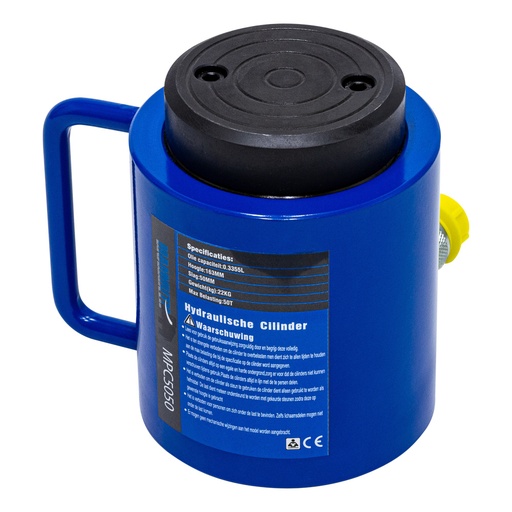

![[MPC5050] Cylinder 50 ton stroke 50mm](/web/image/product.product/48759/image_512/%5BMPC5050%5D%20Cylinder%2050%20ton%20stroke%2050mm?unique=606674a)

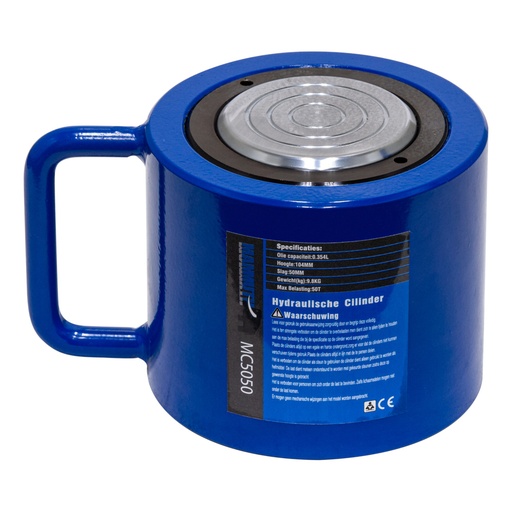

![[MC5050] Cylinder 50 ton stroke 50mm](/web/image/product.product/51963/image_512/%5BMC5050%5D%20Cylinder%2050%20ton%20stroke%2050mm?unique=a09aed6)

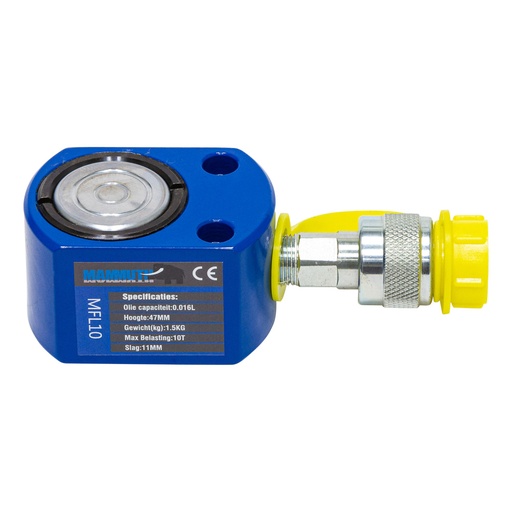

![[MFL10] Flat cylinder 10 ton stroke 11mm](/web/image/product.product/52030/image_512/%5BMFL10%5D%20Flat%20cylinder%2010%20ton%20stroke%2011mm?unique=3bae25d)

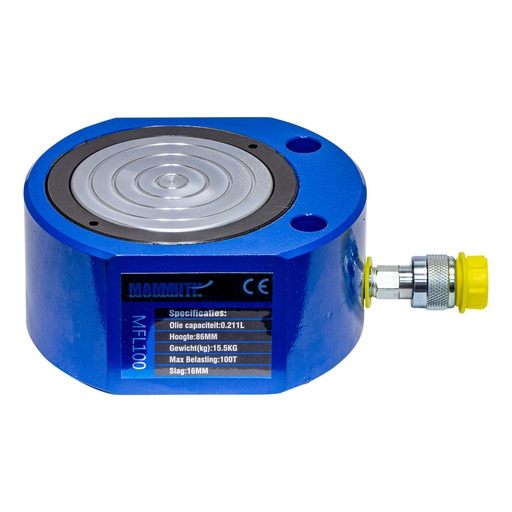

![[MFL100] Flat cylinder 100 ton stroke 16mm](/web/image/product.product/51964/image_512/%5BMFL100%5D%20Flat%20cylinder%20100%20ton%20stroke%2016mm?unique=3bae25d)

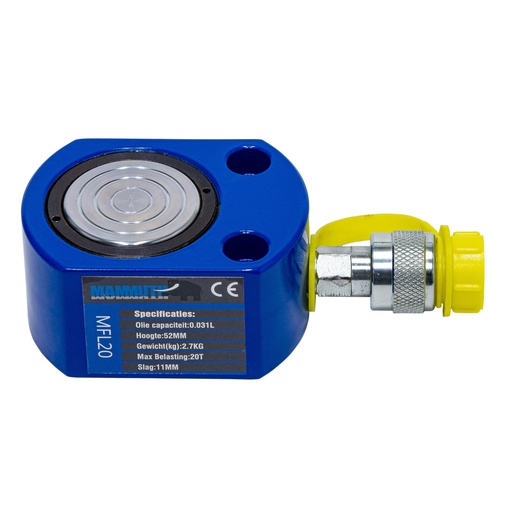

![[MFL20] Flat cylinder 20 ton stroke 11mm](/web/image/product.product/51886/image_512/%5BMFL20%5D%20Flat%20cylinder%2020%20ton%20stroke%2011mm?unique=3bae25d)

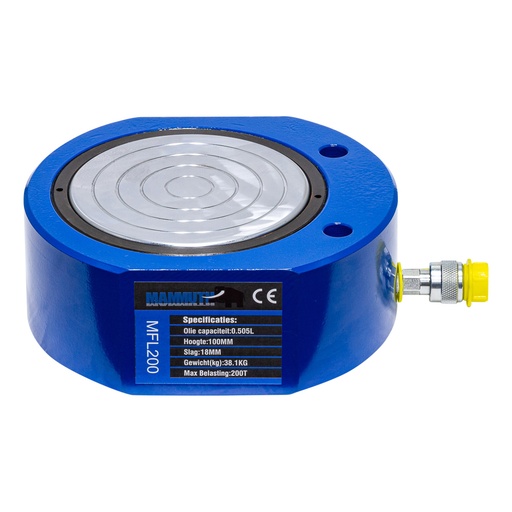

![[MFL200] Flat cylinder 200 ton stroke 18mm](/web/image/product.product/49712/image_512/%5BMFL200%5D%20Flat%20cylinder%20200%20ton%20stroke%2018mm?unique=691a6bb)

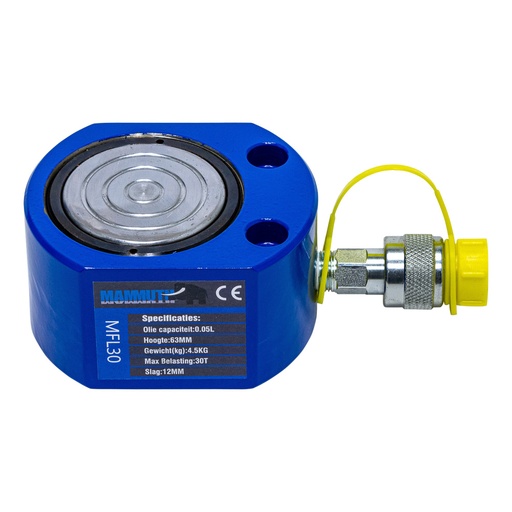

![[MFL30] Flat cylinder 30 ton stroke 12mm](/web/image/product.product/51888/image_512/%5BMFL30%5D%20Flat%20cylinder%2030%20ton%20stroke%2012mm?unique=f1e920f)

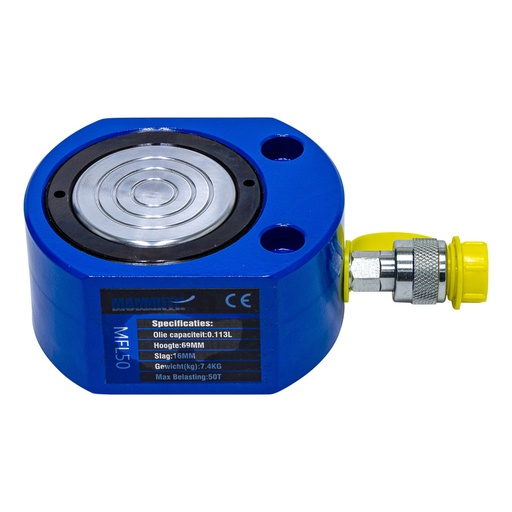

![[MFL50] Flat cylinder 50 ton stroke 16mm](/web/image/product.product/51890/image_512/%5BMFL50%5D%20Flat%20cylinder%2050%20ton%20stroke%2016mm%20?unique=3bae25d)

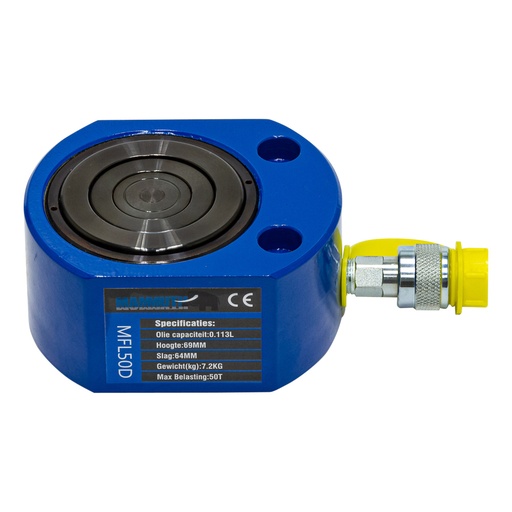

![[MFL50D] Flat cylinder 50 ton stroke 64mm](/web/image/product.product/51891/image_512/%5BMFL50D%5D%20Flat%20cylinder%2050%20ton%20stroke%2064mm%20?unique=3bae25d)

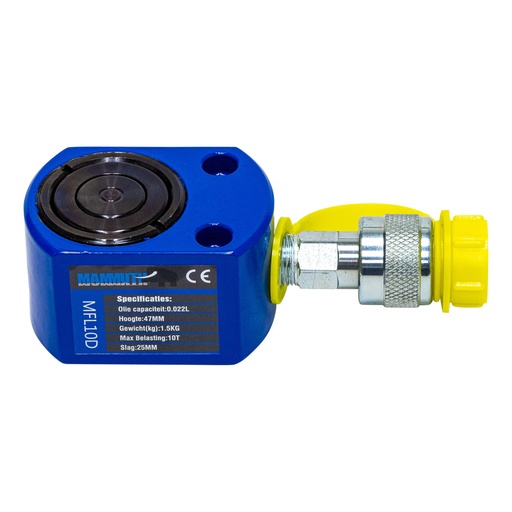

![[MFL10D] Flat cylinder double 10 ton stroke 25mm](/web/image/product.product/51885/image_512/%5BMFL10D%5D%20Flat%20cylinder%20double%2010%20ton%20stroke%2025mm?unique=3bae25d)

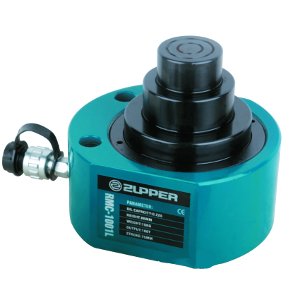

![[MFL100D] Flat cylinder double 100 ton stroke 75mm](/web/image/product.product/51884/image_512/%5BMFL100D%5D%20Flat%20cylinder%20double%20100%20ton%20stroke%2075mm?unique=3bae25d)

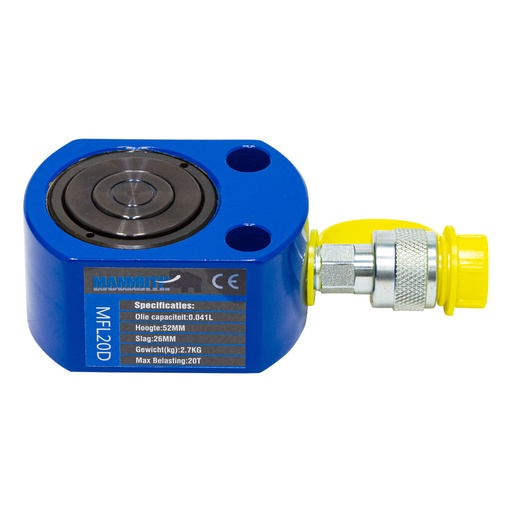

![[MFL20D] Flat cylinder double 20 ton stroke 26mm](/web/image/product.product/51887/image_512/%5BMFL20D%5D%20Flat%20cylinder%20double%2020%20ton%20stroke%2026mm?unique=3bae25d)

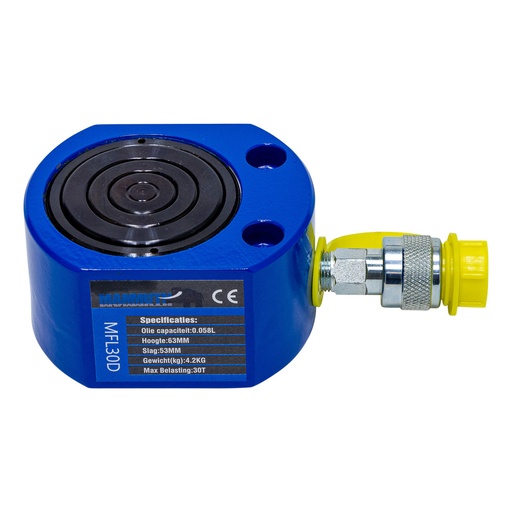

![[MFL30D] Flat cylinder double 30 ton stroke 53mm](/web/image/product.product/51889/image_512/%5BMFL30D%5D%20Flat%20cylinder%20double%2030%20ton%20stroke%2053mm?unique=3bae25d)

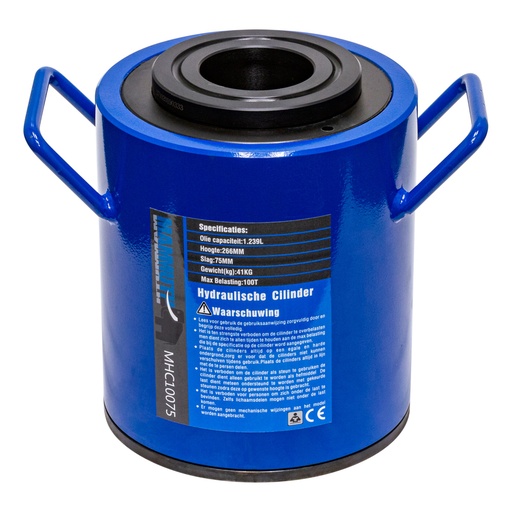

![[MHC10075] Hollow cylinder 100 ton stroke 75mm](/web/image/product.product/51892/image_512/%5BMHC10075%5D%20Hollow%20cylinder%20100%20ton%20stroke%2075mm?unique=f6c234e)

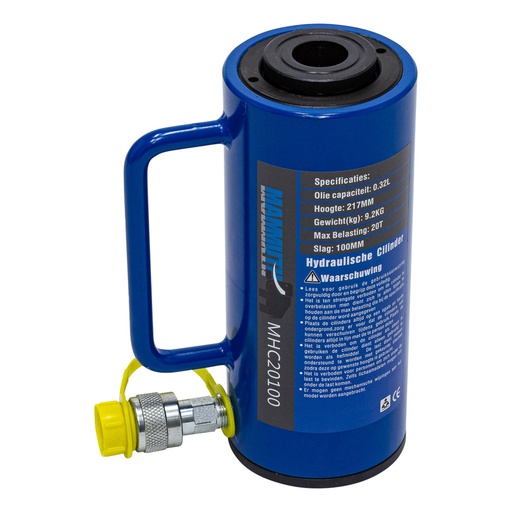

![[MHC20100] Hollow cylinder 20 ton stroke 100mm](/web/image/product.product/52031/image_512/%5BMHC20100%5D%20Hollow%20cylinder%2020%20ton%20stroke%20100mm?unique=d8d38d2)

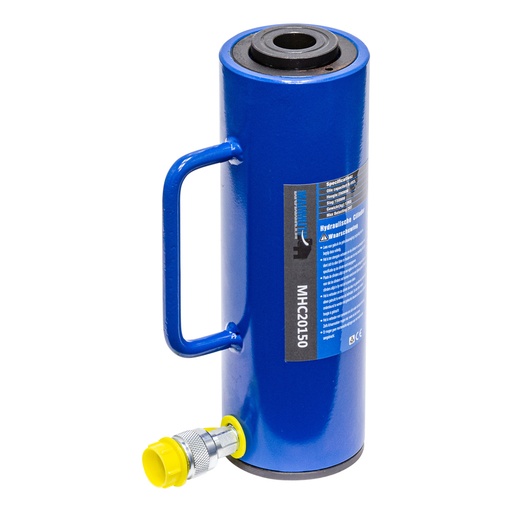

![[MHC20150] Hollow cylinder 20 ton stroke 150mm](/web/image/product.product/55338/image_512/%5BMHC20150%5D%20Hollow%20cylinder%2020%20ton%20stroke%20150mm?unique=29a08e8)

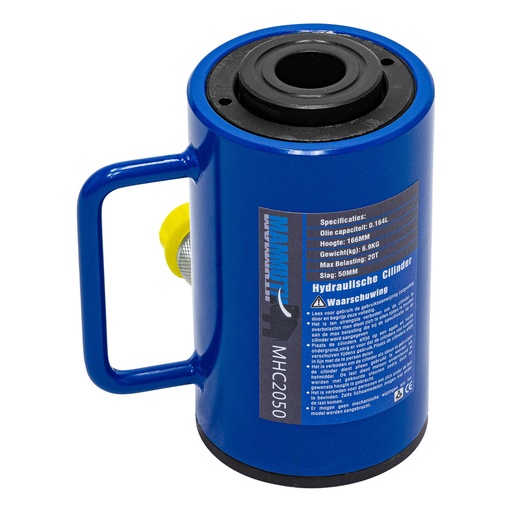

![[MHC2050] Hollow cylinder 20 ton stroke 50mm](/web/image/product.product/51893/image_512/%5BMHC2050%5D%20Hollow%20cylinder%2020%20ton%20stroke%2050mm?unique=3bae25d)

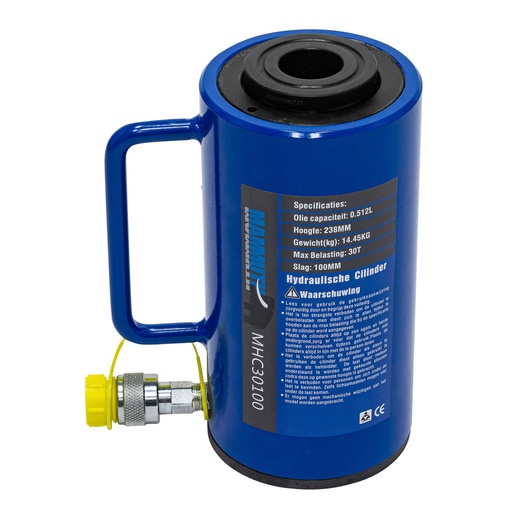

![[MHC30100] Hollow cylinder 30 ton stroke 100mm](/web/image/product.product/51894/image_512/%5BMHC30100%5D%20Hollow%20cylinder%2030%20ton%20stroke%20100mm?unique=3bae25d)

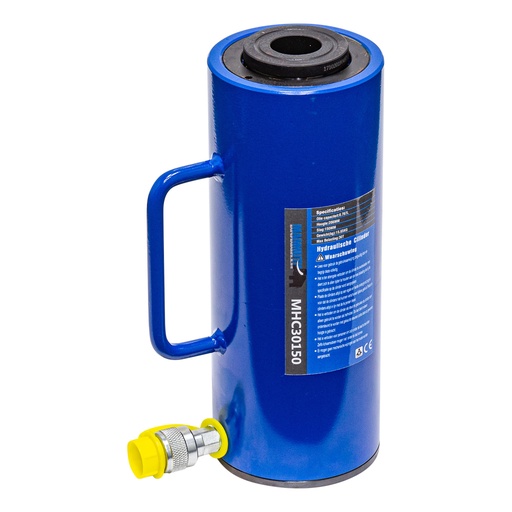

![[MHC30150] Hollow cylinder 30 ton stroke 150mm](/web/image/product.product/55339/image_512/%5BMHC30150%5D%20Hollow%20cylinder%2030%20ton%20stroke%20150mm?unique=5dcbddd)

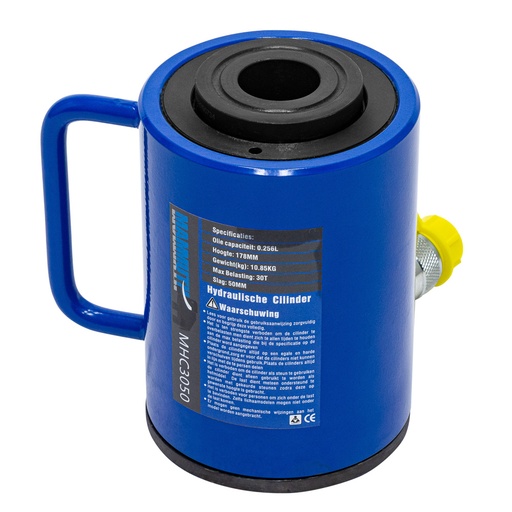

![[MHC3050] Hollow cylinder 30 ton stroke 50mm](/web/image/product.product/51895/image_512/%5BMHC3050%5D%20Hollow%20cylinder%2030%20ton%20stroke%2050mm?unique=3bae25d)

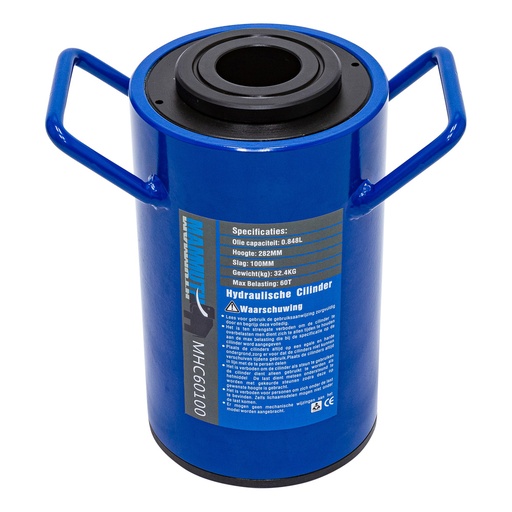

![[MHC60100] Hollow cylinder 60 ton stroke 100mm](/web/image/product.product/51896/image_512/%5BMHC60100%5D%20Hollow%20cylinder%2060%20ton%20stroke%20100mm?unique=a1dafaa)

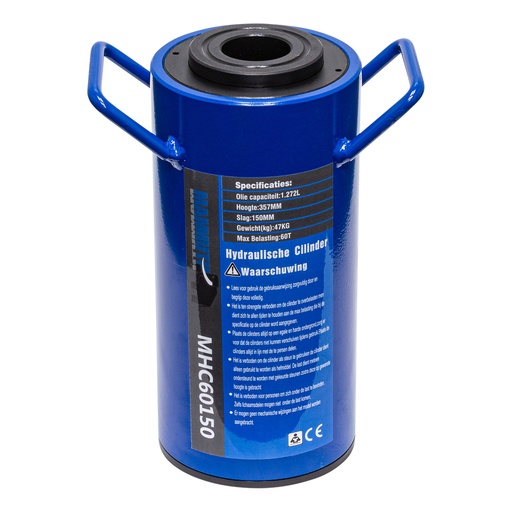

![[MHC60150] Hollow cylinder 60 ton stroke 150mm](/web/image/product.product/55340/image_512/%5BMHC60150%5D%20Hollow%20cylinder%2060%20ton%20stroke%20150mm?unique=3bae25d)

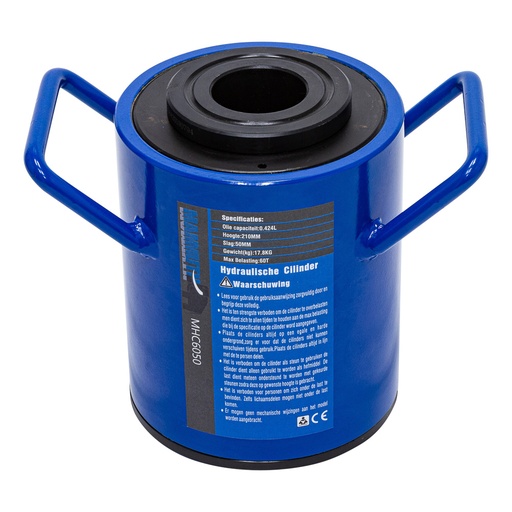

![[MHC6050] Hollow cylinder 60 ton stroke 50mm](/web/image/product.product/51897/image_512/%5BMHC6050%5D%20Hollow%20cylinder%2060%20ton%20stroke%2050mm?unique=3bae25d)
